Chery QQ Service Manual Transmission System

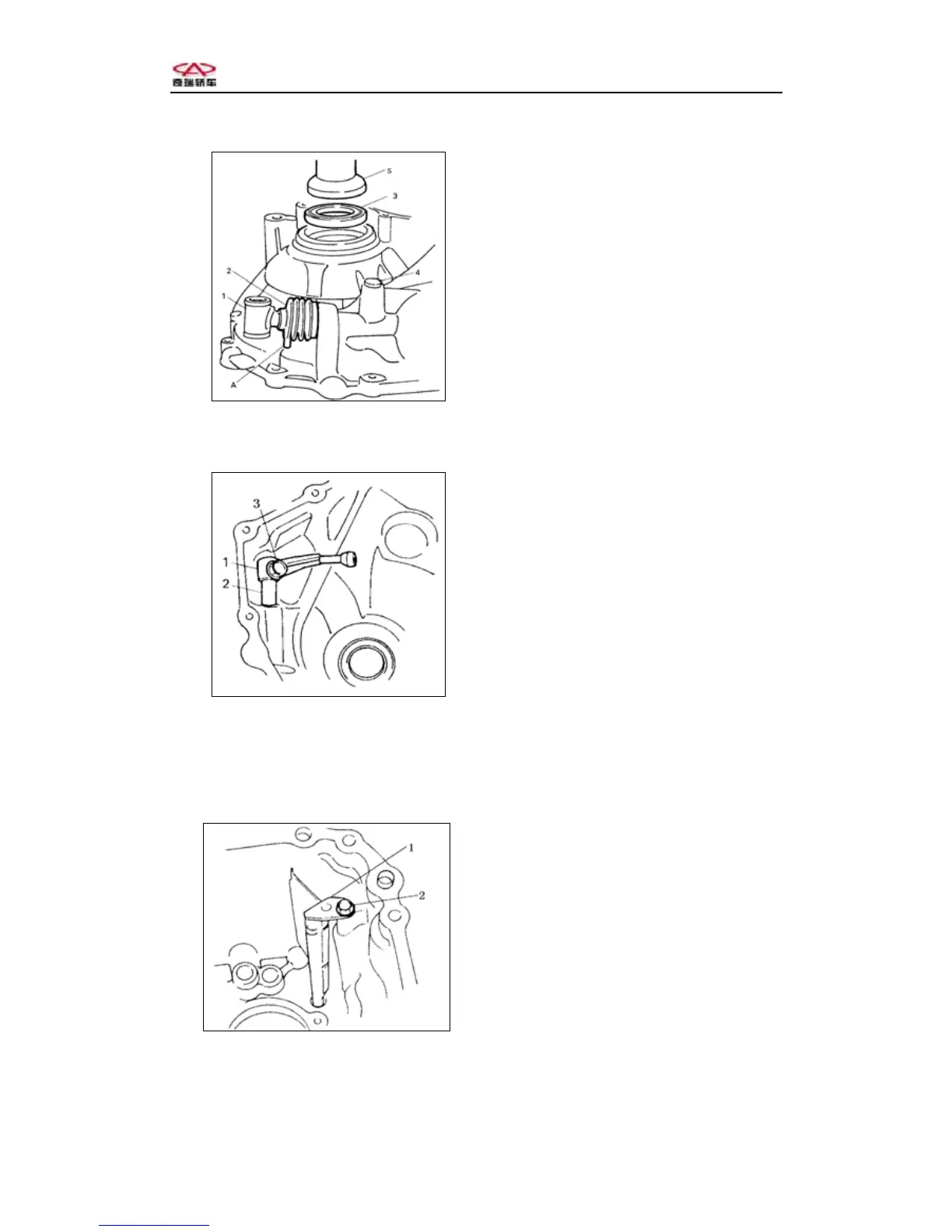

1- Shift lever
2-Oil seal boot
3-Differential right oil seal
4-Shift lever bolt
5-Special tool
A：Blow hole (downward)
Fig.3-59
6, Install the shift head on the shift lever.
Torque：31.5～35.5 N·m
1-Shift head
2-Shift lever
3-Bolt
Fig.3-60
（2）Transmission case
1, If remove the oil guide slot, when re-installing, screw down the torque.
Torque：8～12 N·m
1-Oil guide slo
t
assembly
2
-
Bolt
Fig.3-61
-82-
