CHERY SQR7080 EZ Drive SERVICE MANUAL

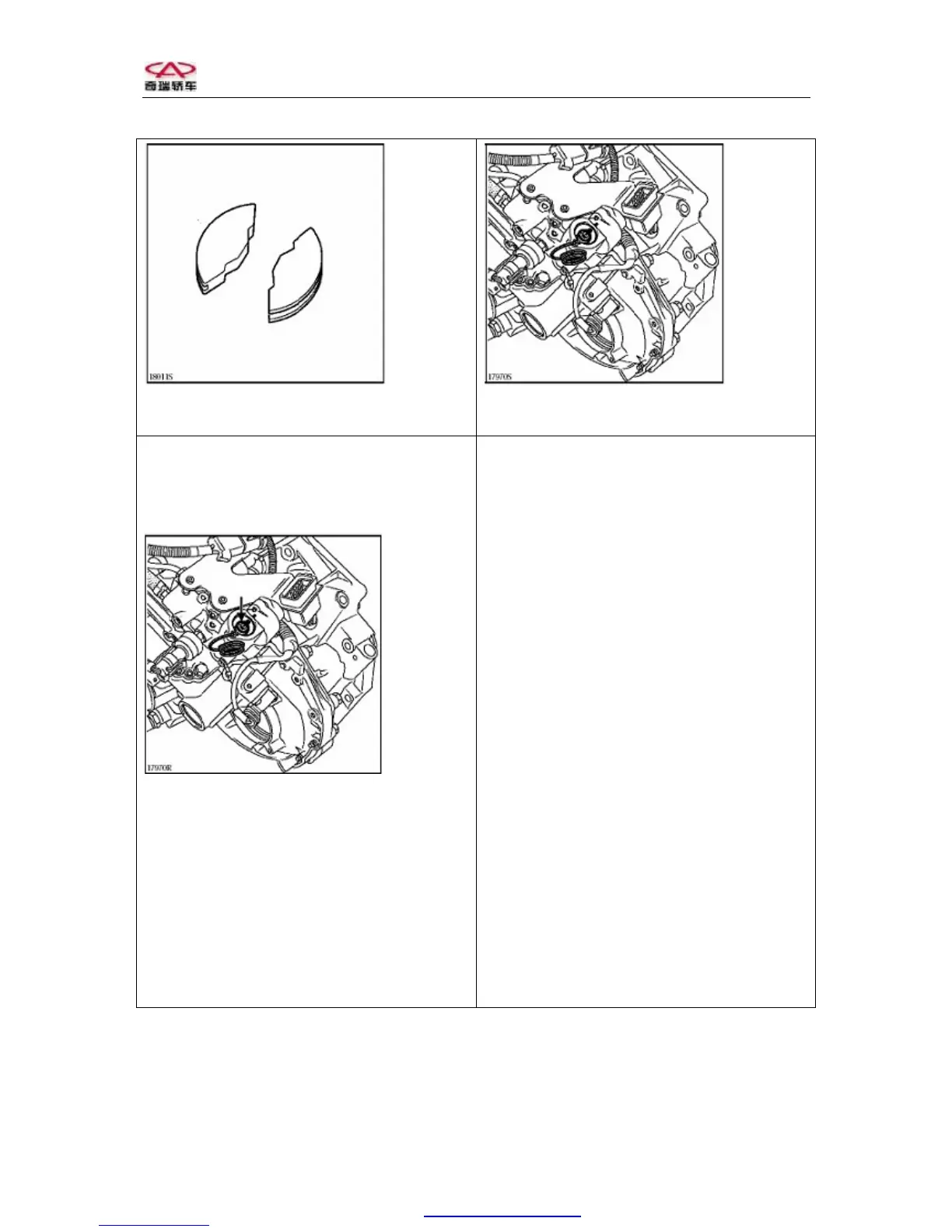

Put two half-moon parts and circlip into the control
shaft groove.
Fix the hydraulic unit onto the transmission by
screwing its fixing bolts.
Hold the control shaft with a screwdriver so as to
lock the drive module.
Connect:
– The bus bar to the drive mechanism
– Fasteners
Remount:
– Control shaft cover (smear grease onto the
washer)
– The transmission support onto the vehicle
body
Remove the engine support MOT.1453's handheld
tool.
It is easy to carry out the following assembly
procedure, which is opposite to the disassembly
procedure.
Fill the ELF RENAULT MATIC D3 SYN
DEXRON oil to the degree that the oil level is 32 to
38 mm higher than the lowest mark line.
Perform the corresponding test by using a special
tool. (Refer to the page 21-36 of section “special
requirements on change of system parts and
components of KIT electrically controlled hydraulic
system”)
Oil filling into oil tank
The mark shown on the oil tank is the lowest
standard.
Carry out the energy storage removal procedure.
Make sure that the oil level is 32 to 38 mm higher
than the lowest mark line.
Important tip:
The oil level will be at the position indicated by the
mark line (MIN) when the energy storage has been
fully inflated (15 seconds after ignition).
