CHERY SQR7080 EZ Drive SERVICE MANUAL
Electromagnetic valve 2:
Removal:
It is necessary to lower the transmission to remove
the clutch electromagnetic valve 2.
Remove:
– Battery
– Air casing
– Electronic injection computer
– Left headlight
– Wheels
– Lamp used to indicate that left wheel is
stuck in mud
– Transmission weight

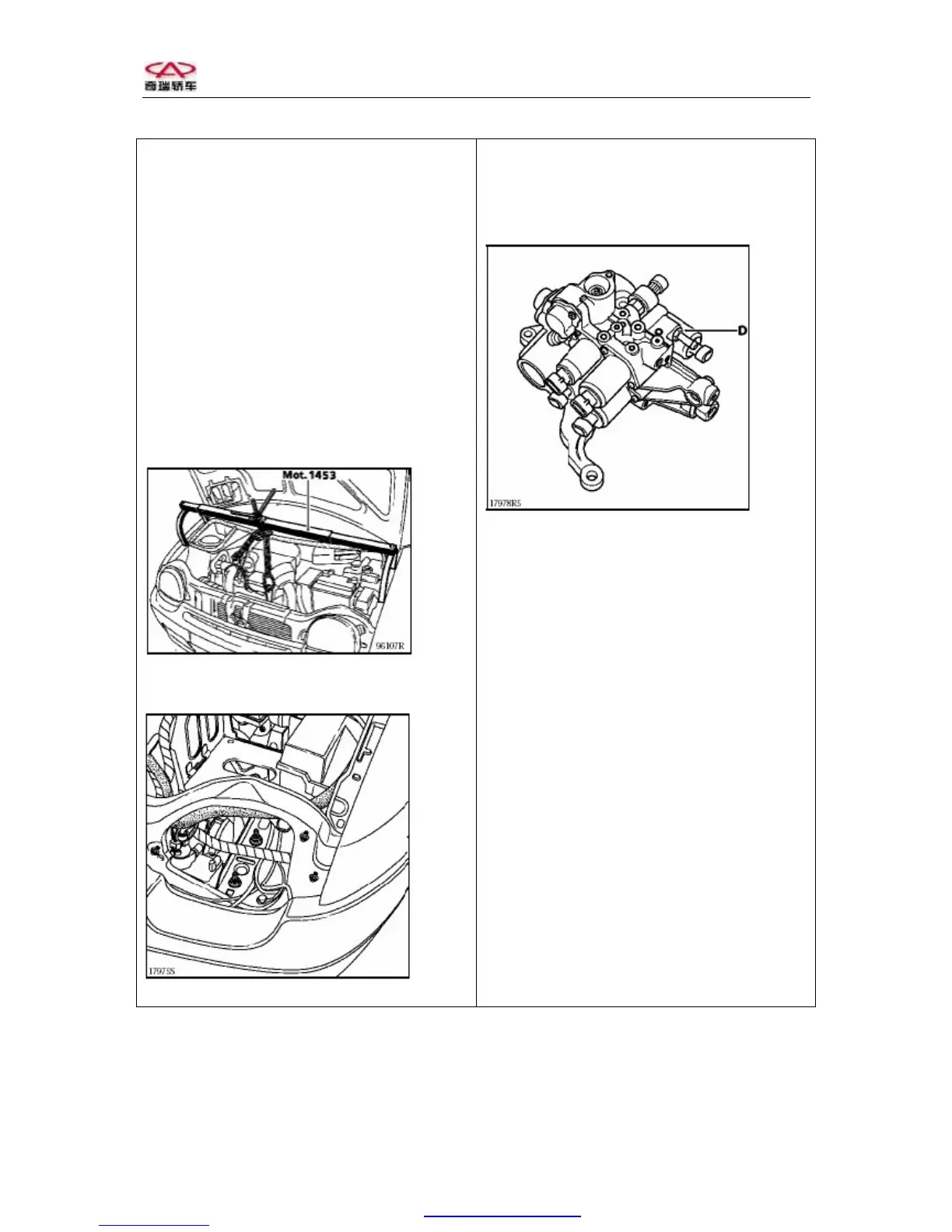

Mount the engine support MOT 1453.
Remove the transmission support connections on
the vehicle body.
Lower the transmission as possible as you can.
Disconnect the related connections for
electromagnetic valves.
Remove the electromagnetic valve 2 (D).
Remounting:
Carry out the remounting procedure that is opposite
to the removal procedure.
Fill the ELF RENAULT MATIC D3 SYN
DEXRON oil to the degree that the oil level is 32 to
38 mm higher than the lowest mark line.
Perform the corresponding test by using a special
tool. (Refer to the page 21-36 of section “special
requirements on change of system parts and
components of KIT electrically controlled hydraulic
system”)
Oil filling into oil tank
The mark shown on the oil tank is the lowest
standard.
Carry out the energy storage removal procedure.
Make sure that the oil level is 32 to 38 mm higher
than the lowest mark line.
Important tip:
The oil level will be at the position indicated by the
mark line (MIN) when the energy storage has been
fully inflated (15 seconds after ignition).
