Chery QQ Service Manual Body System

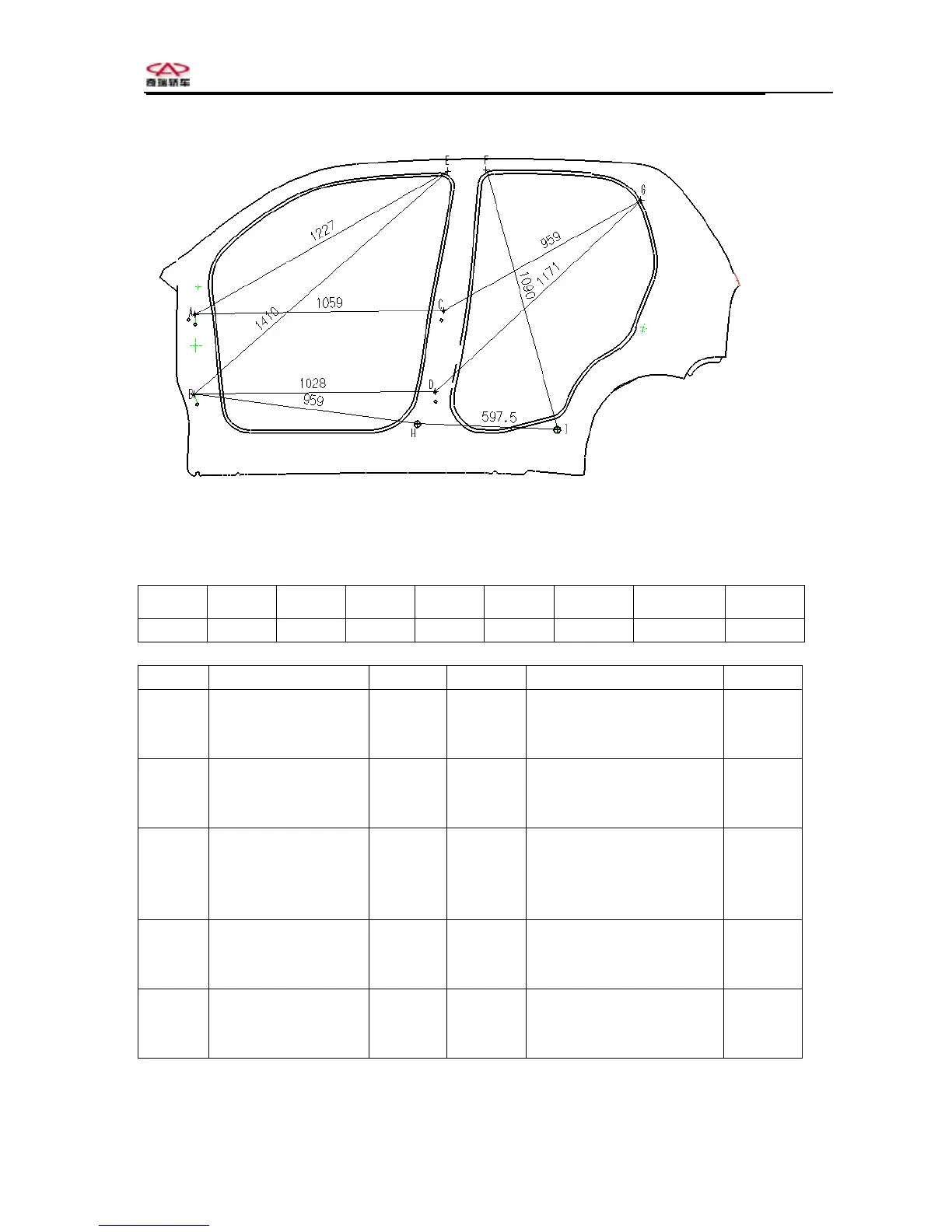

Dimension of vehicle body , Left/Right Remark: Capital letter English alphabet symbol shows
right side of vehicle body , small letter shows left side of vehicle body (See from rear part of
vehicle)
A-a B-b C-c D-d E-e F-f G-g H-h I-i
1323 1365 1356 1356 1049 1045 1137 1368 1363
Symbol Name Aperture Symbol Name Aperture
Aa Front door upper
hinge mounting
hole
11 Ff Sidewall rear door hinge
front upper angular point
Bb Front door lower
hinge mounting
hole
11 Gf Sidewall rear door hinge
rear upper angular point
Cc
Rear door upper
hinge mounting
hole
11 Hh
Front door supporting
point
23
Dd Rear door lower
hinge mounting
hole
11 Ii Rear door supporting
point
28
Ee Sidewall front door
slide upper angular
point
- 39-
