Chery QQ Service Manual Transmission System
-35-

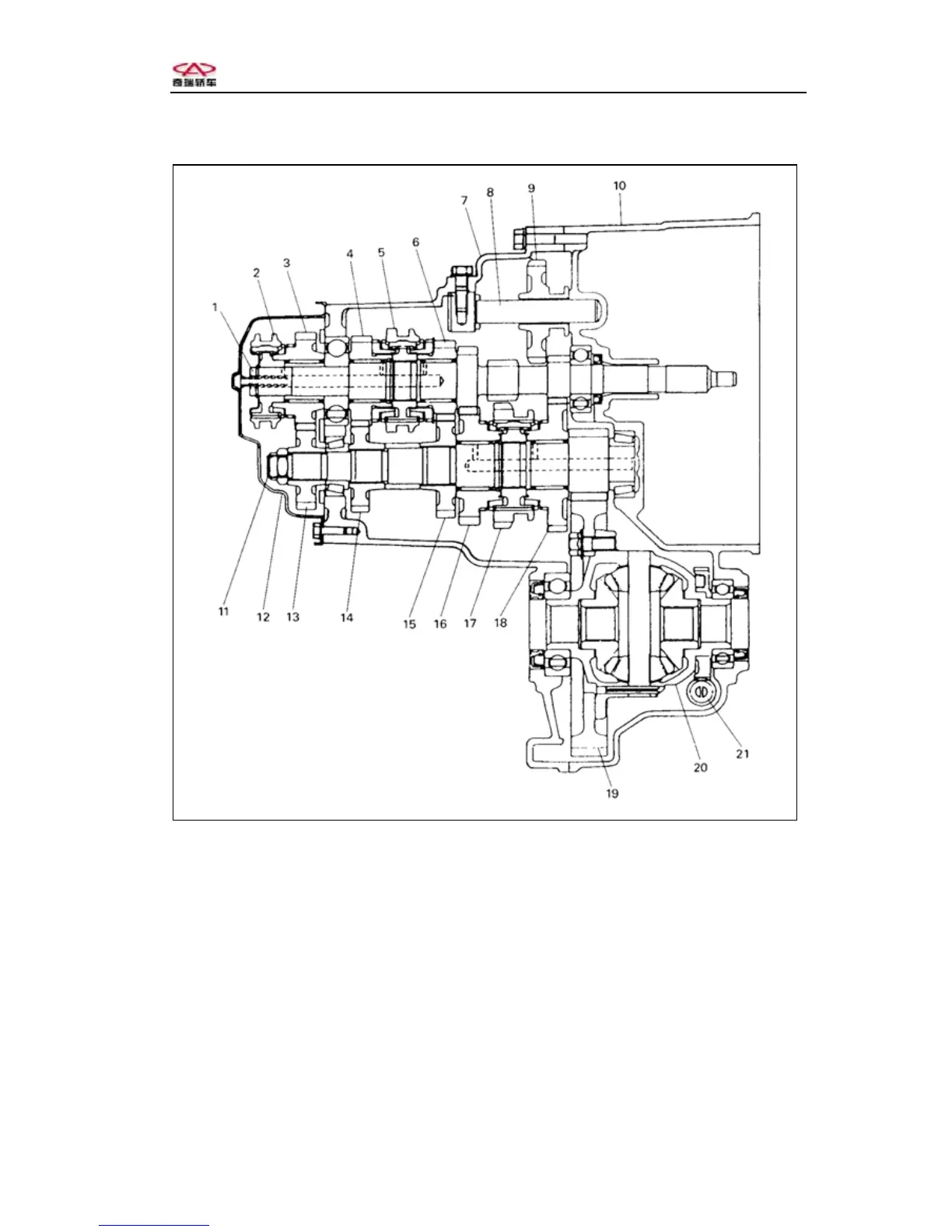

Fig.1-1 Transaxle
1- Input shaft 2- 5th Synchronizer assembly 3- 5th gear 4- 4th gear
5- Synchronizer assembly 6- 3rd gear 7- Transaxle case 8- Reverse gear shaft
9- Reverse gear 10-Clutch case 11- Output shaft 12-Transaxle behind case
13- 5th driven gear 14- 4th driven gear 15- 3rd driven gear 16- 2nd driven gear
17- Synchronizer assembly 18- 1st driven gear 19- Differential ring gear
20- Differential case 21- Speedometer driven gear
