Chery QQ Service Manual Transmission System
-42-

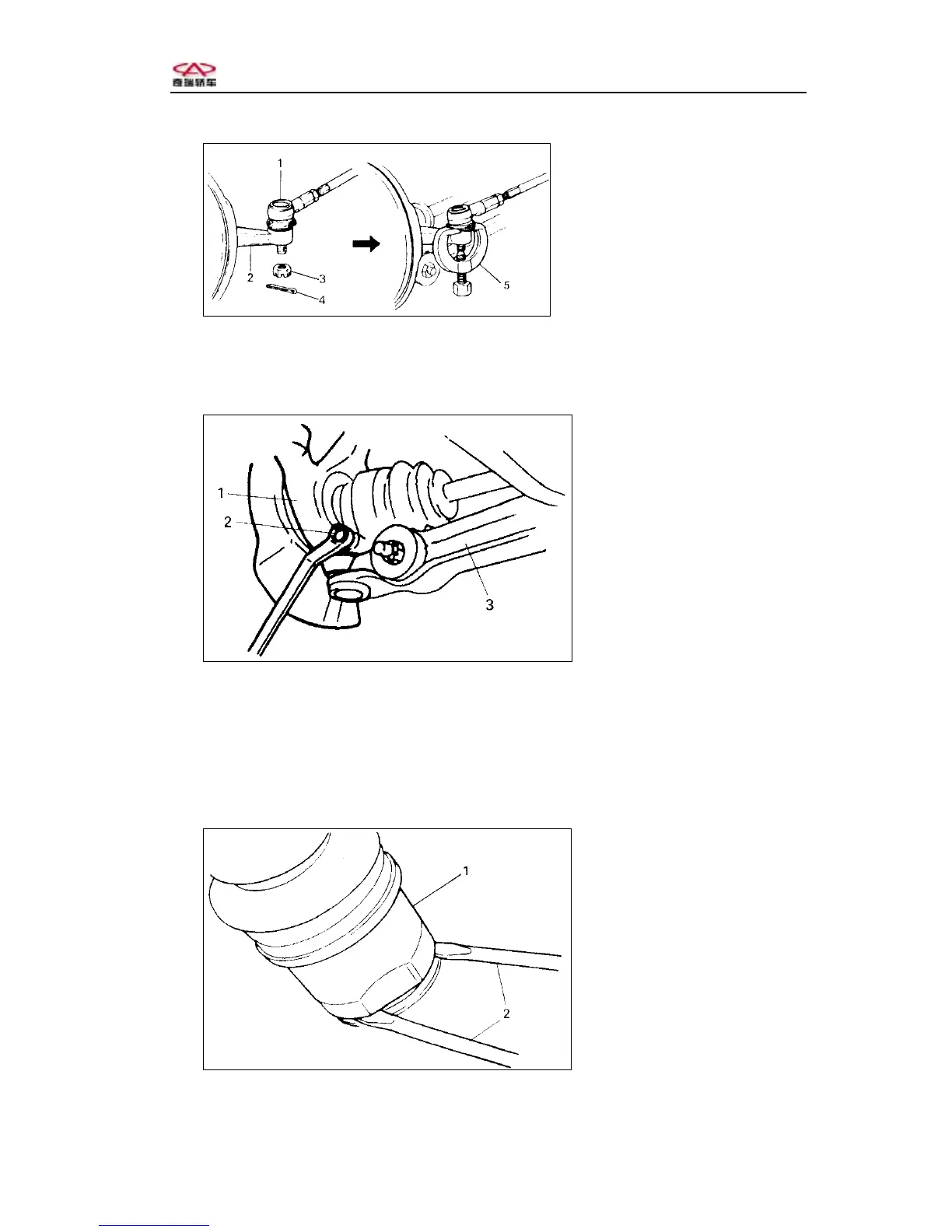

1-The end of Tie rod
2- Steering
3- Lock cap
4- Cotter pin
5-Special tool
Fig.2-2
4.Remove the two brackets.
5.Remove Ball joint bolt and disjoin the Suspension arm from the steering.
1- Steering
2- Ball joint bolt
3- Suspension arm
Fig.2-3
6. Insert a big screwdriver into the connection of the drive shaft to release the
snap ring from the keyway of the differential.
1- Drive shaft
2-Screw driver
Fig.2-4
