Chery QQ Service Manual Transmission System
-44-

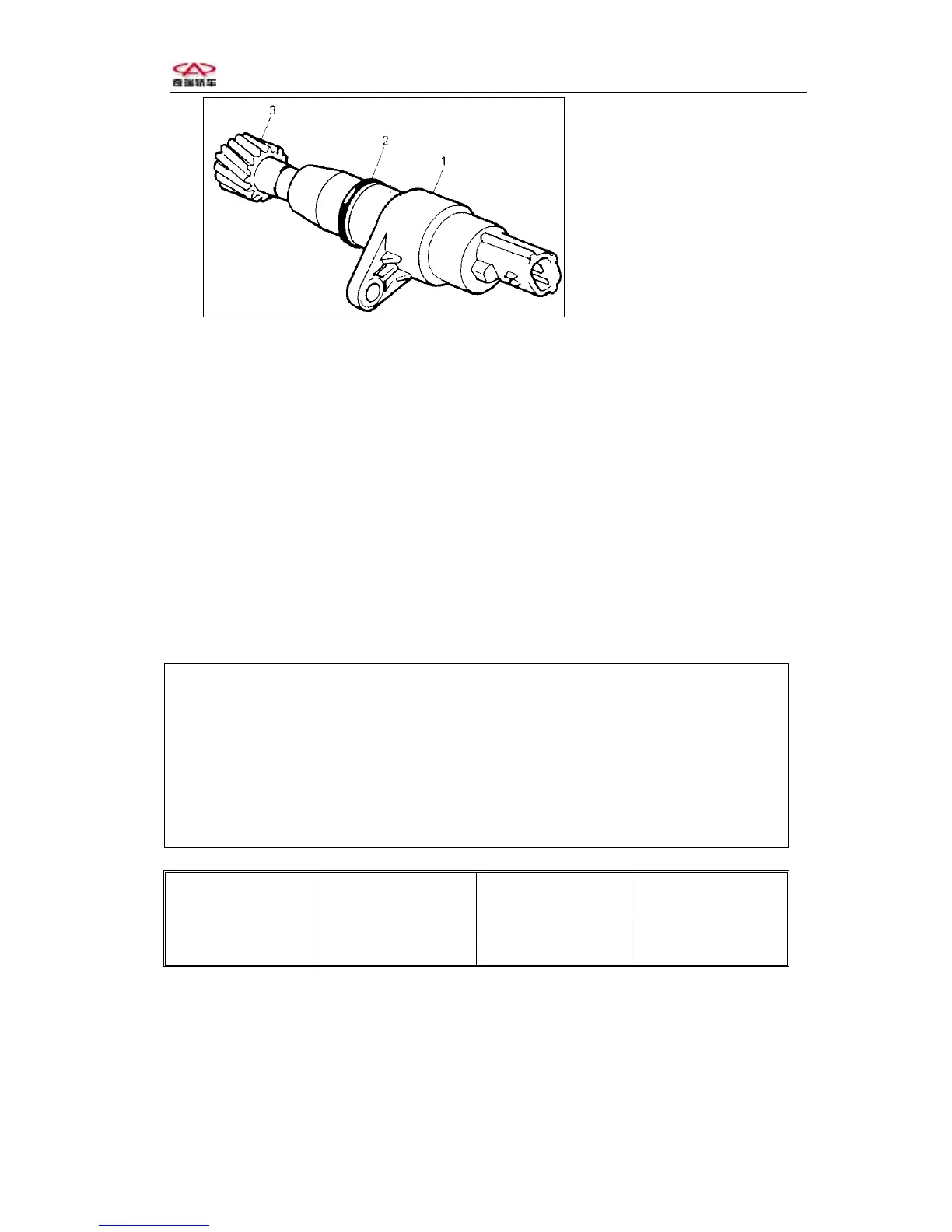

1- Speedometer sensor
2- O-ring
3- Speed meter driven gear
Fig.2-7
5.Use the clamp to fix the plane part of the driven gear box, use professional tools
bearing disassembly tool and puller slide hammer to remove the oil seal.
Installation:
1. Spread lubricant on the new oil seal, keep the spring downwards and put the oil
seal into the box. Use valve guide bushing remover to install.
2. Check the driven gear has been abnormally frayed or distorted. After spreading
lubricant on the driven gear put the fine driven gear into the driven gearbox.
3.Use wood to support driven gearbox, install the slotted spring pin, check if the gear
turns smoothly.
4. Check if there are some lacuna on the O-seal and gearbox. Spread some oil on the
O-seal, and then install the driven gearbox assembly in the transaxle.
5. Connect the speedometer cable, put the gearbox Snap ring and boot on the original
position.
CAUTION:
· Do not press the oil seal excessively, otherwise the oil seal will be
distorted.
·Do not collide the driven gear and the driven gear box.
·When installing the driven gear box assembly into the Transaxle, use small
screwdriver to turn the driven gear till the driven gear joggle.
·When installing the driven gear box into the transaxle, the gear box is
now allowed to be collided.
N·m kg·m 1b—ft
Screw the gear ox
bolt tightly.
4-7 0.4-0.7 3.0-5.0
