• Chery QQ Service Manual Transmission System

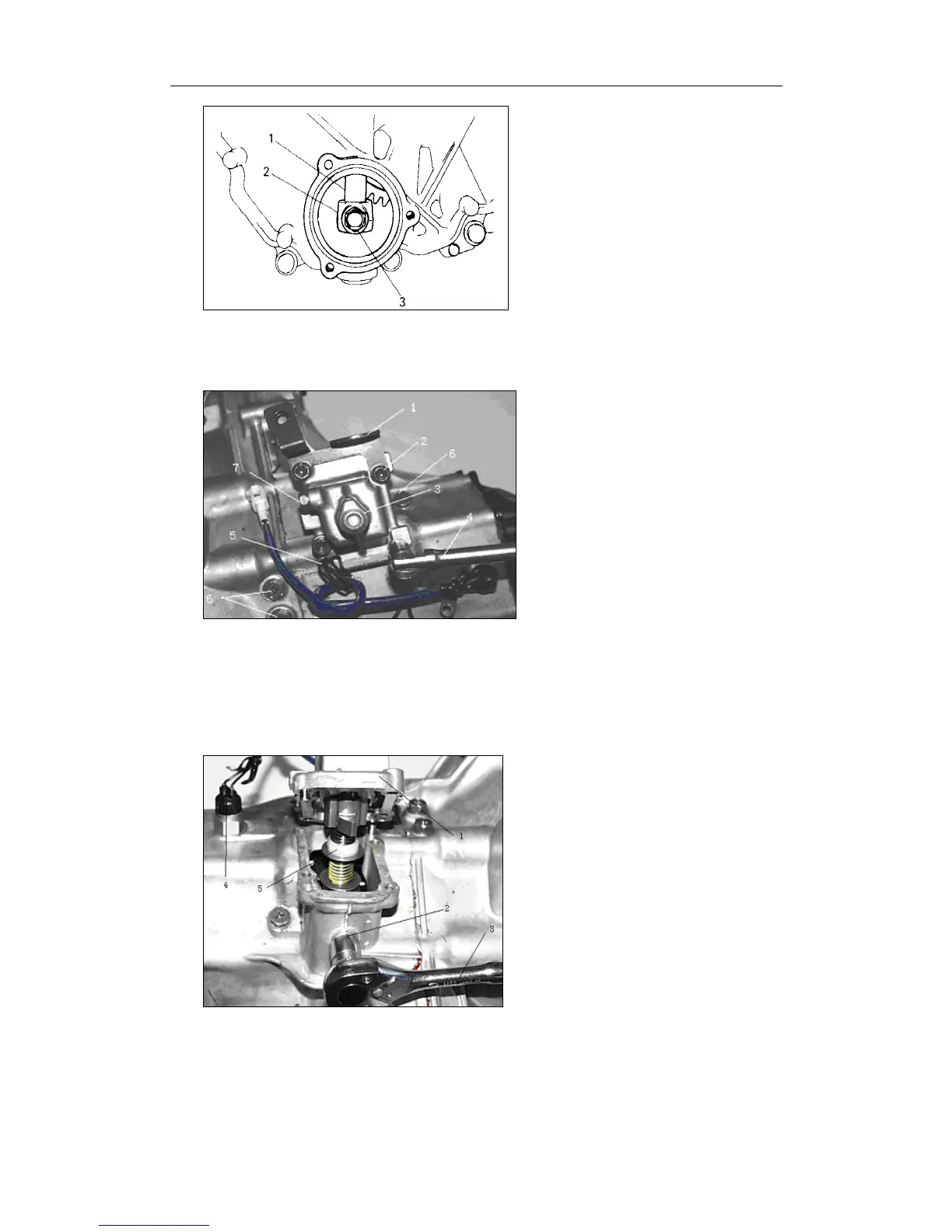

1- Shift and select lever shaft
2- Shift and select lever shaft fork
3- Bolt
Fig.3-7
3 Remove the 3 shift fork shaft bolt and gasket, take out the spring and ball.
4 Loosen the 4 bolt on the case, take out the clip,stationary rings and case.
1-Stationary rings assembly
2-Bolt
3-Case
4- Special tool
5- Clip
6- Shift fork bolt
7-Reverse,5th Interlock roller
Fig.3-8
5 Screw off the restrict bolt and gasket.
6 Remove the backup light switch.
Notice: When removing the shift and select lever shaft assembly, reserve , 5th
interlock roller need not be removed.
1-Case
2- Restrict bolt
3- Spanner
4-
Backup light switch
assembly
5- Shift and select leve
r
shaft
Fig.3-9
7 Take out the shift and select lever shaft assembly.
8 Remove the reverse shaft bolt and gasket.
58
9 Loosen the 11 bolt from the case outer.
