Chery QQ Service Manual Charging System

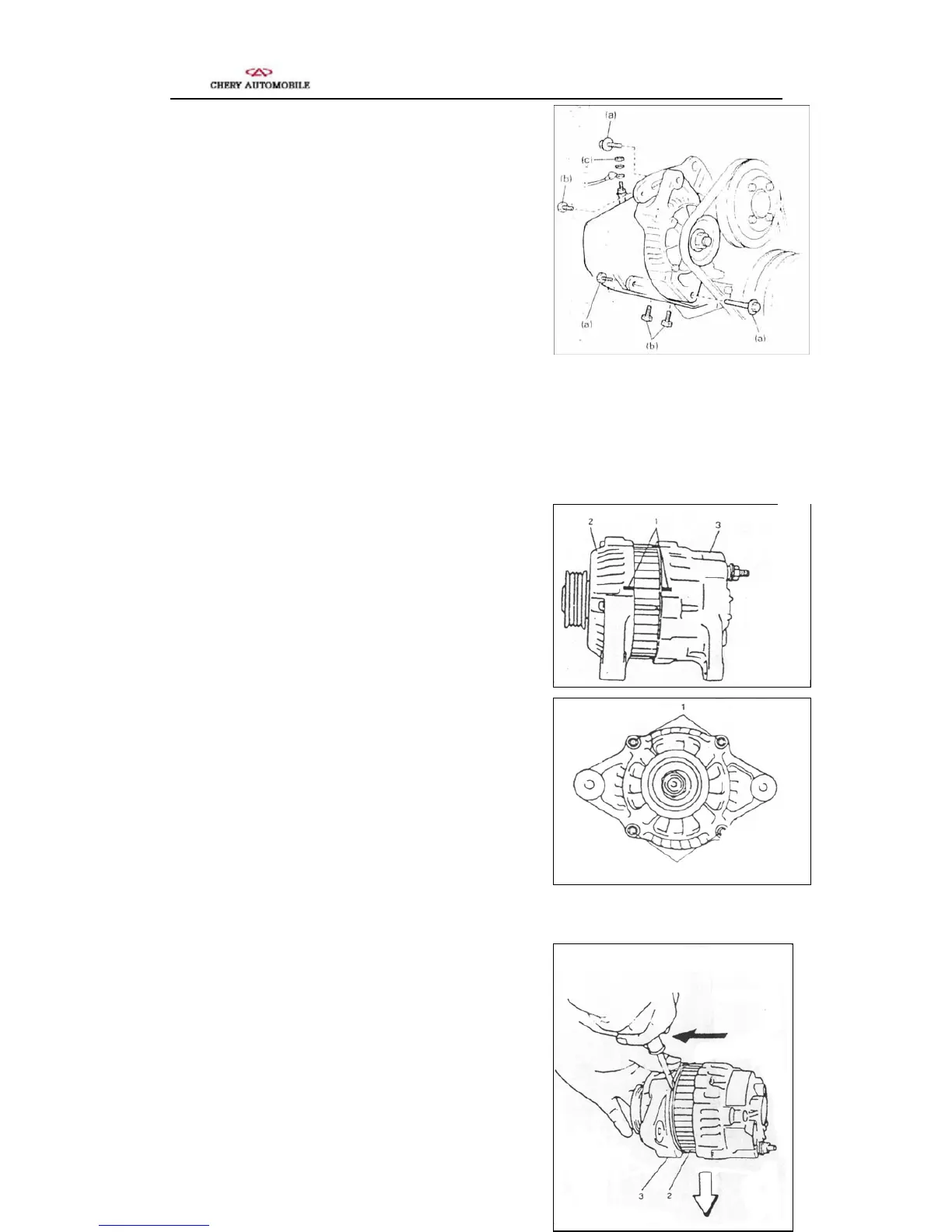

5. Remove the bolt of engine cover (downside), and
then remove the cover;
6. Remove the construction bolt to take out the belt
from the downside.
7. Install them in the step contrary to that of
removal, and adjust the driving belt to the specified
output tightness.
Tightening torque
（a）: 18～28N·m
（b）: 4～7 N·m
（c）: 6～10 N·m
Disassembly
1.For convenience of installation, find out the alignment index line in the
front cover and rear cover or make a fiducial mark.
（1）Alignment index line
（2）Front cover
（3）Rear cover
2. Remove the bolt in the front cover from
generator.
1 Bolt
3. Insert a flat-head screwdriver or similar tool between stator core and front cover to
divide the generator into two parts, front part and
rear part.
1. Flat-head screwdriver
2. Stator core
3. Front cover
- 26 -
