CHERY SQR7080 EZ Drive SERVICE MANUAL

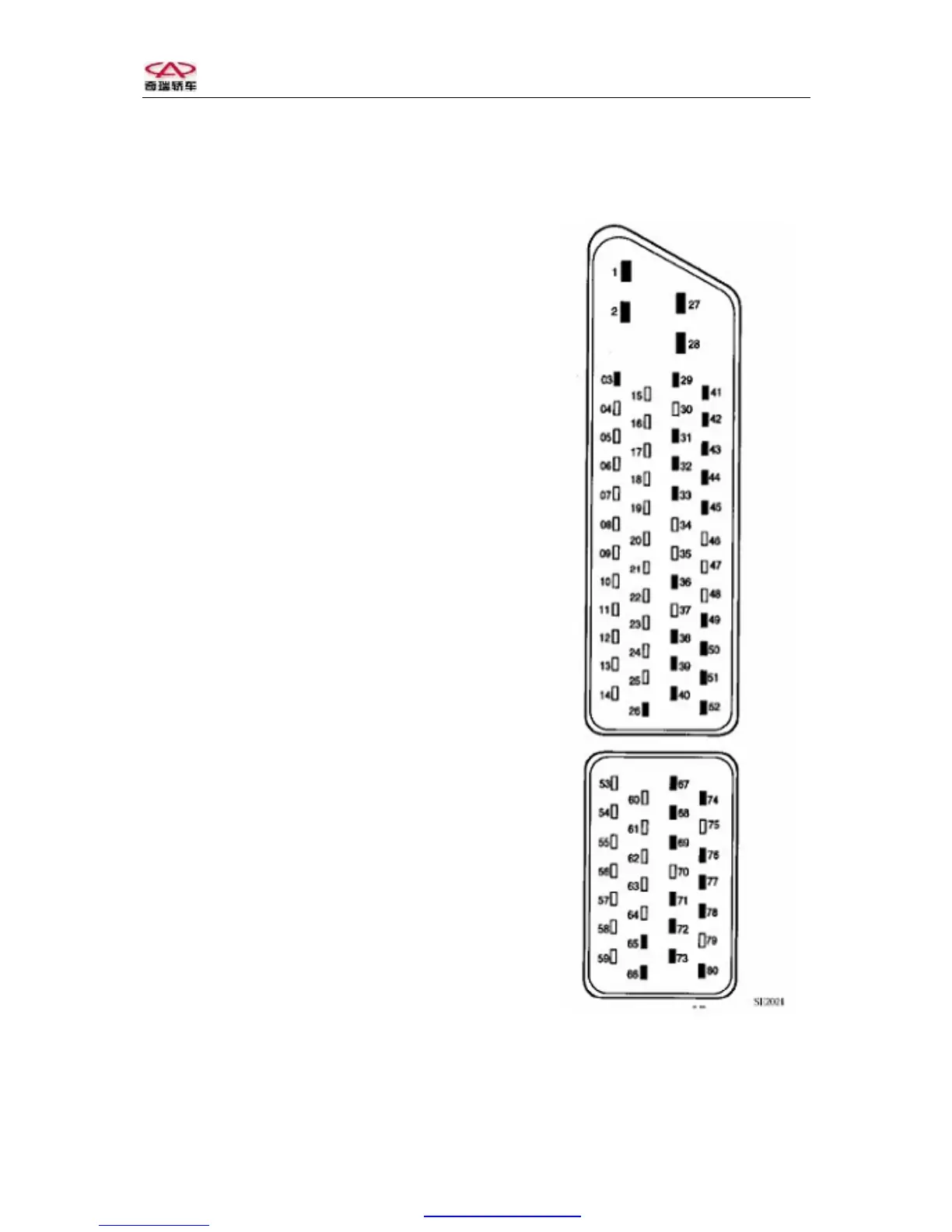

Line distribution:
52-line connector:
1 – power supply module 1
2 – power supply module 2
3 – gear position selection electromagnetic valve 4
26 <--- high drive ratio information
27 ---+ battery
28 ---+ after ignition
29 - à gear position selection electromagnetic valve 4
31 - à helix tube of power pump relay
32 - à gear engagement electromagnetic valve control 1
33 - àß - acquire dialogue: CAN L connection
36 ß - vehicle speed signal
38 ß - junction box input speed sensor
39 ß - engagement position sensor signal
40 ß - pressure sensor signal
41 -- à fault confirmation
42 -- à helix tube of start-up device relay
43 -- à clutch electromagnetic valve control
44 -- à gear engagement electromagnetic valve control 2
45 -- àß - acquire dialogue: CAN H connection
49 - àß - dialogue line
50 ß - junction box input speed sensor
51 ß - gear position selection sensor signal
52 ß - engagement position sensor signal
28-line connector:
65 --- gearshift lever module
66 --- sensor module
67 ß - stable position information (spare)
68 ß - low drive ratio information
69 ß - footbrake connector
71 ß - handbrake connector
72 - à instrument information
73 --- sensor information
74 ß - information about changing to the neutral position
76 ß - main information after start-up
77 ß - automatic ignition
78 ß - door connector
80 ß - horn control
ß Input à Output
