Configuring Device Security
Defining Access Control
Cisco Small Business SFE/SGE Managed Switches Administration Guide 96
4
- Permit — Forwards packets which meet the ACL criteria.
- Deny — Drops packets which meet the ACL criteria.
- Shutdown — Drops packet that meet the ACL criteria, and disables the
port to which the packet was addressed.
STEP 5 Define the relevant fields.
STEP 6 Click Apply. The MAC Based ACL is defined, and the device is updated.
Adding Rule to MAC Based ACL
STEP 1 Select an existing ACL.
STEP 2 Click the Add Rule button. The Add MAC Based Rule Page opens:

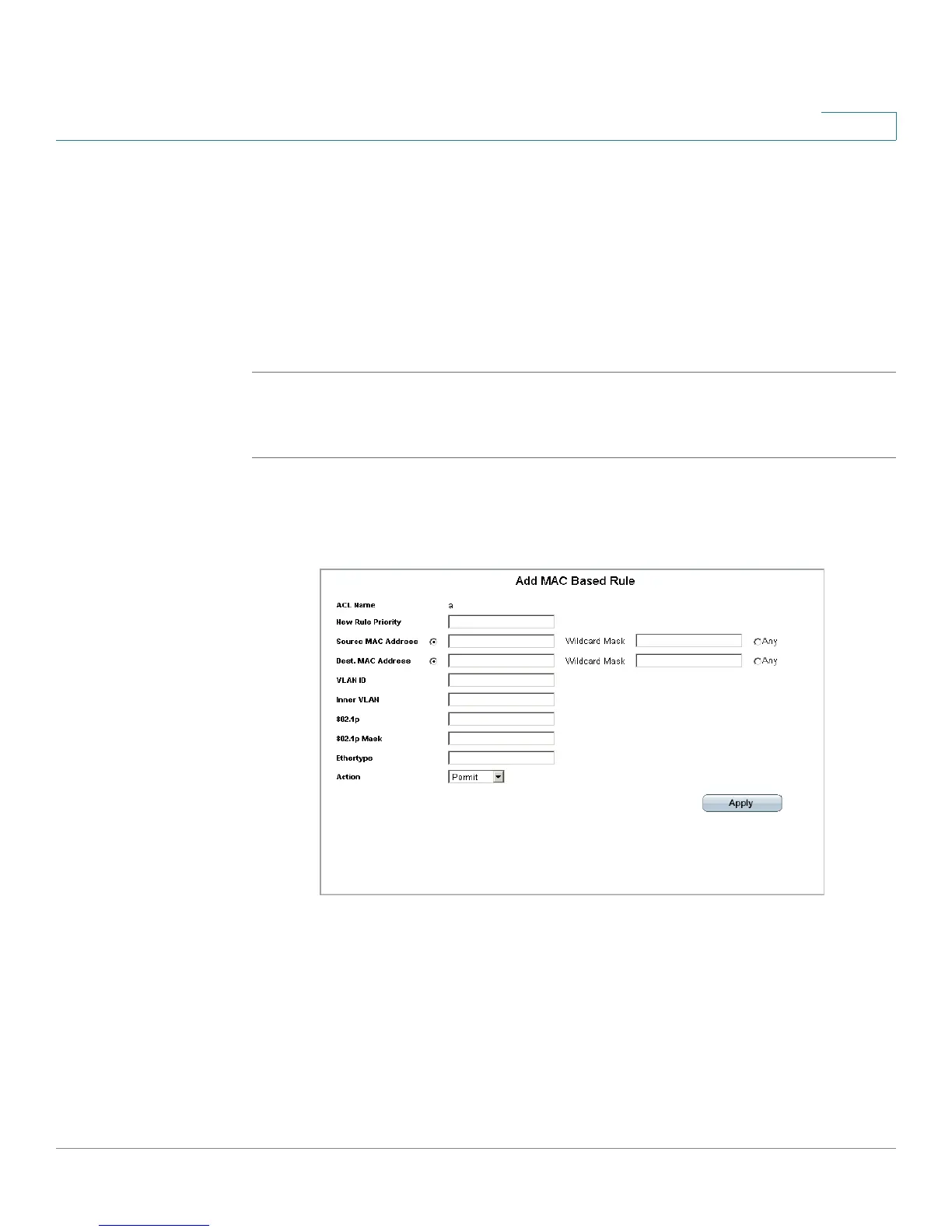

Add MAC Based Rule Page
The
Add MAC Based Rule Page contains the following fields:
• ACL Name — Displays the user-defined MAC based ACLs.
• New Rule Priority — Indicates the ACE priority, which determines which ACE is
matched to a packet on a first-match basis. The possible field values are 1-
2147483647.
• Source MAC Address

Cisco SGE2000 - Cisco - Gigabit Switch Specifications

General

Form Factor	Rack-mountable
Switching Capacity	48 Gbps
Forwarding Rate	35.7 Mpps
Layer	Layer 2
Power Supply	Internal
Management	Web-based, SNMP, CLI
MAC Address Table Size	8000 entries
VLANs	256
Features	Quality of Service (QoS), IGMP snooping, Port mirroring
Dimensions (W x D x H)	440 x 257 x 44 mm (17.3 x 10.1 x 1.73 in)
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20 to 70°C (-4 to 158°F)
Relative Humidity	10% to 90% non-condensing
Standards Compliance	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
