Configuring Device Security
Defining Access Control
Cisco Small Business SFE/SGE Managed Switches Administration Guide 117
4

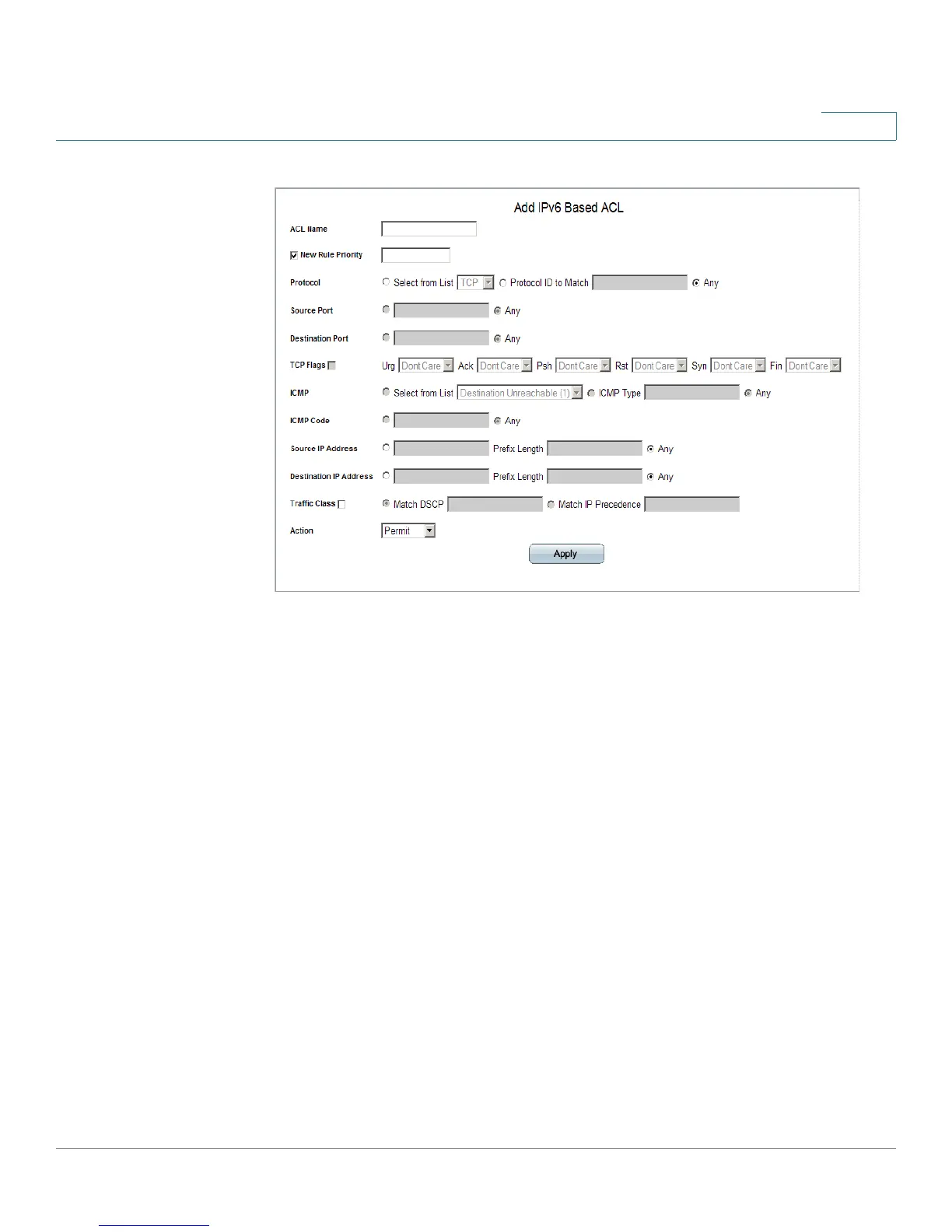

Add IPv6 Based ACL Page
The
Add IPv6 Based ACL Page contains the following fields:
• ACL Name — Displays the user-defined IP based ACLs.
• New Rule Priority — Indicates the rule priority, which determines which rule is
matched to a packet on a first-match basis.
• Protocol — Creates an ACE based on a specific protocol. For a list of available
protocols, see the Protocol field description in the
IP Based ACL Page above.
• Source Port — Defines the TCP/UDP source port to which the ACE is matched.
This field is active only if 800/6-TCP or 800/17-UDP are selected in the Select
from List drop-down menu. The possible field range is 0 - 65535.
• Destination Port — Defines the TCP/UDP destination port. This field is active
only if 800/6-TCP or 800/17-UDP are selected in the Select from List drop-
down menu. The possible field range is 0 - 65535.
• TCP Flags — Filters packets by TCP flag. Filtered packets are either forwarded
or dropped. Filtering packets by TCP flags increases packet control, which
increases network security. The possible field values are:
• ICMP — Indicates if ICMP packets are permitted on the network. The
possible field values are as follows:.

Cisco SGE2000 - Cisco - Gigabit Switch Specifications

General

Form Factor	Rack-mountable
Switching Capacity	48 Gbps
Forwarding Rate	35.7 Mpps
Layer	Layer 2
Power Supply	Internal
Management	Web-based, SNMP, CLI
MAC Address Table Size	8000 entries
VLANs	256
Features	Quality of Service (QoS), IGMP snooping, Port mirroring
Dimensions (W x D x H)	440 x 257 x 44 mm (17.3 x 10.1 x 1.73 in)
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20 to 70°C (-4 to 158°F)
Relative Humidity	10% to 90% non-condensing
Standards Compliance	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
