Configuring VLANs
Assigning Ports to Multiple VLANs
Cisco Small Business SFE/SGE Managed Switches Administration Guide 171
6

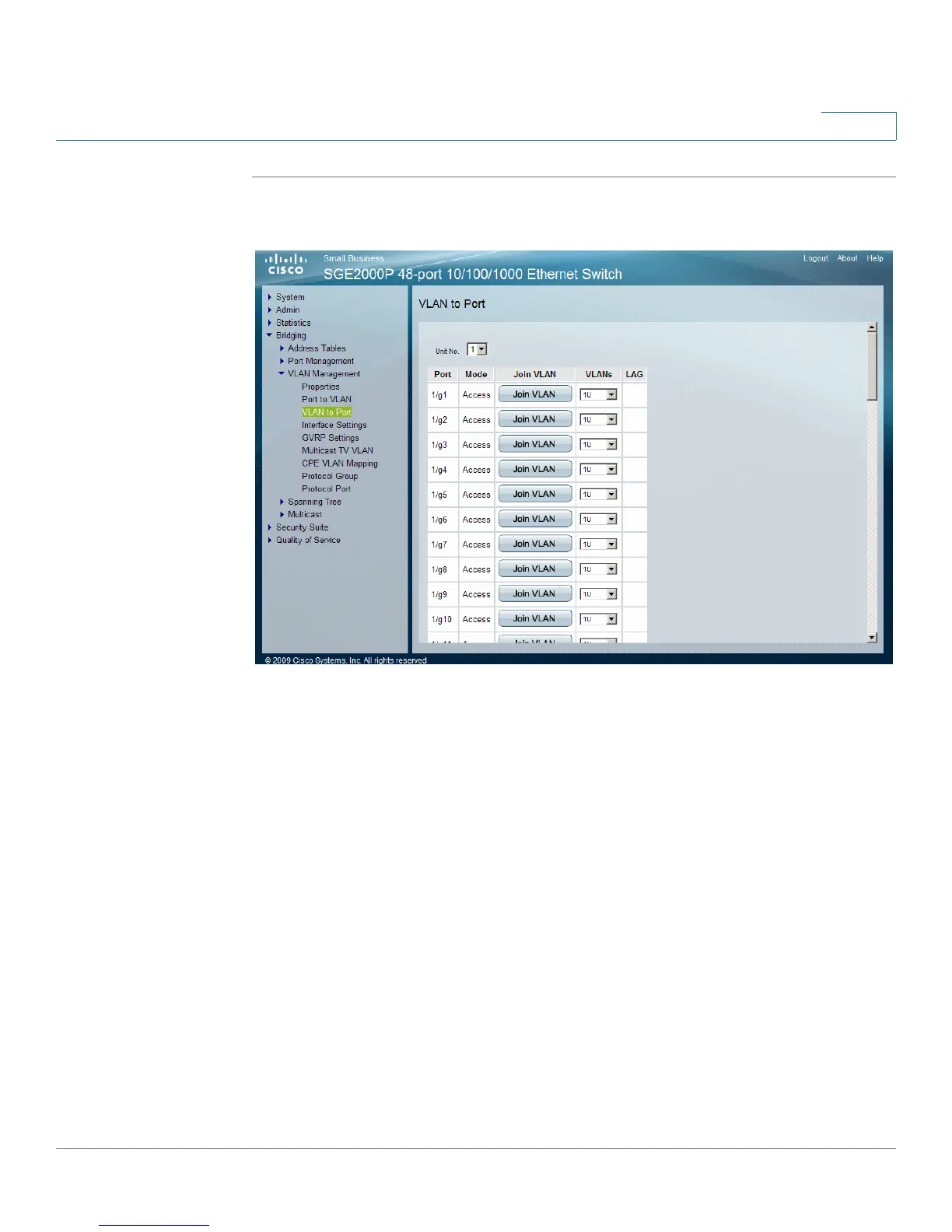

STEP 1 Click VLAN Management > VLAN to Port. The VLAN To Port Page opens:
VLAN To Port Page
The
VLAN To Port Page contains the following fields:
• Unit No. — Indicates that ports on the specified stacking member
• Port — Displays the port number.
• Mode — Indicates the port mode. The possible values are:
- General — The port can be tagged and untagged with members of one
or more VLANs. (full 802.1Q mode).
- Access — The port belongs to a single untagged VLAN. When a port is
in Access mode, the packet types which are accepted on the port
(packet type) cannot be designated. Also, it is not possible to enable/
disable ingress filtering on an access port.
- Trunk — The port can be member of one or more VLANs. It is an
untagged member of at most one VLAN, and is a tagged member of all
other VLANs it is a member of.

Cisco SGE2000 - Cisco - Gigabit Switch Specifications

General

Form Factor	Rack-mountable
Switching Capacity	48 Gbps
Forwarding Rate	35.7 Mpps
Layer	Layer 2
Power Supply	Internal
Management	Web-based, SNMP, CLI
MAC Address Table Size	8000 entries
VLANs	256
Features	Quality of Service (QoS), IGMP snooping, Port mirroring
Dimensions (W x D x H)	440 x 257 x 44 mm (17.3 x 10.1 x 1.73 in)
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20 to 70°C (-4 to 158°F)
Relative Humidity	10% to 90% non-condensing
Standards Compliance	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
