Configuring VLANs
Assigning Ports to Multiple VLANs
Cisco Small Business SFE/SGE Managed Switches Administration Guide 172
6
- Customer — The port can be a member of one or more double tagged
Multicast TV VLAN. Refer to "Define Customer VLAN using Q-in-Q" for
details.
• Join VLAN — Defines the VLANs to which the interface is joined. Pressing the
Join VLAN button displays the
Join VLAN to Port Screen .
STEP 2 Select the VLAN to which to add the port, select the VLANs to be tagged or
untagged and click Add. To remove the VLAN allocation to the port, select the
VLAN already assigned to the port and click Remove.
• VLANs — Specifies the VLAN in which the port is a member.
• LAG — if the port is a member of a LAG, the LAG number is displayed. A
member of a LAG cannot be configured to a VLAN, but that same LAG can be
configured to a VLAN.
STEP 3 In the VLAN To Port table, click Join VLAN in the relevant port entry. The Join VLAN
To P o r t S c r e e n
opens.

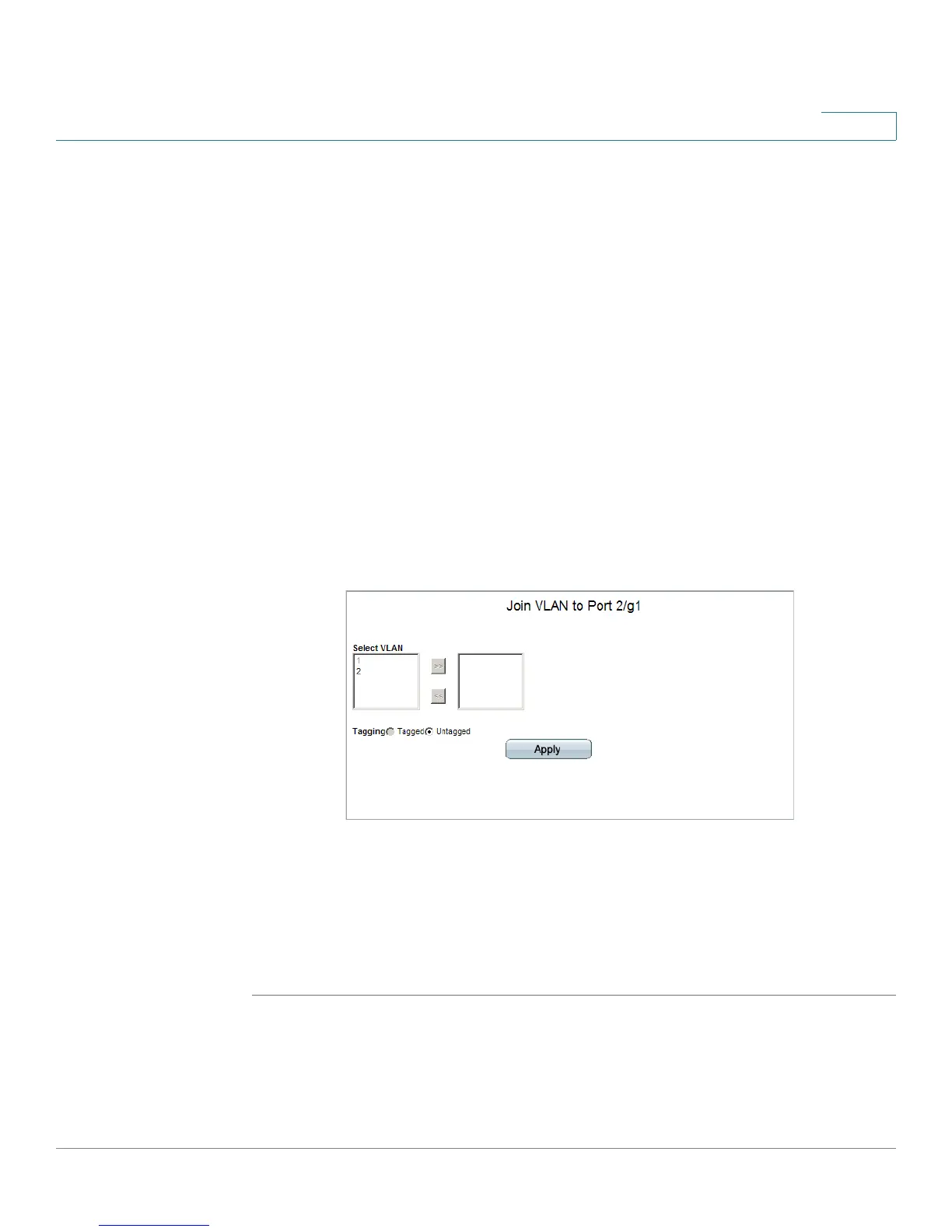

Join VLAN To Port Screen
STEP 4 Define the selected VLAN as Tagged or Untagged .
STEP 5 From the left list, select the relevant VLAN and click Add. The selected VLAN then
appears in the right list.
Up to 20 VLANs at a single time may be joined to the port.
STEP 6 Click Save & Close to save the modifications and close the Join VLAN To Port
Screen
(clicking Save keeps the Join VLAN To Port Screen open).

Cisco SGE2000 - Cisco - Gigabit Switch Specifications

General

Form Factor	Rack-mountable
Switching Capacity	48 Gbps
Forwarding Rate	35.7 Mpps
Layer	Layer 2
Power Supply	Internal
Management	Web-based, SNMP, CLI
MAC Address Table Size	8000 entries
VLANs	256
Features	Quality of Service (QoS), IGMP snooping, Port mirroring
Dimensions (W x D x H)	440 x 257 x 44 mm (17.3 x 10.1 x 1.73 in)
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20 to 70°C (-4 to 158°F)
Relative Humidity	10% to 90% non-condensing
Standards Compliance	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
