Configuring VLANs
Defining Protocol Groups
Cisco Small Business SFE/SGE Managed Switches Administration Guide 185
6
STEP 1 Click Bridging > VLAN Management > Protocol Group (Layer 2). The
Protocol
Group Page
(Layer 2) opens:

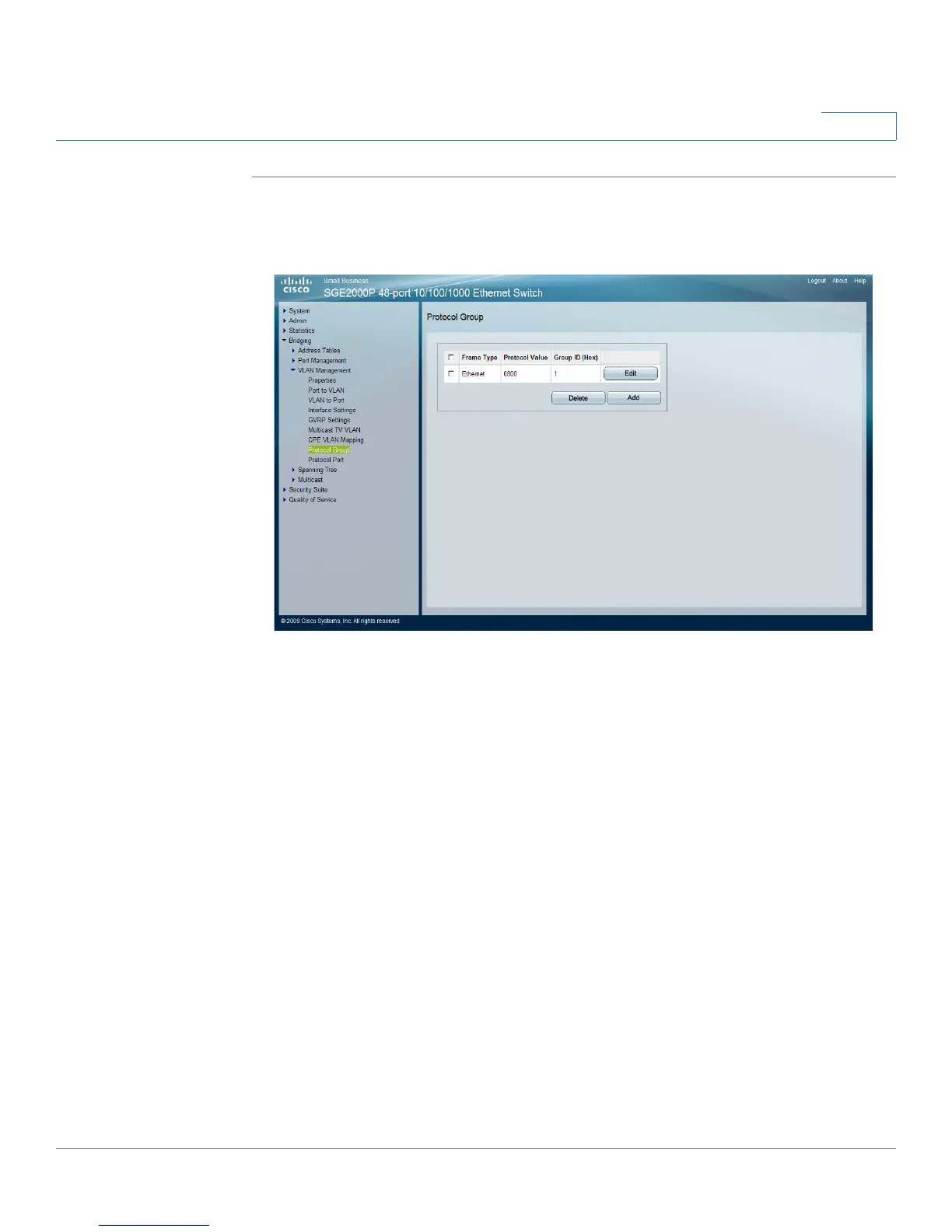

Protocol Group Page
The
Protocol Group Page
contains the following fields:
• Frame Type — Displays the packet type.
• Protocol Value — Displays the User-defined protocol name.
• Group ID (Hex) — Defines the Protocol group ID to which the interface is
added. Range is 1-2147483647.
STEP 2 Click the Add Button. The
Add Protocol Group Page
opens:
