Configuring VLANs
Defining Protocol Groups
Cisco Small Business SFE/SGE Managed Switches Administration Guide 186
6

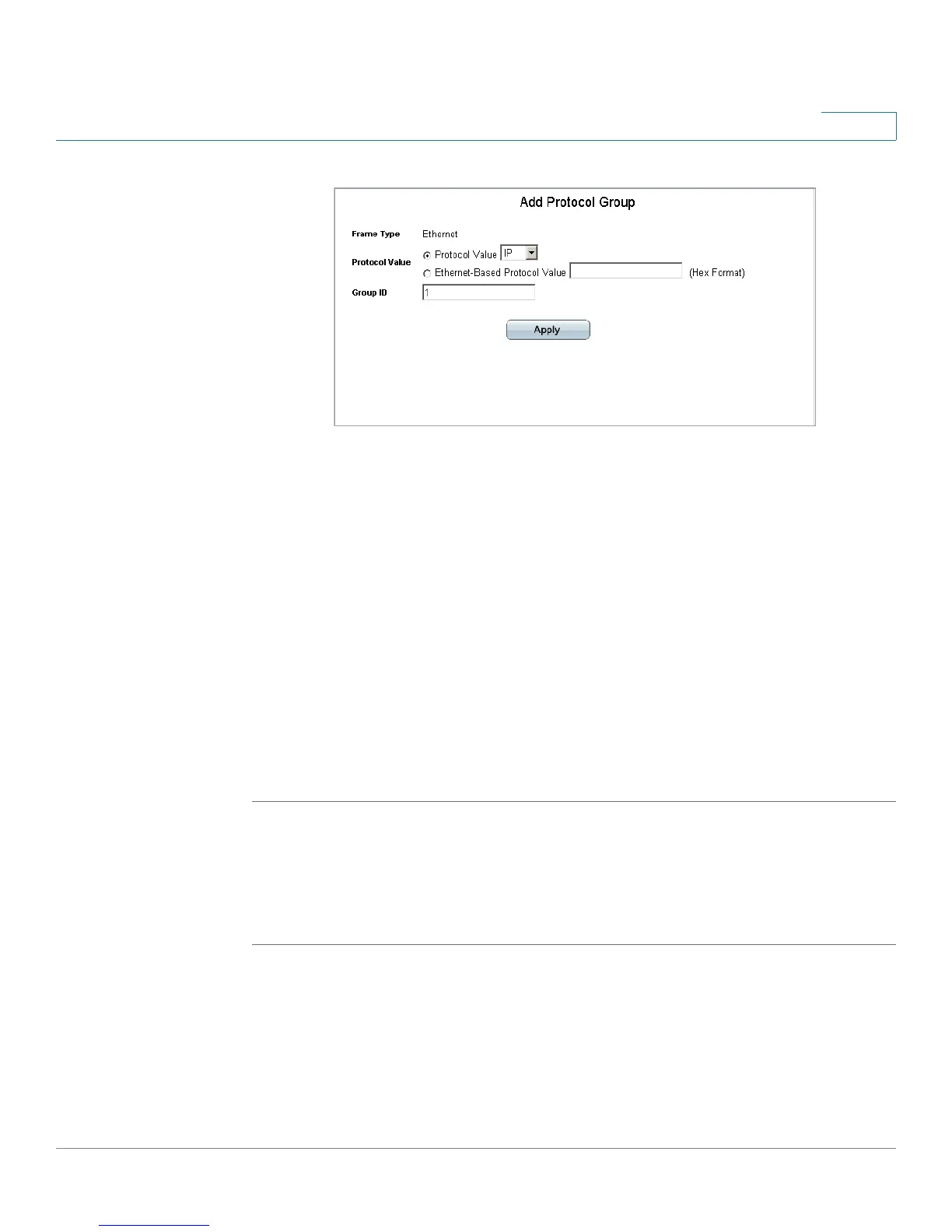

Add Protocol Group Page
The
Add Protocol Group Page provides information for configuring new VLAN
protocol groups. The
Add Protocol Group Page contains the following fields.
• Frame Type — Displays the packet type.
• Protocol Value — Defines the User-defined protocol value. The options are as
follows:
- Protocol Value — The possible values are IP, IPX, IPv6, or ARP.
- Ethernet-Based Protocol Value — Specify the value in hexadecimal
format.
• Group ID — Defines the Protocol group ID to which the interface is added.
STEP 3 Define the relevant fields.
STEP 4 Click Apply. The Protocol Group is added, and the device is updated.
Modifying Protocol Groups
The Edit Protocol Group Page provides information for configuring existing VLAN
protocol groups
STEP 1 Click Bridging > VLAN Management > Protocol Group. The Protocol Group Page
opens:
STEP 2 Click the Edit Button. The Edit Protocol Group Page opens:

Cisco SGE2000 - Cisco - Gigabit Switch Specifications

General

Form Factor	Rack-mountable
Switching Capacity	48 Gbps
Forwarding Rate	35.7 Mpps
Layer	Layer 2
Power Supply	Internal
Management	Web-based, SNMP, CLI
MAC Address Table Size	8000 entries
VLANs	256
Features	Quality of Service (QoS), IGMP snooping, Port mirroring
Dimensions (W x D x H)	440 x 257 x 44 mm (17.3 x 10.1 x 1.73 in)
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20 to 70°C (-4 to 158°F)
Relative Humidity	10% to 90% non-condensing
Standards Compliance	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
