Cisco SGE2000 - Cisco - Gigabit Switch Administration Guide

Configuring IP Information
IP Addressing
Cisco Small Business SFE/SGE Managed Switches Administration Guide 195
7
STEP 1 Click System > System Management > IP Addressing > IPv6 Configuration >
Default Gateway. The Default Gateway Page opens:

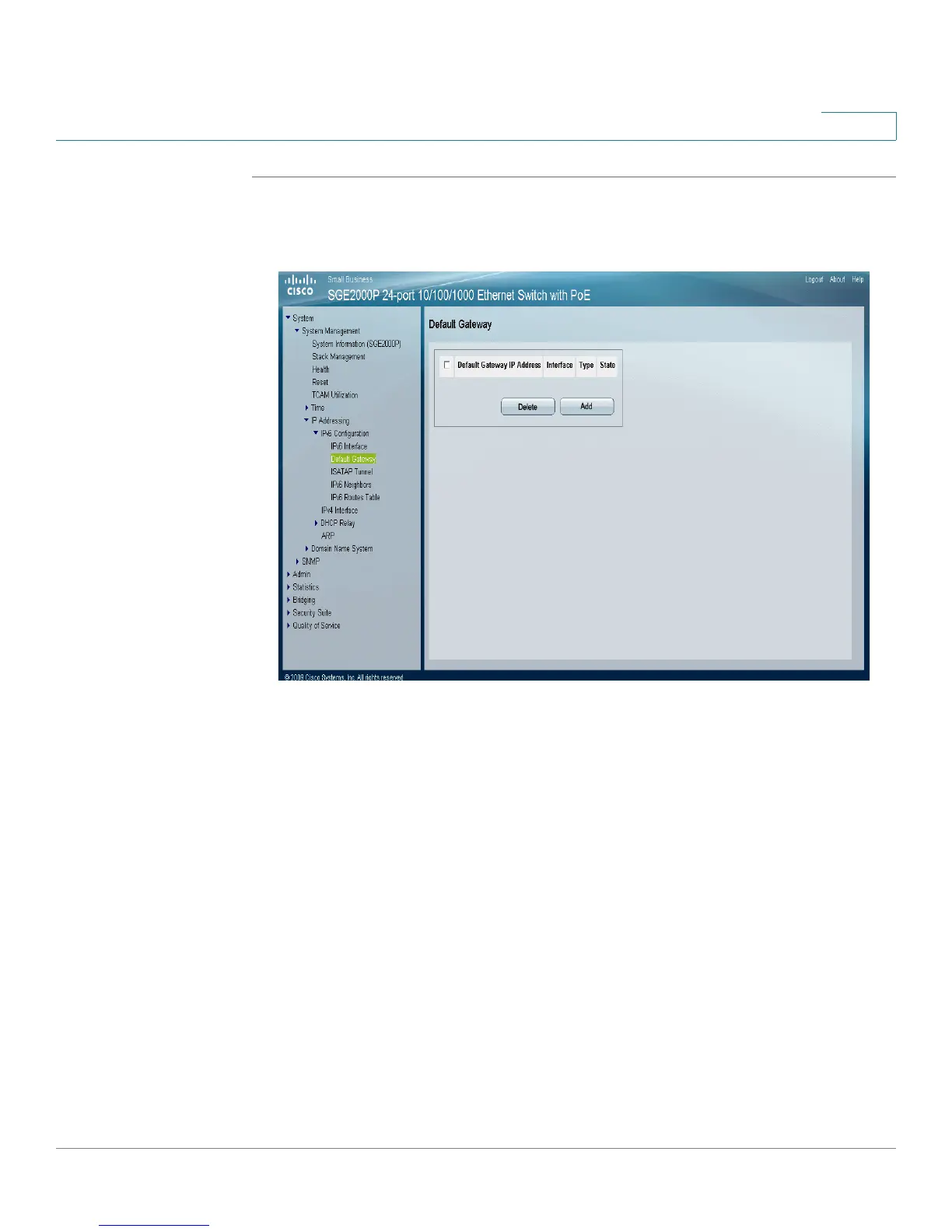

Default Gateway Page
The Default Gateway Page contains the following fields:
• Default Gateway IP Address — Defines the Link Local IP Address of the
Default Gateway.
• Interface — Specifies the outgoing interface through which the Default
Gateway can be reached, which is the VLAN ID on which the IPv6 interface is
defined.
• Type — Specifies the means by which the default gateway was configured.
Possible field values are:
- Static — Indicates the default gateway is user-defined.
- Dynamic — Indicates the default gateway is dynamically configured.
• State — Specifies the Default Gateway status. Possible field values are:
- Incomplete — Indicates address resolution is in process. Default
Gateway has not yet responded.

Cisco SGE2000 - Cisco - Gigabit Switch Specifications

General

Form Factor	Rack-mountable
Switching Capacity	48 Gbps
Forwarding Rate	35.7 Mpps
Layer	Layer 2
Power Supply	Internal
Management	Web-based, SNMP, CLI
MAC Address Table Size	8000 entries
VLANs	256
Features	Quality of Service (QoS), IGMP snooping, Port mirroring
Dimensions (W x D x H)	440 x 257 x 44 mm (17.3 x 10.1 x 1.73 in)
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20 to 70°C (-4 to 158°F)
Relative Humidity	10% to 90% non-condensing
Standards Compliance	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
