Configuring IP Information
IP Addressing
Cisco Small Business SFE/SGE Managed Switches Administration Guide 222
7

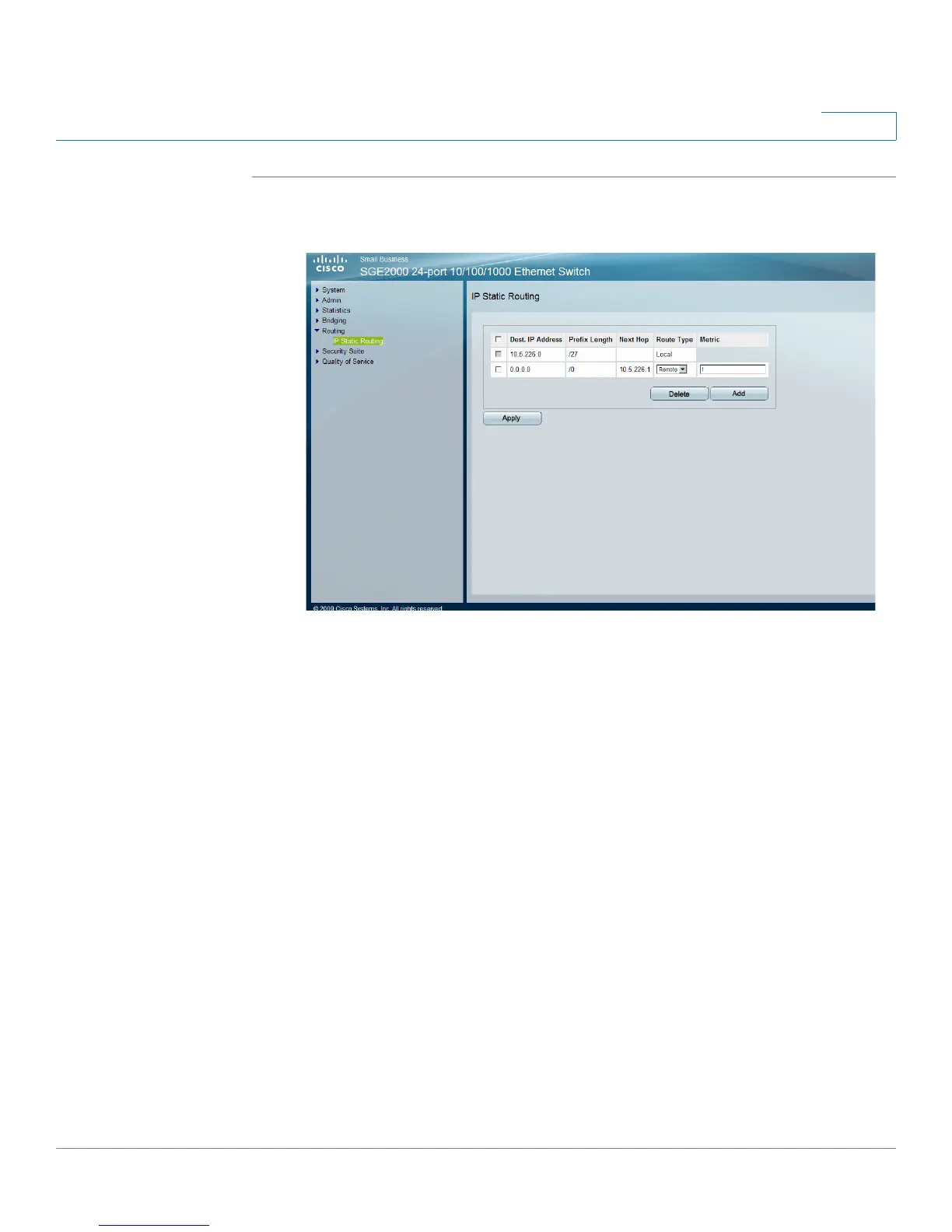

STEP 1 Click Routing > IP Static Routing. The IP Static Routing Page opens:
IP Static Routing Page
The
IP Static Routing Page contains the following fields:
• Dest. IP Address — Defines the destination IP address.
• Prefix Length — Specifies the IP route prefix length for the destination IP
address, preceded by a forward slash. the prefix length.
• Next Hop — Indicates the next hop’s IP address or IP alias on the route.
• Route Type —Defines the route type. The possible field values are:
- Reject — Rejects the route, and stops routing to the destination network
via all gateways.
- Remote — Indicates the route is a remote path.
• Metric — Indicates the administrative distance to the next hop. The range is 1-
255. The default value is 1.
STEP 2 Click the Add button. The Add IP Static Route Page opens:

Cisco SGE2000 - Cisco - Gigabit Switch Specifications

General

Form Factor	Rack-mountable
Switching Capacity	48 Gbps
Forwarding Rate	35.7 Mpps
Layer	Layer 2
Power Supply	Internal
Management	Web-based, SNMP, CLI
MAC Address Table Size	8000 entries
VLANs	256
Features	Quality of Service (QoS), IGMP snooping, Port mirroring
Dimensions (W x D x H)	440 x 257 x 44 mm (17.3 x 10.1 x 1.73 in)
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20 to 70°C (-4 to 158°F)
Relative Humidity	10% to 90% non-condensing
Standards Compliance	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
