Configuring Quality of Service
Defining General Settings
Cisco Small Business SFE/SGE Managed Switches Administration Guide 284
11

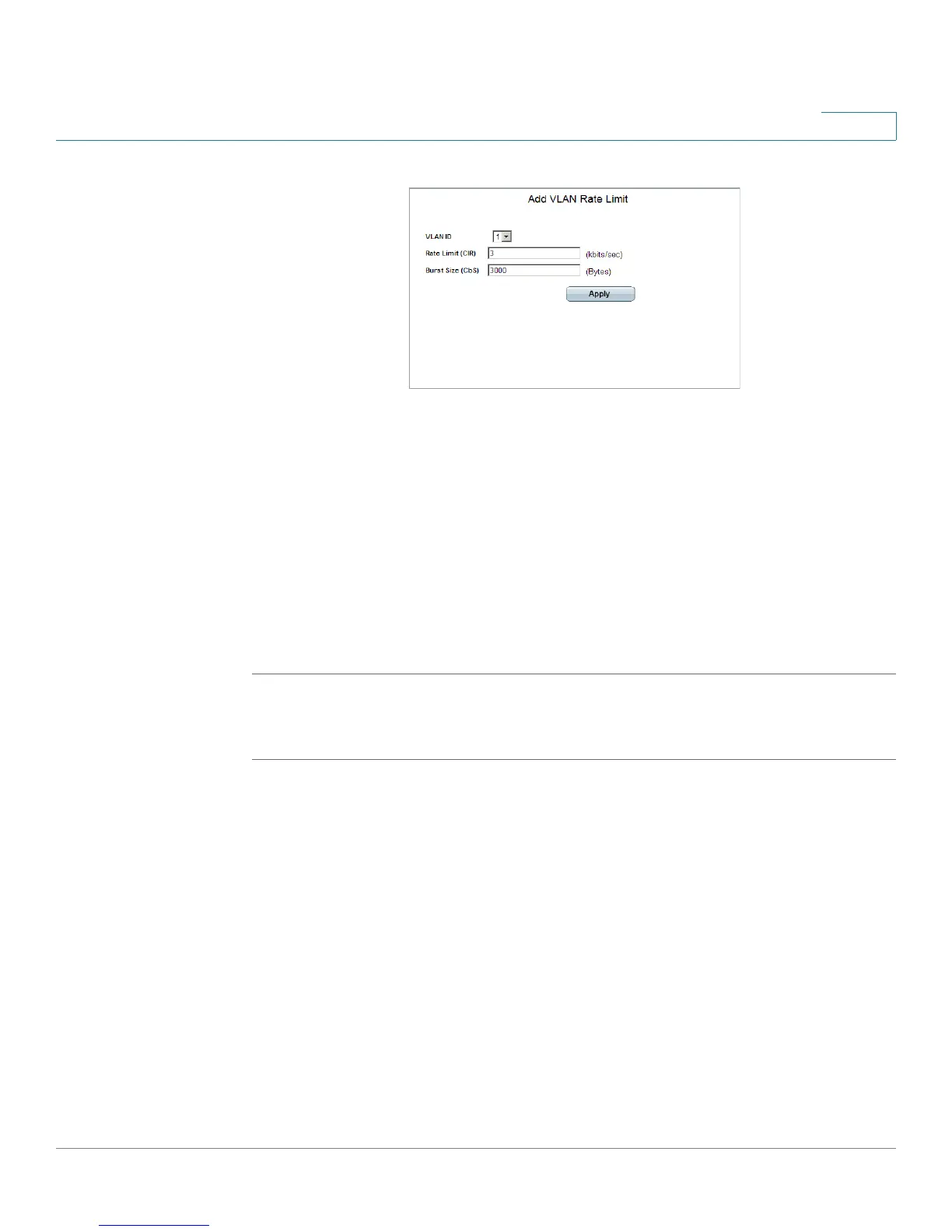

Add VLAN Rate Limit Page
The
Add VLAN Rate Limit Page
contains the following fields.
• VLAN ID – Defines the VLAN on which to apply the Rate Limit.
• Rate Limit (CIR) – Defines the maximum rate (CIR) in kbits per second (bps) that
forwarding traffic is permitted in the VLAN.
• Burst Size (CbS) – Defines the maximum burst size (CbS) in bytes that
forwarding traffic is permitted through the VLAN.
STEP 3 Define the relevant fields.
STEP 4 Click Apply. The VLAN Rate Limit is added, and the device is updated.
Modifying the VLAN Rate Limit
STEP 1 Click Quality of Service > General > VLAN Rate Limit. The
VLAN Rate Limit Page
opens:
STEP 2 Click the Edit button. The
VLAN Rate Limit Page
opens:
