Configuring Quality of Service
Defining Advanced QoS Mode
Cisco Small Business SFE/SGE Managed Switches Administration Guide 291
11
Ingress CIR — Defines the Committed Information Rate (CIR) in bits per
second.
Ingress CS — Defines the Committed Burst Size (CS) in bytes per second.
Exceed Action — Action assigned to incoming packets exceeding the CIR.
Possible values are:
-
Drop
— Drops packets exceeding the defined CIR value.
-
Remark DSCP
—Remarks packet’s DSCP values exceeding the defined
CIR value.
-
None
— Forwards packets exceeding the defined CIR value.
STEP 2 Click the Add button. The
Add QoS Aggregate Policer Page opens:

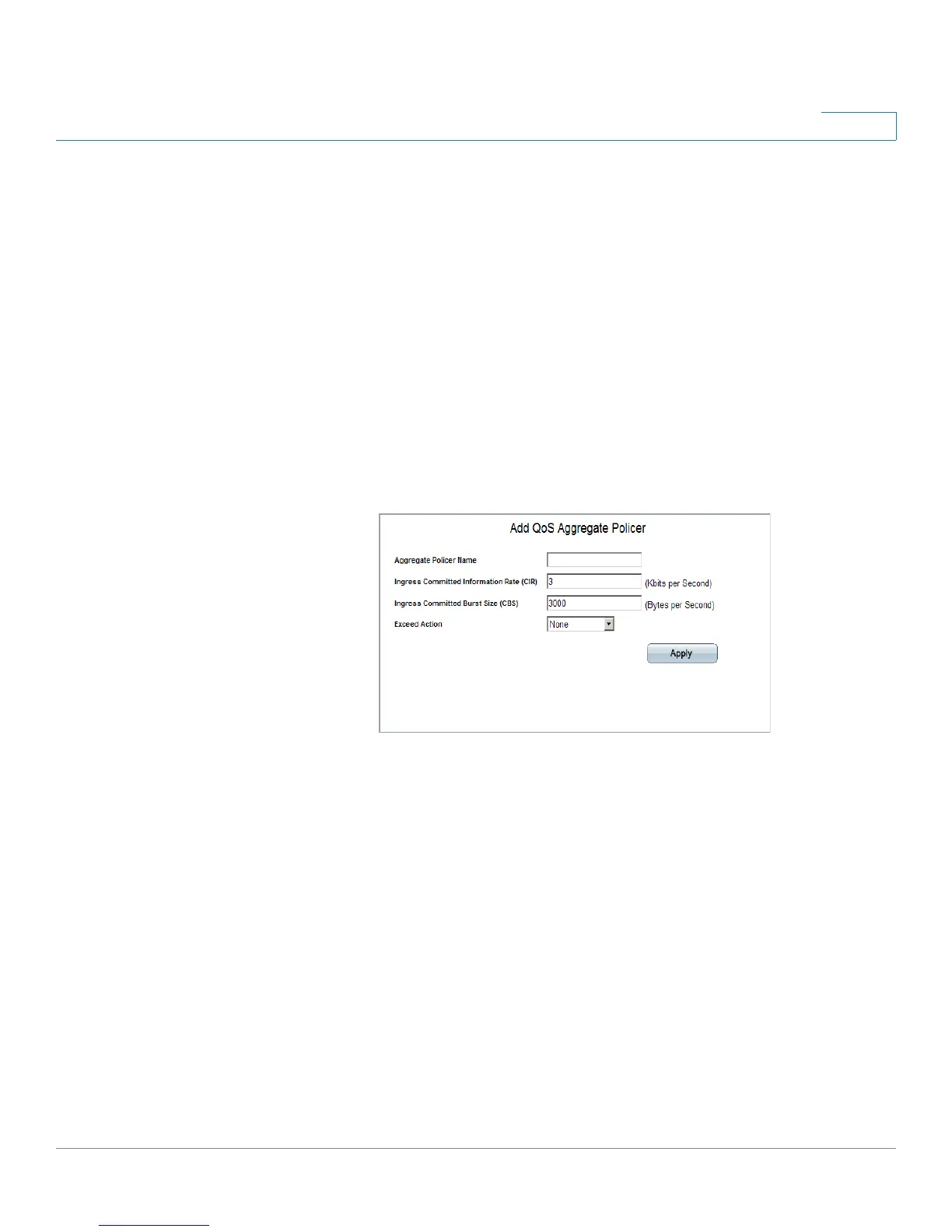

Add QoS Aggregate Policer Page
The
Add QoS Aggregate Policer Page
contains the following fields.
Aggregate Policer Name — Specifies the Aggregate Policer Name.
Ingress Committed Information Rate (CIR) — Defines the CIR in bits per
second.
Ingress Committed Burst Size (CS) — Defines the CS in bytes per second.
Exceed Action — Action assigned to incoming packets exceeding the CIR.
Possible values are:
-
Drop
— Drops packets exceeding the defined CIR value.
-
Remark DSCP
— Remarks packet’s DSCP values exceeding the defined
CIR value.
STEP 3 Define the relevant fields.
