Configuring SNMP
Configuring SNMP Security
Cisco Small Business SFE/SGE Managed Switches Administration Guide 315
12

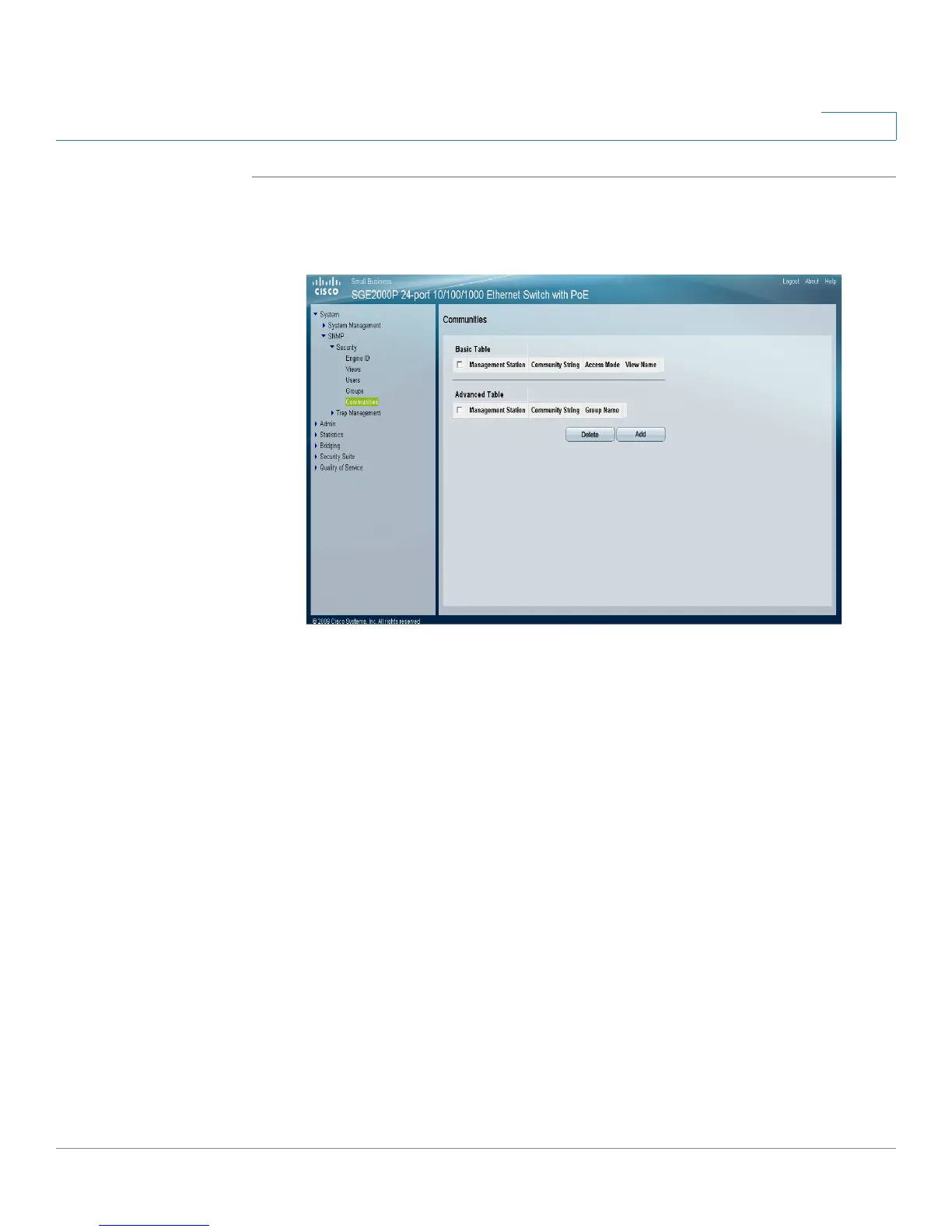

STEP 1 Click System > SNMP > Security > Communities. The SNMP Communities Page
opens:
SNMP Communities Page
The
SNMP Communities Page is divided into the following tables:
• Basic Table
• Advanced Table
The SNMP Communities Basic Table area contains the following fields:
• Management Station — Displays the management station IP address for which
the basic SNMP community is defined.
• Community String — Displays the password used to authenticate the
management station to the device.
• Access Mode — Displays the access rights of the community.
• View Name — Displays the SNMP view.
The SNMP Communities Advanced Table area contains the following fields:
• Management Station — Displays the management station IP address for which
the Advanced SNMP community is defined.
• Community String — Displays the password used to authenticate the
management station to the device.

Cisco SGE2000 - Cisco - Gigabit Switch Specifications

General

Form Factor	Rack-mountable
Switching Capacity	48 Gbps
Forwarding Rate	35.7 Mpps
Layer	Layer 2
Power Supply	Internal
Management	Web-based, SNMP, CLI
MAC Address Table Size	8000 entries
VLANs	256
Features	Quality of Service (QoS), IGMP snooping, Port mirroring
Dimensions (W x D x H)	440 x 257 x 44 mm (17.3 x 10.1 x 1.73 in)
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20 to 70°C (-4 to 158°F)
Relative Humidity	10% to 90% non-condensing
Standards Compliance	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
