Configuring SNMP
Configuring SNMP Security
Cisco Small Business SFE/SGE Managed Switches Administration Guide 316
12
• Group Name — Displays advanced SNMP communities group name.
STEP 2 Click the Add button. The Add SNMP Community Page opens.

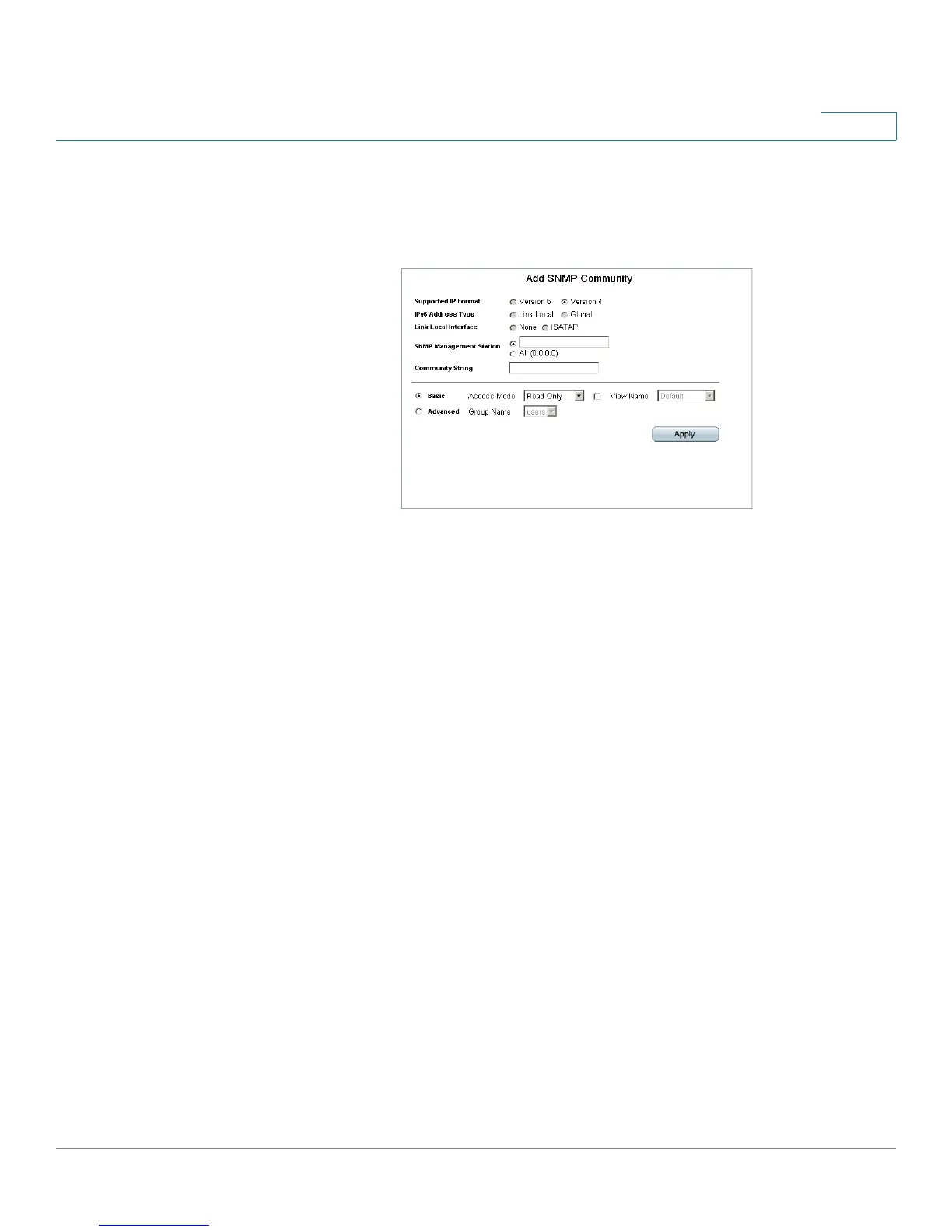

Add SNMP Community Page
The
Add SNMP Community Page allows network managers to define and
configure new SNMP communities. The
Add SNMP Community Page contains the
following fields:
• Supported IP Format — Indicates the supported IP version. The possible
values are:
- — Indicates the device supports IPv6.
- — Indicates the device supports IPv4.
• IPv6 Address Type — Indicates the supported IPv6. The possible field values
are:
- Link Local — Indicates IPv6 address is a Link Local.
- Global — IndicatesIPv6 address is global.
• Link Local Interface — Indicates the Link Local Interface. The possible field
values are:
- VLAN— Indicate the VLAN is defined as the
- ISATAP — Indicates a ISATAP tunnel is a Link Local interface.
• — Defines the management station IP address for which the SNMP community
is defined. Community String — Defines the password used to authenticate the
management station to the device.
Configure either the Basic Mode or the Advanced Mode.

Cisco SGE2000 - Cisco - Gigabit Switch Specifications

General

Form Factor	Rack-mountable
Switching Capacity	48 Gbps
Forwarding Rate	35.7 Mpps
Layer	Layer 2
Power Supply	Internal
Management	Web-based, SNMP, CLI
MAC Address Table Size	8000 entries
VLANs	256
Features	Quality of Service (QoS), IGMP snooping, Port mirroring
Dimensions (W x D x H)	440 x 257 x 44 mm (17.3 x 10.1 x 1.73 in)
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20 to 70°C (-4 to 158°F)
Relative Humidity	10% to 90% non-condensing
Standards Compliance	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
