Cisco SGE2000 - Cisco - Gigabit Switch Administration Guide

Configuring SNMP
Configuring SNMP Security
Cisco Small Business SFE/SGE Managed Switches Administration Guide 318
12

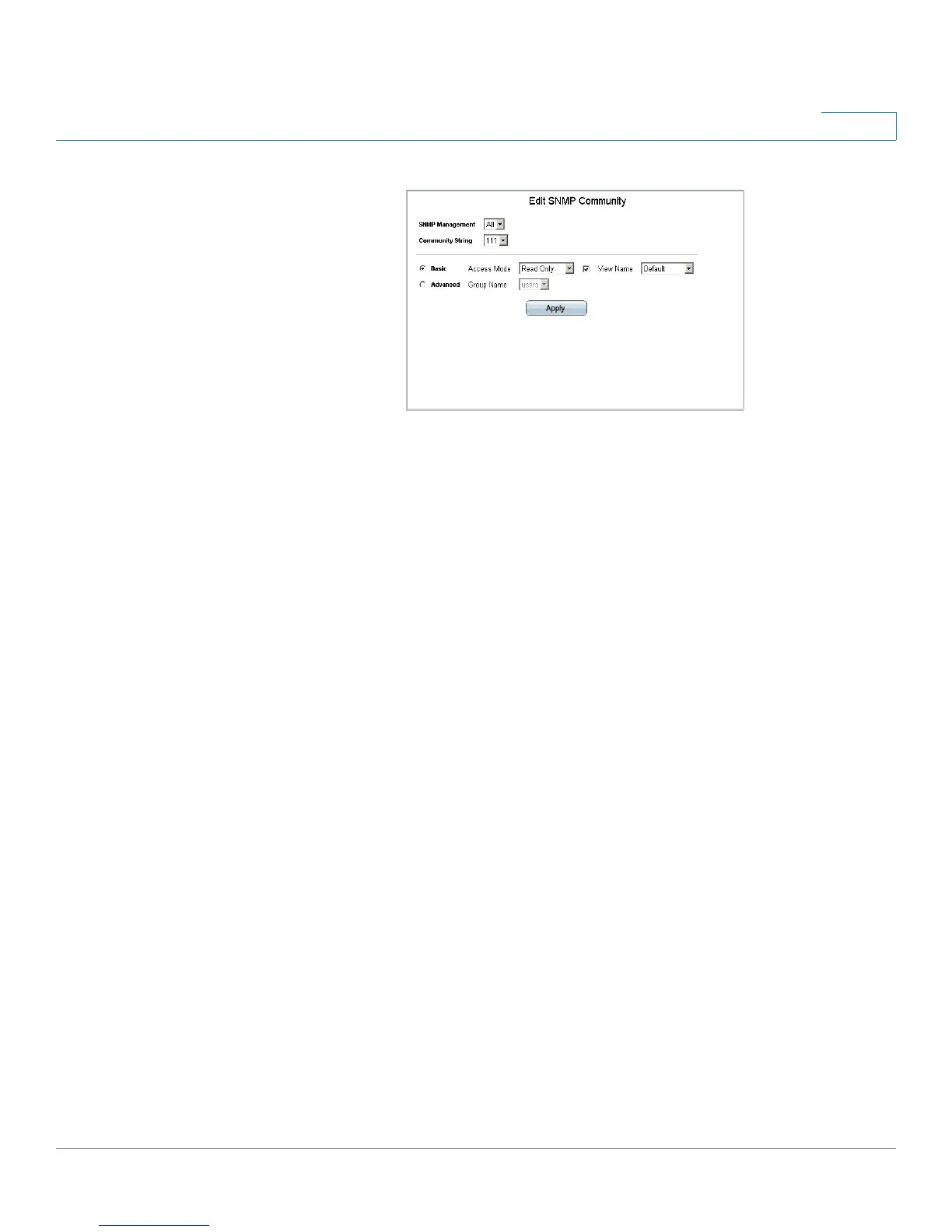

Edit SNMP Community Page
The
Edit SNMP Community Page contains the following fields:
• SNMP Management — Defines the management station IP address for which
the SNMP community is defined.
• Community String — Defines the password used to authenticate the
management station to the device.
Configure either the Basic Mode or the Advanced Mode.
• Basic — Enables SNMP Basic mode for a selected community and contains the
following fields:
• Access Mode — Defines the access rights of the community. The possible
field values are:
- Read Only — Management access is restricted to read-only, and
changes cannot be made to the community.
- Read Write — Management access is read-write and changes can be
made to the device configuration, but not to the community.
- SNMP Admin — User has access to all device configuration options, as
well as permissions to modify the community.
• View Name — Contains a list of user-defined SNMP views.
• Advanced — Enables SNMP Advanced mode for a selected community and
contains the following fields:
- Group Name — Defines advanced SNMP communities group names.
STEP 3 Define the relevant fields.

Cisco SGE2000 - Cisco - Gigabit Switch Specifications

General

Form Factor	Rack-mountable
Switching Capacity	48 Gbps
Forwarding Rate	35.7 Mpps
Layer	Layer 2
Power Supply	Internal
Management	Web-based, SNMP, CLI
MAC Address Table Size	8000 entries
VLANs	256
Features	Quality of Service (QoS), IGMP snooping, Port mirroring
Dimensions (W x D x H)	440 x 257 x 44 mm (17.3 x 10.1 x 1.73 in)
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20 to 70°C (-4 to 158°F)
Relative Humidity	10% to 90% non-condensing
Standards Compliance	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
