Managing Device Diagnostics
Viewing Integrated Cable Tests
Cisco Small Business SFE/SGE Managed Switches Administration Guide 342
15

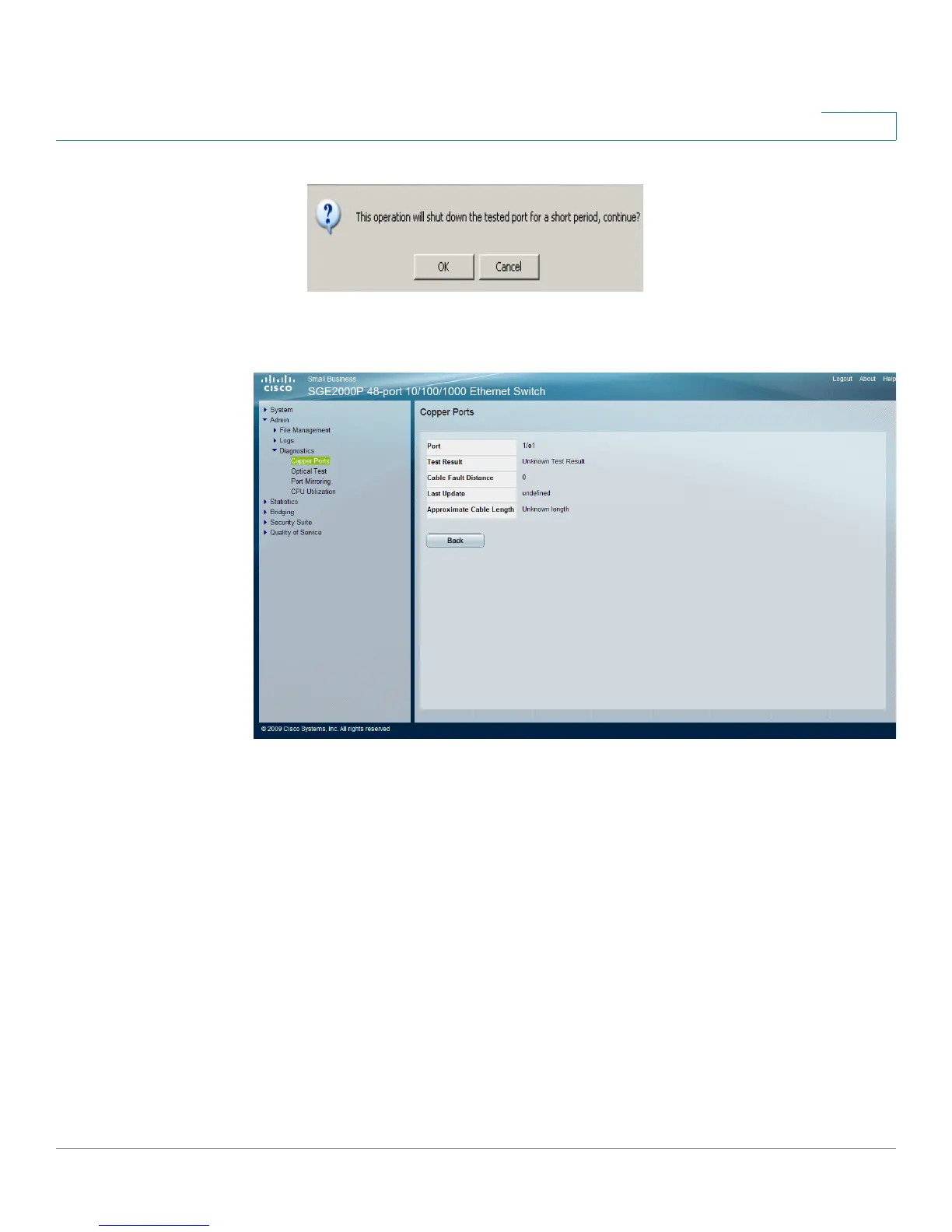

STEP 3 The following message appears:
STEP 4 Click OK, The Copper Ports Page opens:
Copper Ports Results Page
The Copper Ports Results Page contains the following fields:
Port — Specifies port to which the cable is connected.
Test Result — Displays the cable test results. Possible values are:
-
OK
— Indicates that a cable passed the test.
-
No Cable
— Indicates that a cable is not connected to the port.
-
Open Cable
— Indicates that a cable is connected on only one side.
-
Short Cable
— Indicates that a short has occurred in the cable.
Cable Fault Distance — Indicates the distance from the port where the cable
error occurred.
Last Update — Indicates the last time the port was tested.
