Viewing Statistics
Configuring RMON History
Cisco Small Business SFE/SGE Managed Switches Administration Guide 373
17
STEP 1 1. Click Statistics > RMON > History. The RMON History Control Page opens.

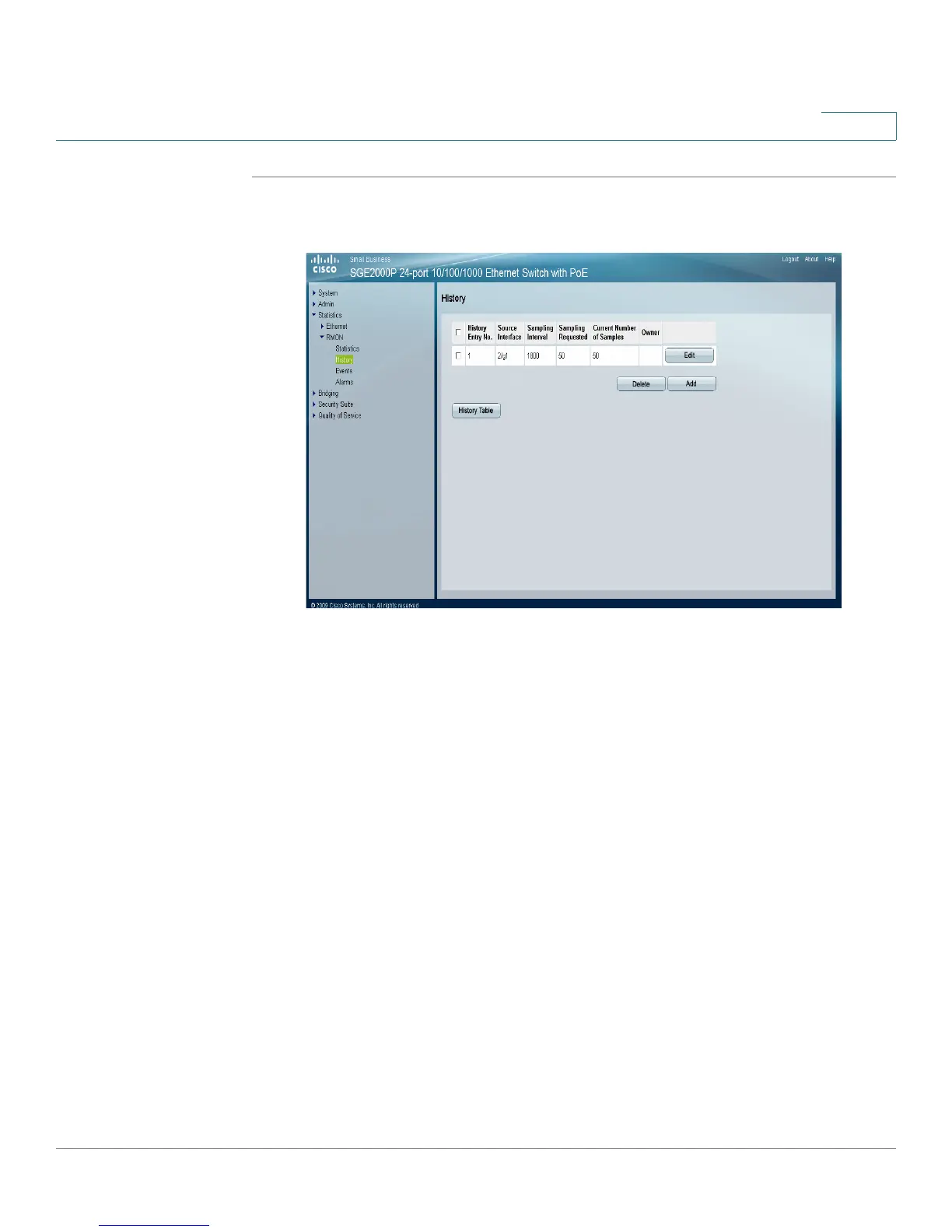

RMON History Control Page
The
RMON History Control Page contains the following fields:
• History Entry No. — Number automatically assigned to the table entry number.
• Source Interface — Displays the interface (port or LAG) from which the history
samples were taken. The possible field values are:
- Ports — Specifies the port from which the RMON information was taken.
- LAGs — Specifies the LAG from which the RMON information was
taken.
• Sampling Interval — Indicates the time in seconds that samplings are taken
from the ports. The field range is 1-3600. The default is 1800 seconds (equal to
30 minutes).
• Sampling Requested — Displays the number of samples to be saved. The field
range is 1-65535. The default value is 50.
• Current Number of Samples — Displays the current number of samples taken.
• Owner — Displays the RMON station or user that requested the RMON
information. The field range is 0-20 characters.
STEP 2 Click the Add button. The Add RMON History Page opens:

Cisco SGE2000 - Cisco - Gigabit Switch Specifications

General

Form Factor	Rack-mountable
Switching Capacity	48 Gbps
Forwarding Rate	35.7 Mpps
Layer	Layer 2
Power Supply	Internal
Management	Web-based, SNMP, CLI
MAC Address Table Size	8000 entries
VLANs	256
Features	Quality of Service (QoS), IGMP snooping, Port mirroring
Dimensions (W x D x H)	440 x 257 x 44 mm (17.3 x 10.1 x 1.73 in)
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20 to 70°C (-4 to 158°F)
Relative Humidity	10% to 90% non-condensing
Standards Compliance	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
