Viewing Statistics
Configuring RMON History
Cisco Small Business SFE/SGE Managed Switches Administration Guide 374
17

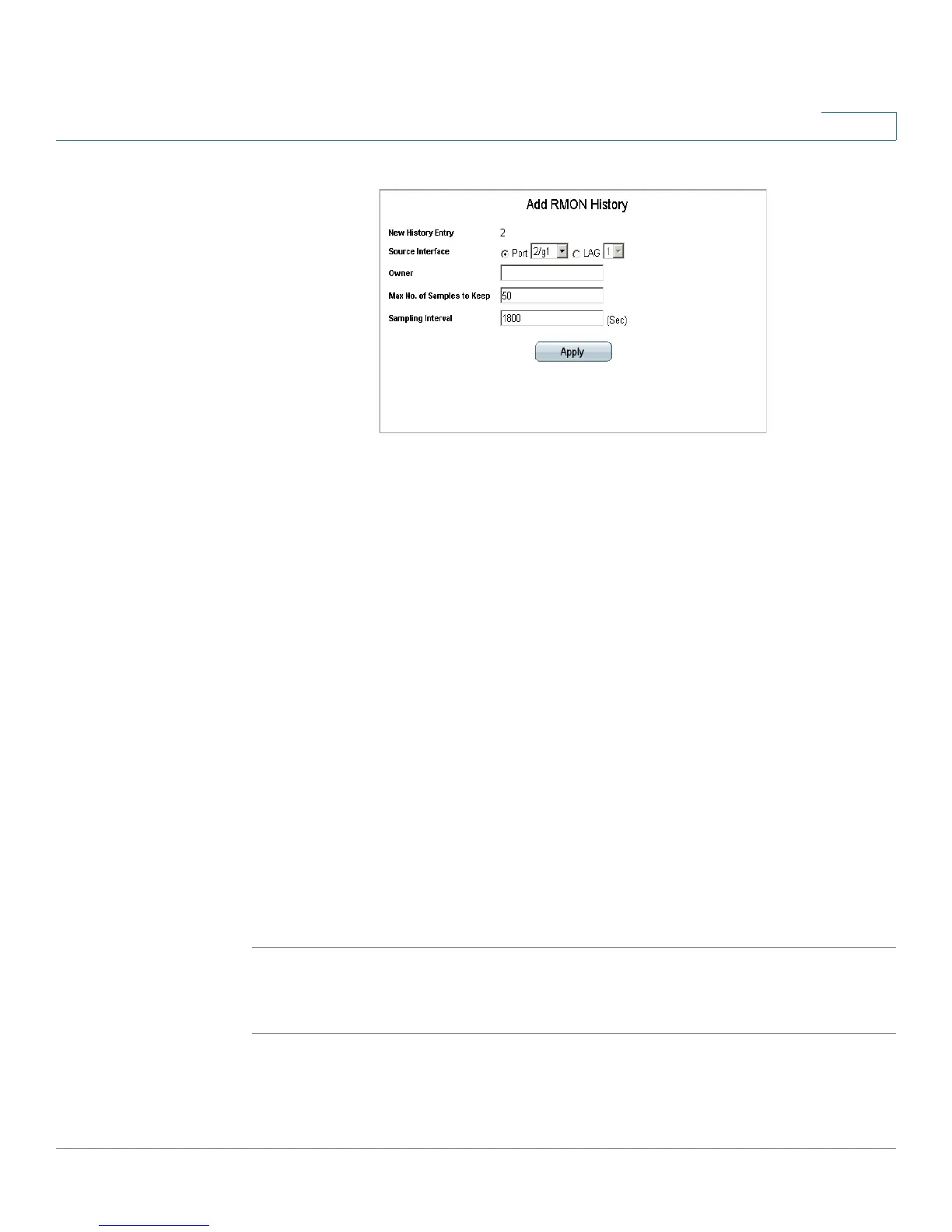

Add RMON History Page
The
Add RMON History Page contains the following fields:
• New History Entry — Number automatically assigned to the table entry
number.
• Source Interface — Select the interface (port or LAG) from which the history
samples will be taken. The possible field values are:
- Port — Specifies the port from which the RMON information is taken.
- LAG — Specifies the LAG from which the RMON information is taken.
• Owner — Displays the RMON station or user that requested the RMON
information. The field range is 0-20 characters.
• Max No. of Samples to Keep — Indicates the number of samples to save.
• Sampling Interval — Indicates the time in seconds that samplings are taken
from the ports. The field range is 1-3600. The default is 1800 seconds (equal to
30 minutes).
STEP 3 Define the relevant fields.
STEP 4 Click Apply. The entry is added to the RMON History Control Page , and the device
is updated.
Modifying RMON History Settings
STEP 1 Click Statistics > RMON > History. The RMON History Control Page opens.
STEP 2 Click the Edit button. The Edit RMON History Page opens:

Cisco SGE2000 - Cisco - Gigabit Switch Specifications

General

Form Factor	Rack-mountable
Switching Capacity	48 Gbps
Forwarding Rate	35.7 Mpps
Layer	Layer 2
Power Supply	Internal
Management	Web-based, SNMP, CLI
MAC Address Table Size	8000 entries
VLANs	256
Features	Quality of Service (QoS), IGMP snooping, Port mirroring
Dimensions (W x D x H)	440 x 257 x 44 mm (17.3 x 10.1 x 1.73 in)
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20 to 70°C (-4 to 158°F)
Relative Humidity	10% to 90% non-condensing
Standards Compliance	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
