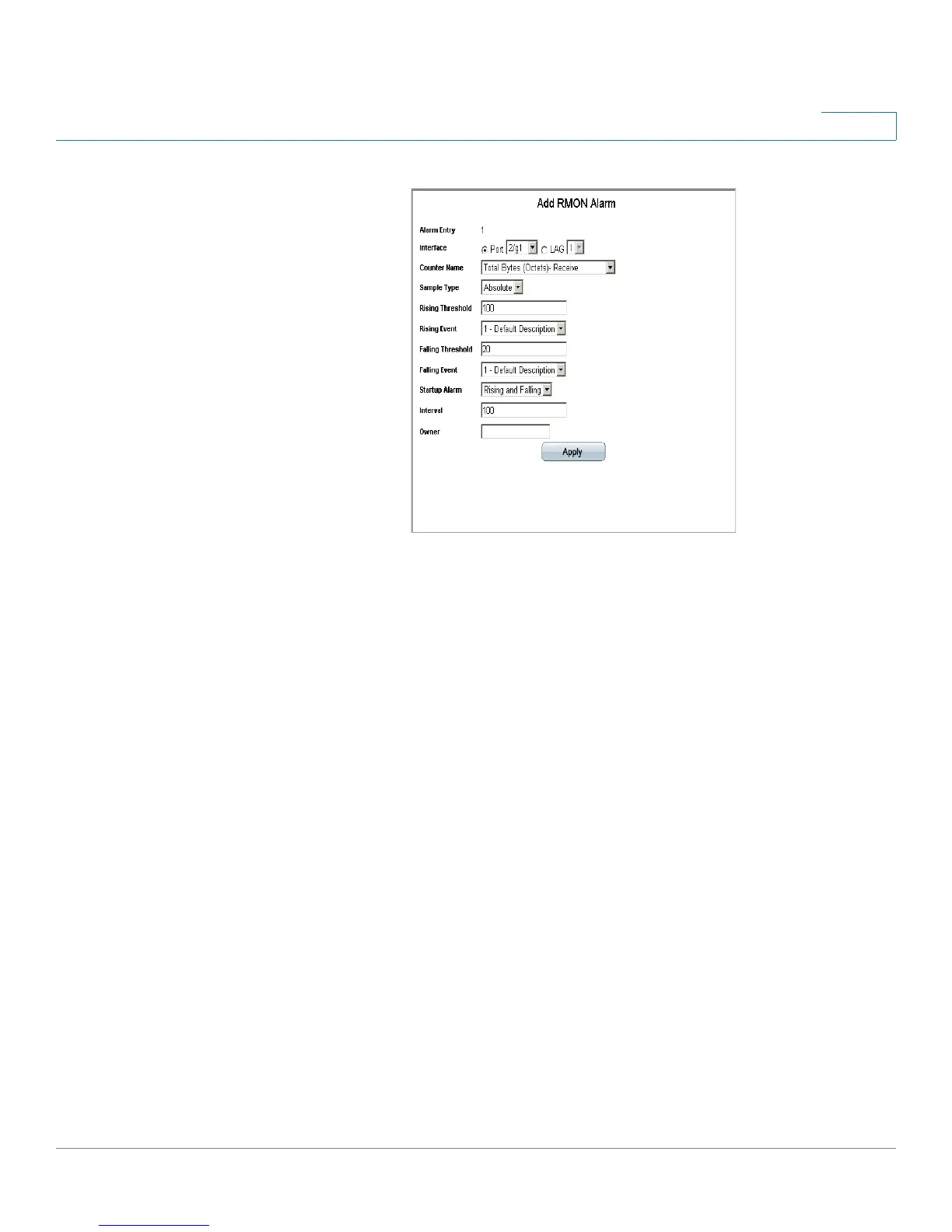

Add RMON Alarm Page
The
Add RMON Alarm Page
contains the following fields:
• Alarm Entry — Indicates the alarm entry number.
• Interface — Displays the interface (port or LAG) for which RMON statistics are
displayed. The possible field values are:
-
Port
— Displays the RMON statistics for the selected port.
-
LAG
— Displays the RMON statistics for the selected LAG.
• Counter Name — Displays the selected MIB variable.
• Sample Type — Defines the sampling method for the selected variable and
comparing the value against the thresholds. The possible field values are:
-
Delta
— Subtracts the last sampled value from the current value. The
difference in the values is compared to the threshold.
• Rising Threshold — Displays the rising counter value that triggers the rising
threshold alarm. The rising threshold is presented on top of the graph bars.
Each monitored variable is designated a color.
• Rising Event — Selects an event which is defined in the Events table that
triggers the rising threshold alarm. The Events Table is displayed in the
RMON
Events Page
.
