Viewing Statistics
Managing QoS Statistics
Cisco Small Business SFE/SGE Managed Switches Administration Guide 390
17

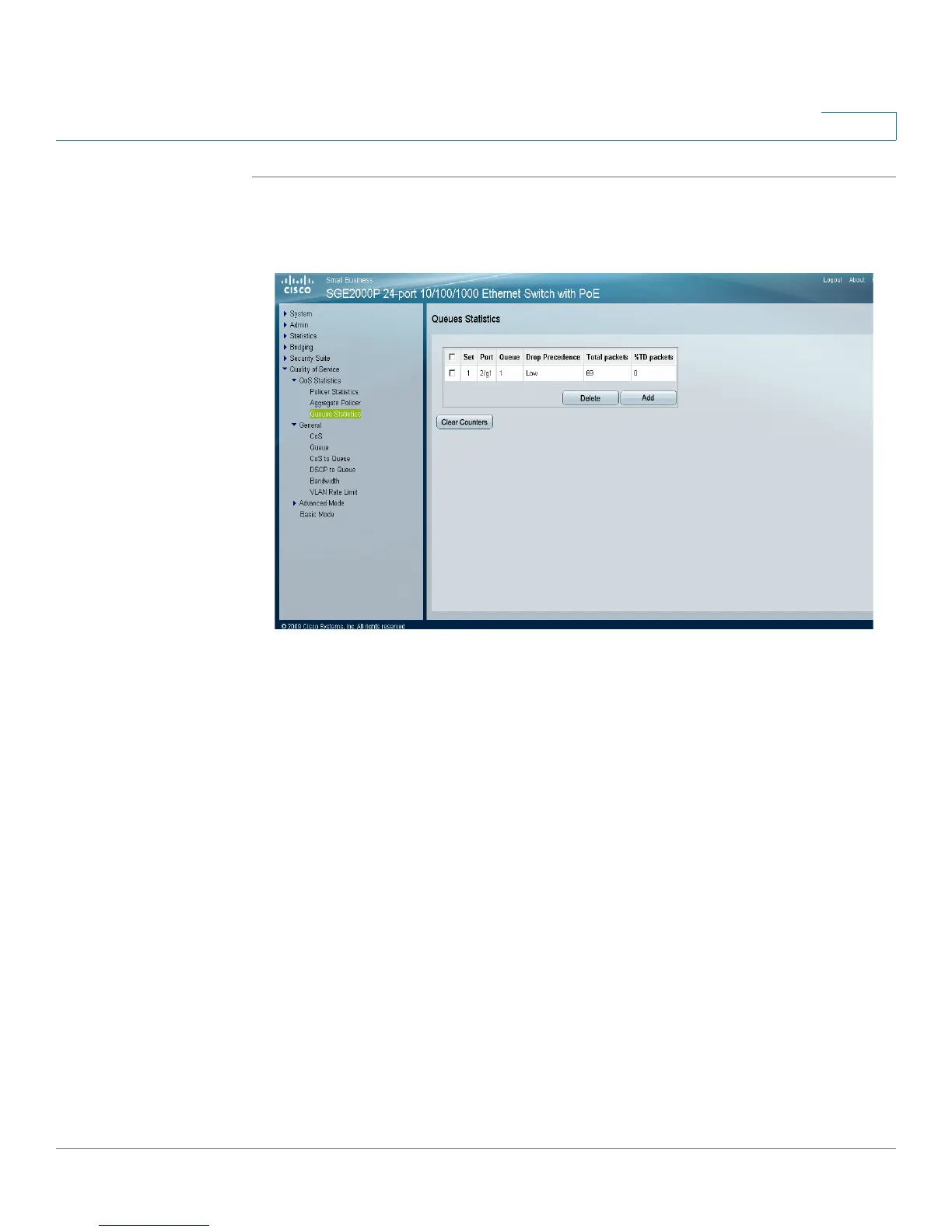

STEP 1 Click Quality of Service > QoS Statistics > Queues Statistics. The Queues
Statistics Page
opens:
Queues Statistics Page
The
Queues Statistics Page contains the following fields:
• Set — Displays the counter set. The possible field values are:
- Set 1 — Displays the statistics for Set 1. Set 1 contains all interfaces and
all queues with a high DP.
- Set 2 — Displays the statistics for Set 2. Set 2 contains all interfaces and
all queues with a low DP.
• Port — Displays the port for which the queue statistics are displayed.
• Queue — Displays the queue from which packets were forwarded or tail
dropped.
• Drop Precedence — Displays the drop precedence assigned to the packets
forwarded or tail dropped for which statistics are displayed.
• To t a l p a c k e t s — Displays the total number of packets forwarded or tail
dropped.
• %TD packets — Displays the percentage of packets that were tail dropped.
STEP 2 Click the Add button. The Add Queues Statistics Page opens:

Cisco SGE2000 - Cisco - Gigabit Switch Specifications

General

Form Factor	Rack-mountable
Switching Capacity	48 Gbps
Forwarding Rate	35.7 Mpps
Layer	Layer 2
Power Supply	Internal
Management	Web-based, SNMP, CLI
MAC Address Table Size	8000 entries
VLANs	256
Features	Quality of Service (QoS), IGMP snooping, Port mirroring
Dimensions (W x D x H)	440 x 257 x 44 mm (17.3 x 10.1 x 1.73 in)
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20 to 70°C (-4 to 158°F)
Relative Humidity	10% to 90% non-condensing
Standards Compliance	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
