Cisco SGE2000 - Cisco - Gigabit Switch Administration Guide

Configuring Device Security
Defining Access Methods
Cisco Small Business SFE/SGE Managed Switches Administration Guide 68
4

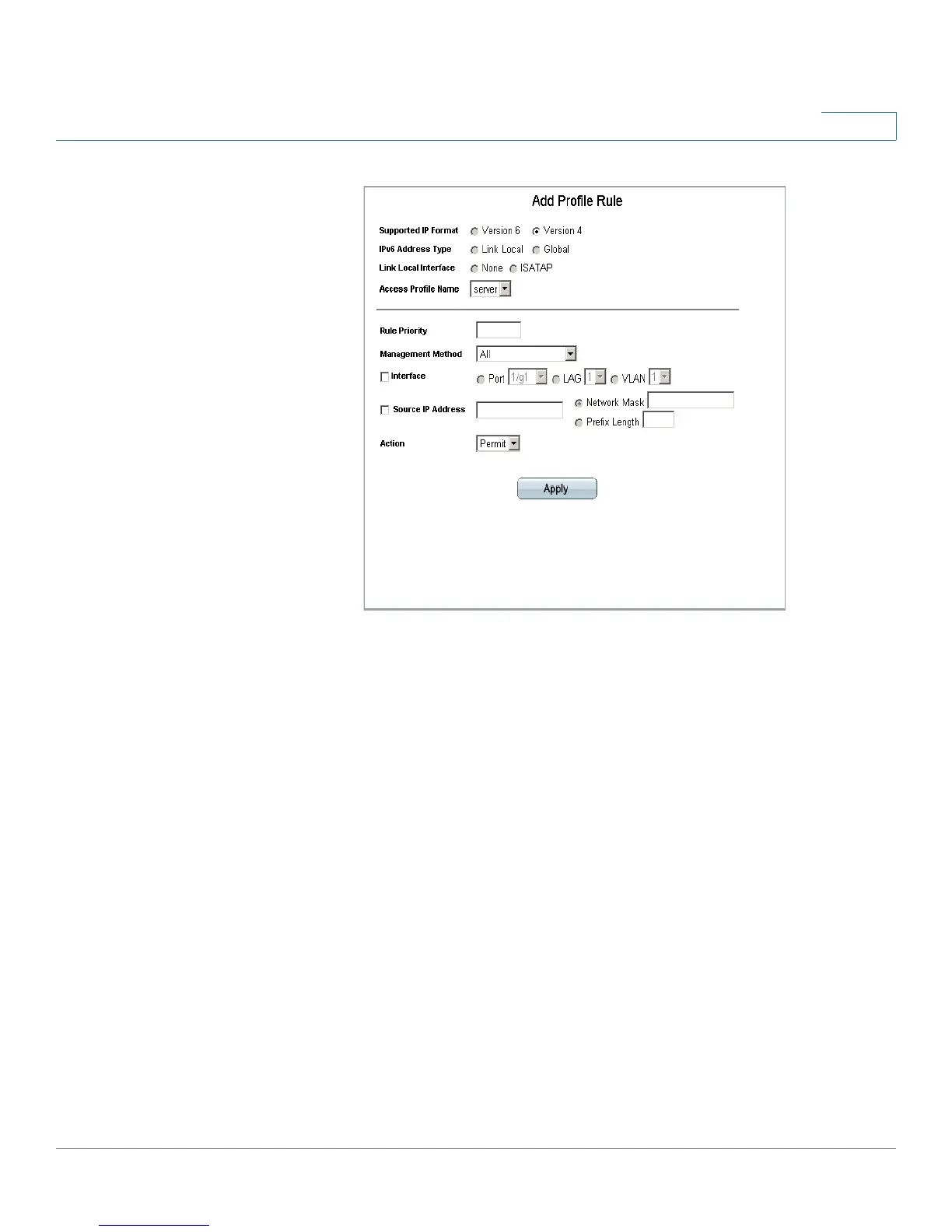

Add Profile Rule Page
The Add Profile Rule Page contains the following fields:
• Supported IP Format — Indicates the supported IP version. The possible
values are:
- Version 6 — Indicates the device supports IPv6.
- Version 4 — Indicates the device supports IPv4.
• IPv6 Address type — Displays the IPv6 Type. The possible field values are:
- Link Local — Indicates the IPv6 address is link-local, that uniquely
identifies hosts on a single network link. A Link-local address has a prefix
of ‘FE80’. The link-local addresses are not routable and can be used for
communication on the same network only.
- Global Unicast — Indicates the IPv6 address is a global Unicast IPV6
type which is visible and reachable from different subnets.
• Link Local Interface — Displays the VLAN ID on which IPv6 is configured.
• Access Profile Name — Defines the access profile name. The access profile
name can contain up to 32 characters.

Cisco SGE2000 - Cisco - Gigabit Switch Specifications

General

Form Factor	Rack-mountable
Switching Capacity	48 Gbps
Forwarding Rate	35.7 Mpps
Layer	Layer 2
Power Supply	Internal
Management	Web-based, SNMP, CLI
MAC Address Table Size	8000 entries
VLANs	256
Features	Quality of Service (QoS), IGMP snooping, Port mirroring
Dimensions (W x D x H)	440 x 257 x 44 mm (17.3 x 10.1 x 1.73 in)
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20 to 70°C (-4 to 158°F)
Relative Humidity	10% to 90% non-condensing
Standards Compliance	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
