Chapter 11 Convenient Functions
11-29
Step 2: The users have to click until the system lead them to the third step.

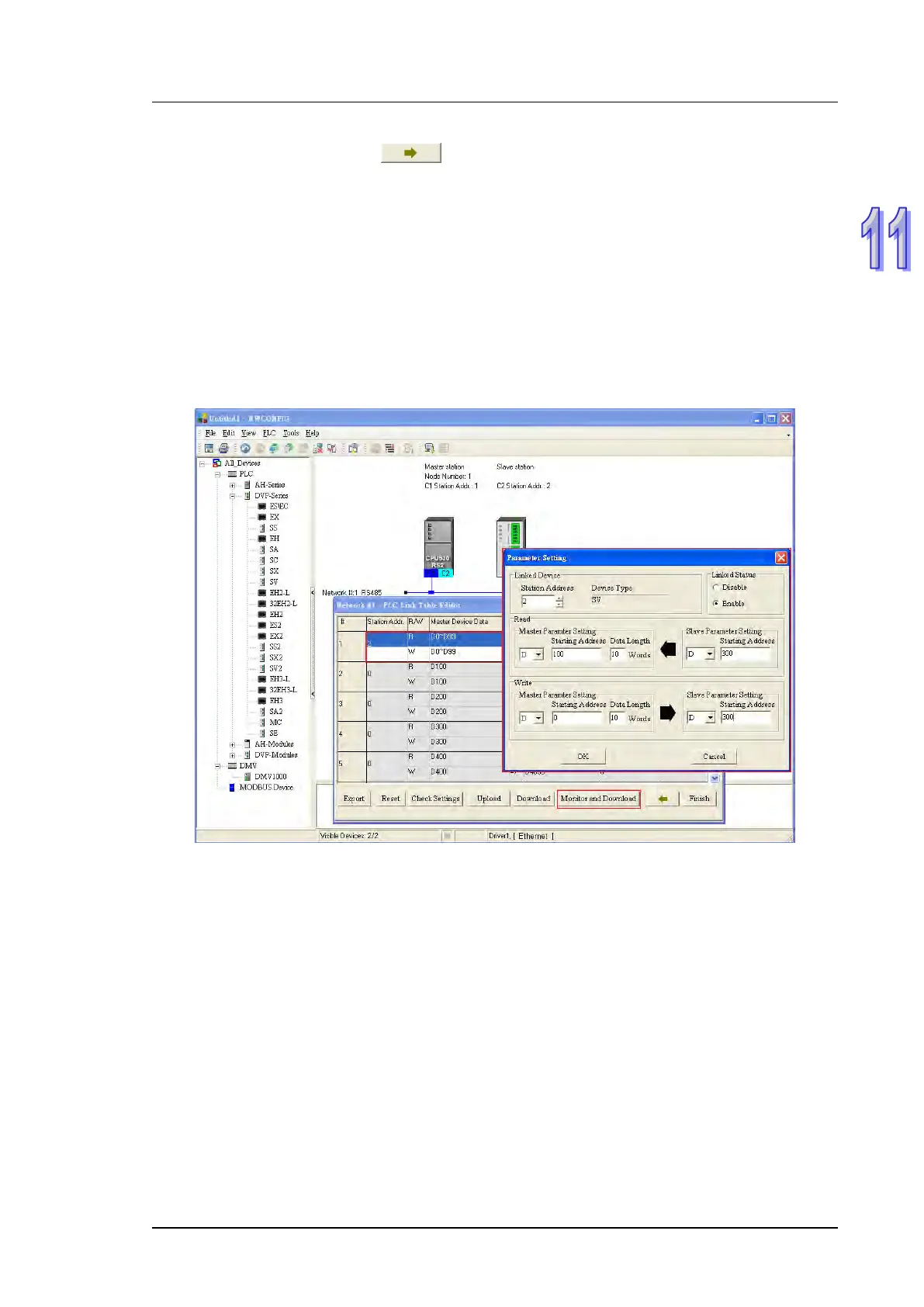

A. After the users double-click 2 in the Station Addr. cell, the Parameter Setting window will
appear.
B. In the Master Parameter Setting section in the Read section, the users have to select D in the
drop-down list box, type 100 in the Starting Address box, and type 10 in the Data Length box.
In the Slave Parameter Setting section in the Read section, the users have to select D in the
drop-down list box, and type 300 in the Starting Address box. In the Master Parameter
Setting section in the Write section, the users have to select D in the drop-down list box, type 0
in the Starting Address box, and type 10 in the Data Length box. In the Slave Parameter
Setting section in the Write section, the users have to select D in the drop-down list box, and
type 300 in the Starting Address box.
C. After the parameters in the Parameter Setting window are set, the users can click OK in the
Parameter Setting window, and click Monitor and Download in the PLC Link Table Editor
window.
