AH500 Hardware and Operation Manual
11-30

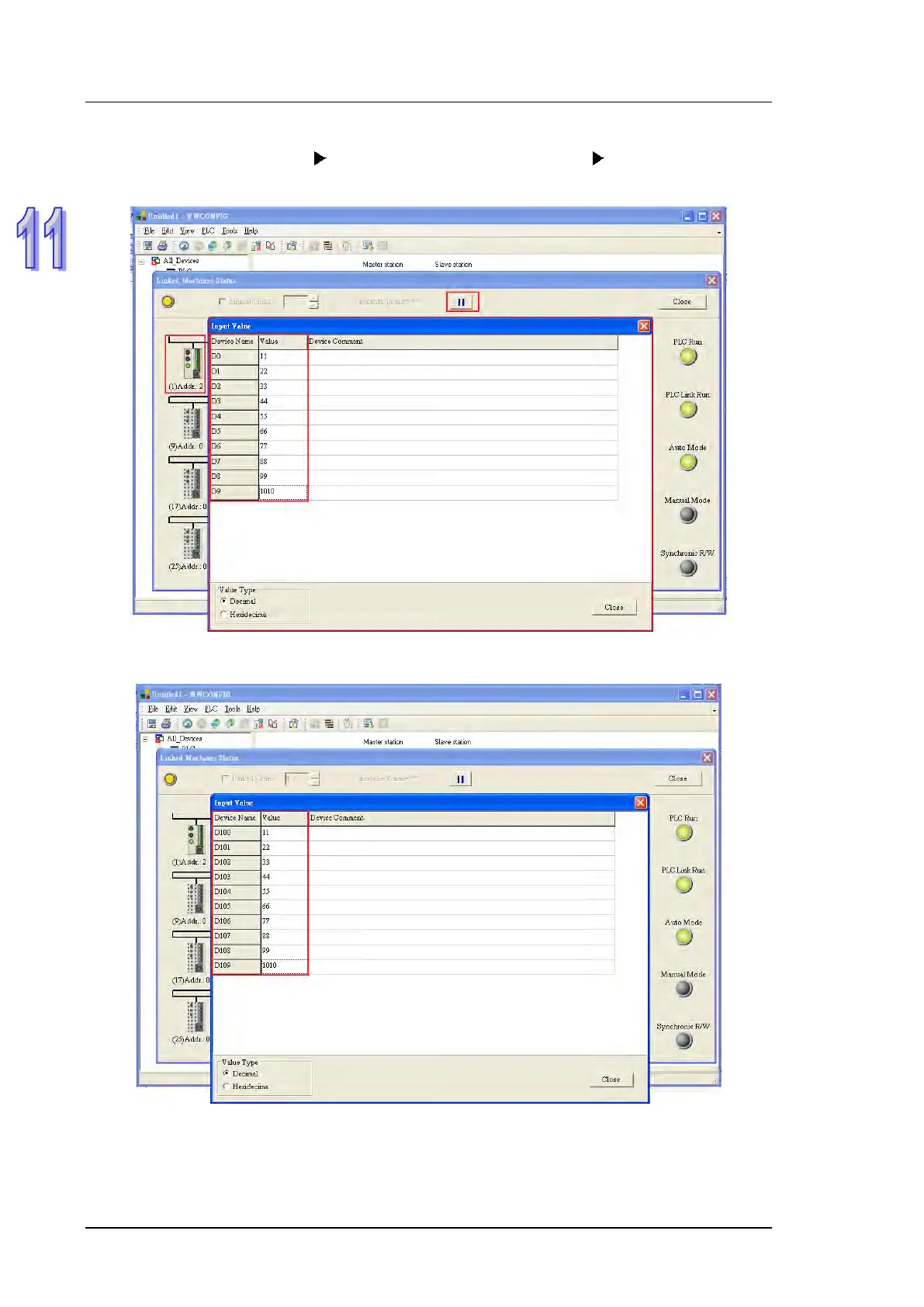

Step 3:
A. After the users click
in the Linked Machines Status window, will become ∥.
B. After the users right-click (1) Addr,: 2, they have to click Write Register on the context menu.
C. The users have to type the values shown in the figure below in the Input Value window.
Step 4: The users have to right-click (1) Addr,: 2, and click Read Register on the context menu. The
values in the Input Value window indicate that the data exchange is preformed correctly.
