Loading the vehicle
A

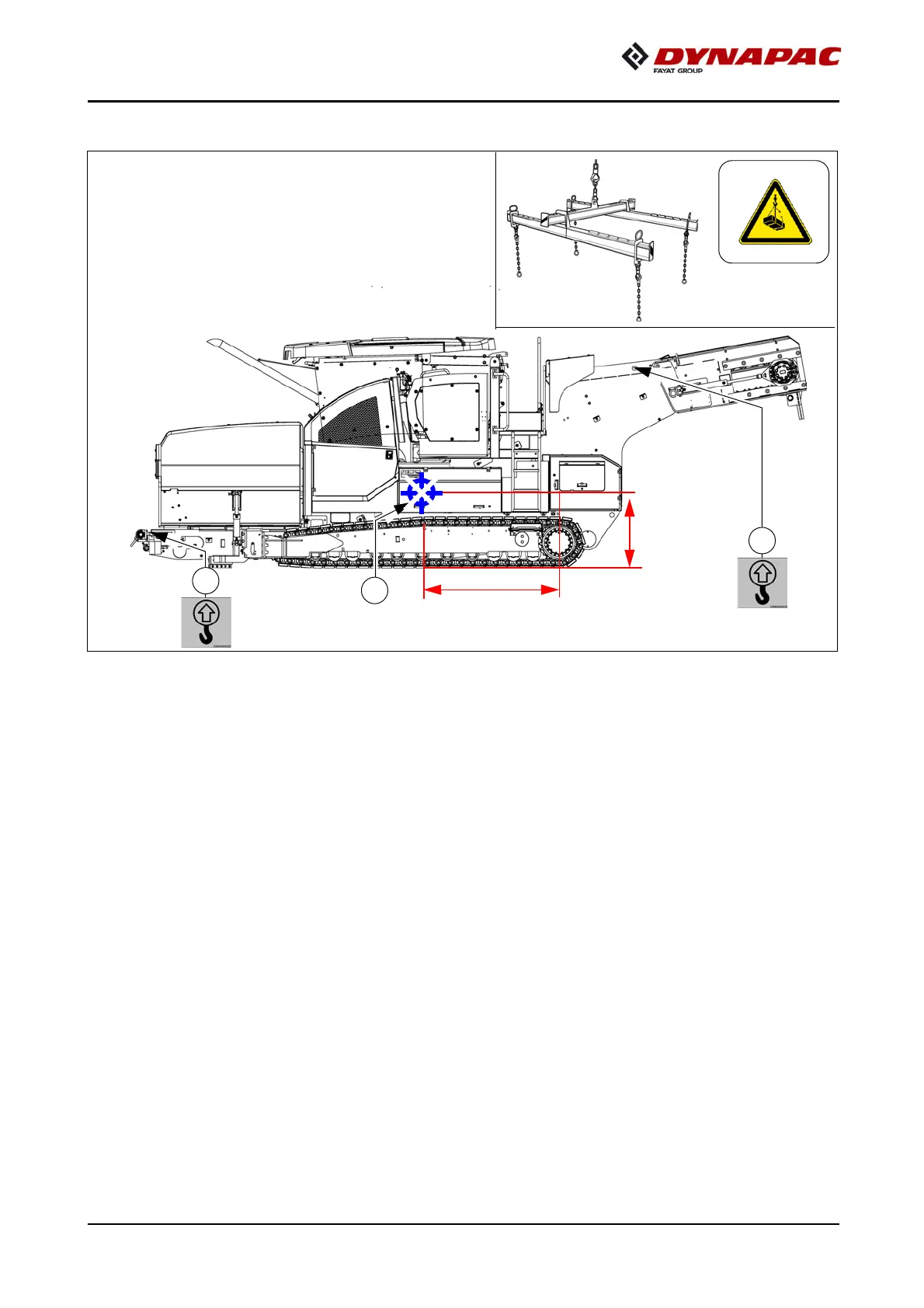

Four lifting eyes (1, 2) are provided for loading the vehicle with a crane.
- Reduce the vehicle to its basic width.
- Lower the front area of the vehicle chassis by completely retracting the drive
unit
cylinders.
- Swivel in the operating panel guide and seat consoles; insert the relevant locking
bolts appropriately.
- Close the hopper and set the hopper transport safeguards on both sides.
- Switch the vehicle off.
- Attach and secure the protective hood to protect the operating panel.
- Remove protruding or loose parts (see chapters E and D).
- Then lower and set the latches properly on both sides:
A
See section entitled "Protective roof"
- Attach lifting gear to the four attachment points (1, 2).
m
The max. permissible attachment point load at the attachment points is: 73.5 kN.
m
The permissible load applies in the vertical direction!
m
Make sure that the feeder remains in a horizontal position during transportation!
