E 22

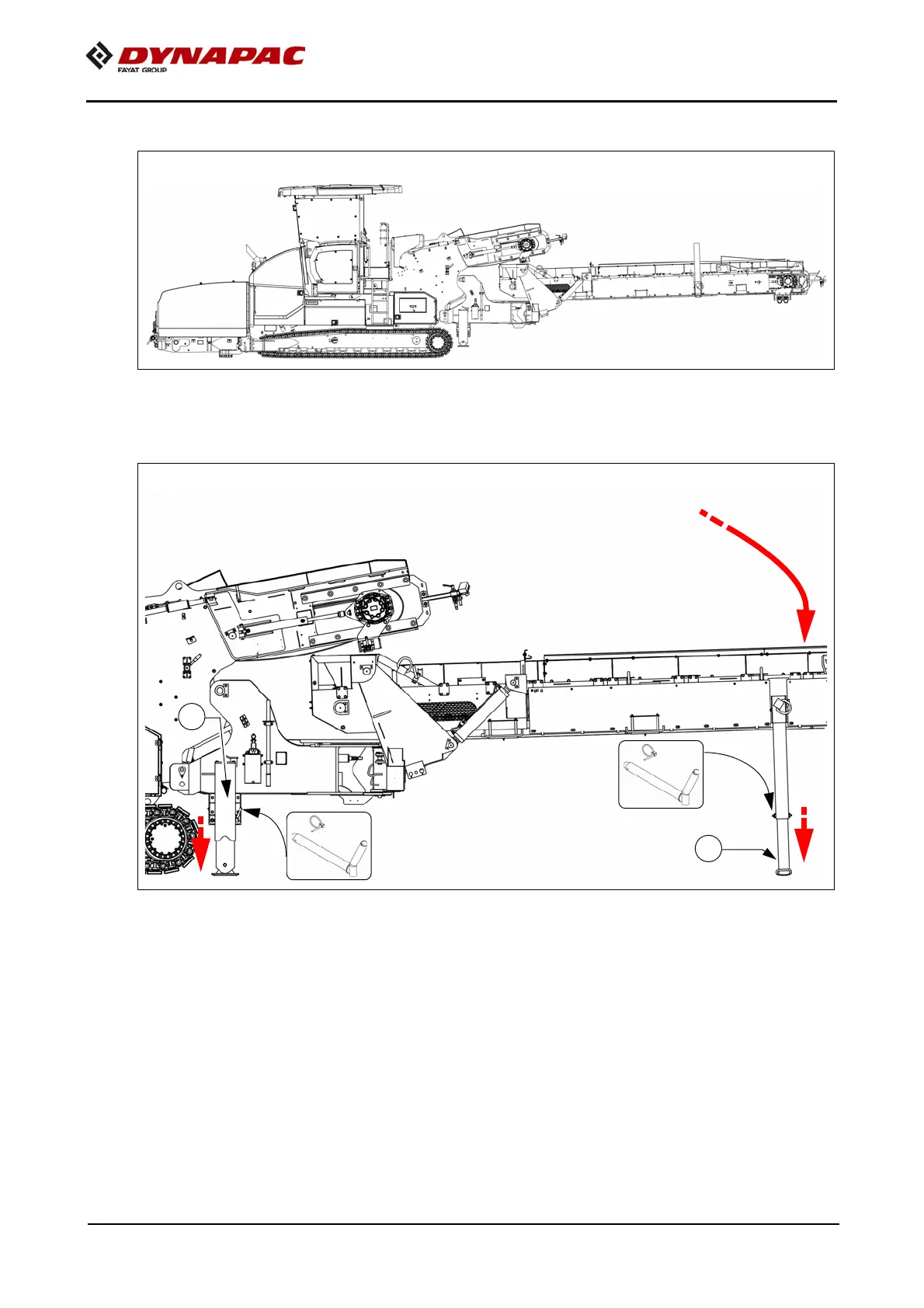

5 Remove slewing belt SW6500 (o)
- The vehicle is on a smooth surface with sufficient load rating.
- Retract the chassis cylinders to the full extent.
- Lower the slewing belt so that the rear standing legs (1) can be lowered. Lower the
standing legs into the lower position by hand and secure them here with the corre-
sponding retaining bolt.
- Using the pump, extend the lift supports (2) until they are just above the ground and
secure with the corresponding retaining bolt.
A
If necessary, adjust the changeover valve at the pump.
