1.2 Maintenance points
Conveyor belt tension (1)

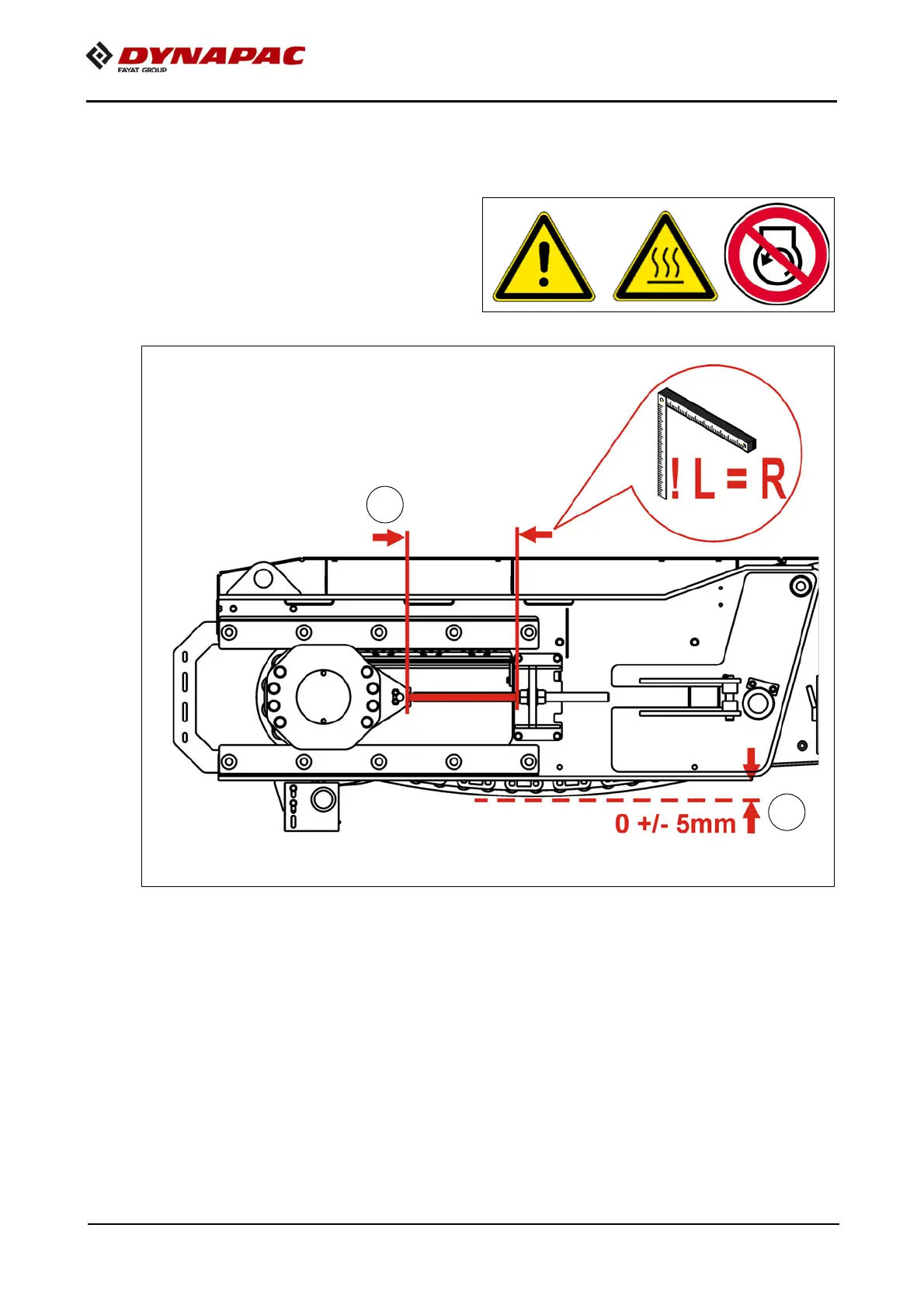

Check tension:
m
When the conveyor belt end piece is in the horizontal position, conveyor belt
sag
(A) must be correctly at the marked position to the lower edge of the chain must
be
0 mm +/- 5 mm!
m
After completing the adjustments, check whether the belt tension has been restored
evenly on both sides. The length of the spindle (B) must be identical on both sides!
