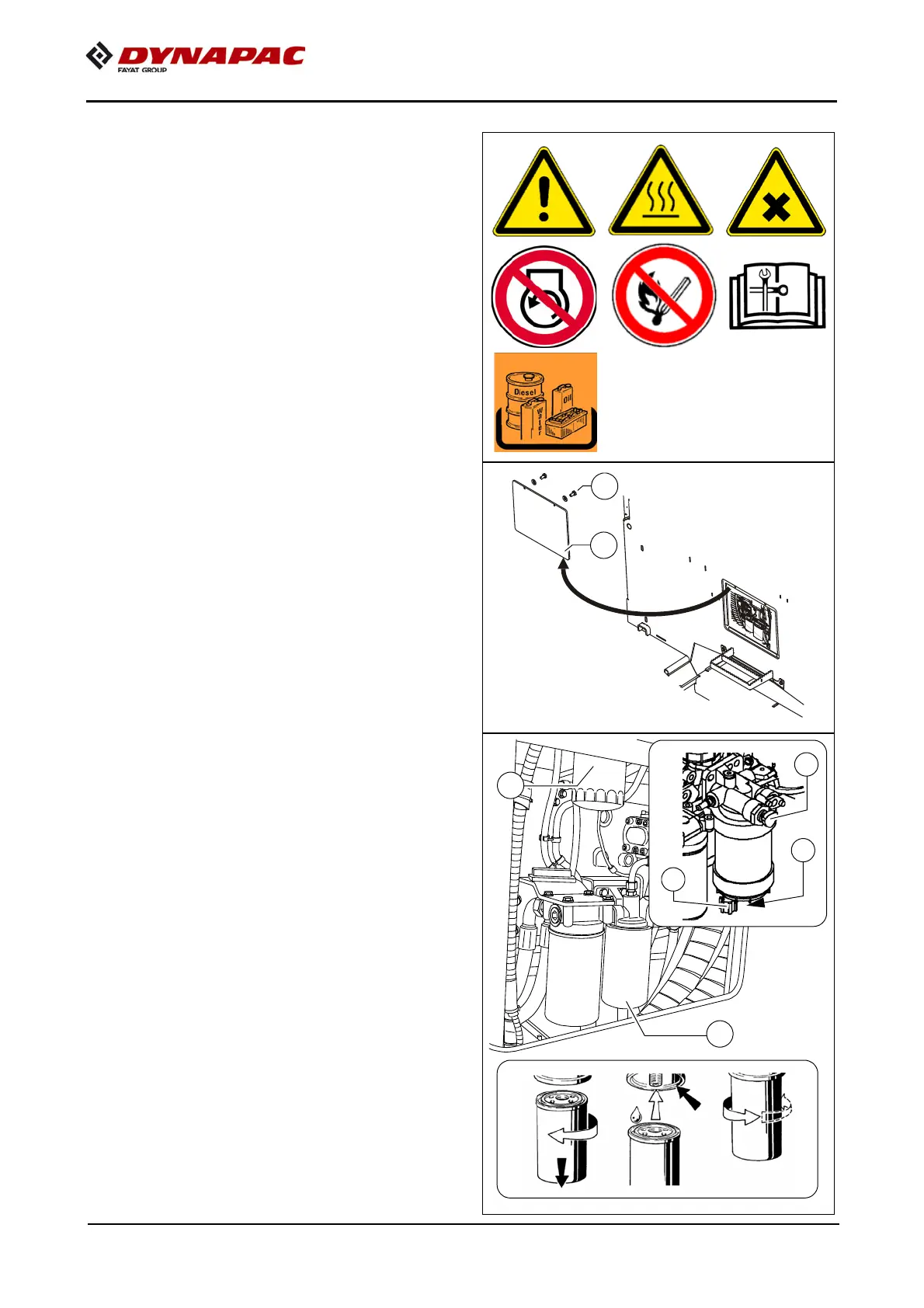

Dynapac MF2500CS - Engine fuel system (3)

F 52 12
Engine fuel system (3)
A
All filters are accessed via the service
flap (A) on the vehicle's centre wall:
- Remove the screws (B) from the inner
side of the frame and remove the serv-
ice flap (A).
- After completing the maintenance
work, reinstall the service flap (A)
properly.
A
The fuel filter system consists of two filters:
- Prefilter with water separator (C)
- Main filter (D)
Prefilter - draining of water
A
Drain the collecting vessel at regular in-
tervals, or in response to an error mes-
sage from the engine control unit.
- Drain off separated water at the cock (E)
and collect, then close the cock again.
B
A
D
C
A
G
F
E
