1.2 Maintenance points
Conveyor belt tension (1)

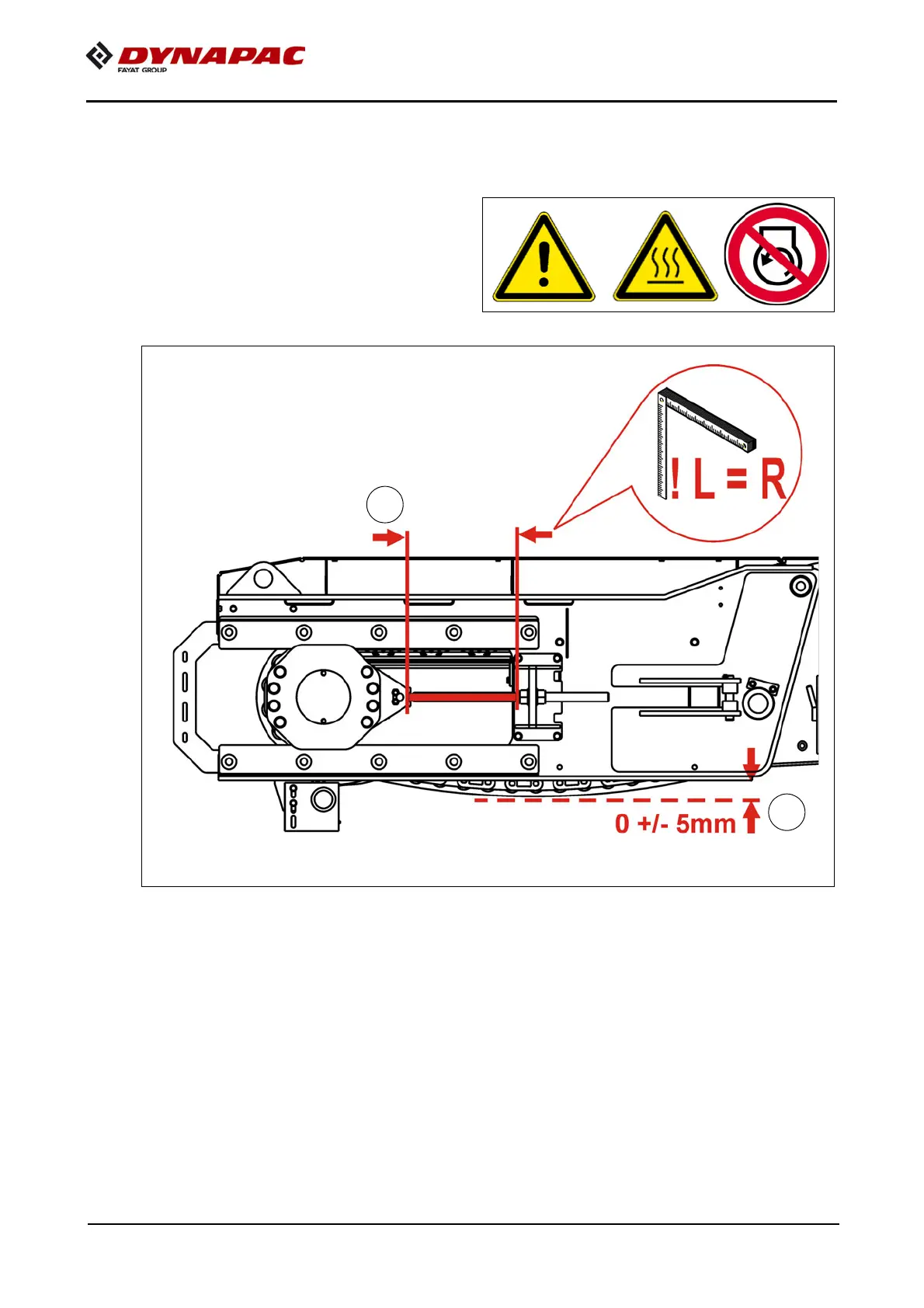

Check tension:
m
When the conveyor belt end piece is in the horizontal position, conveyor belt
sage
must be correctly at the marked position to the lower edge of the chain must be
0 mm +/- 5 mm!
m
After completing the adjustments, check whether the belt tension has been restored
evenly on both sides. The length of the spindle (B) must be identical on both sides!
