D 30 24
Chain lubricating system
A

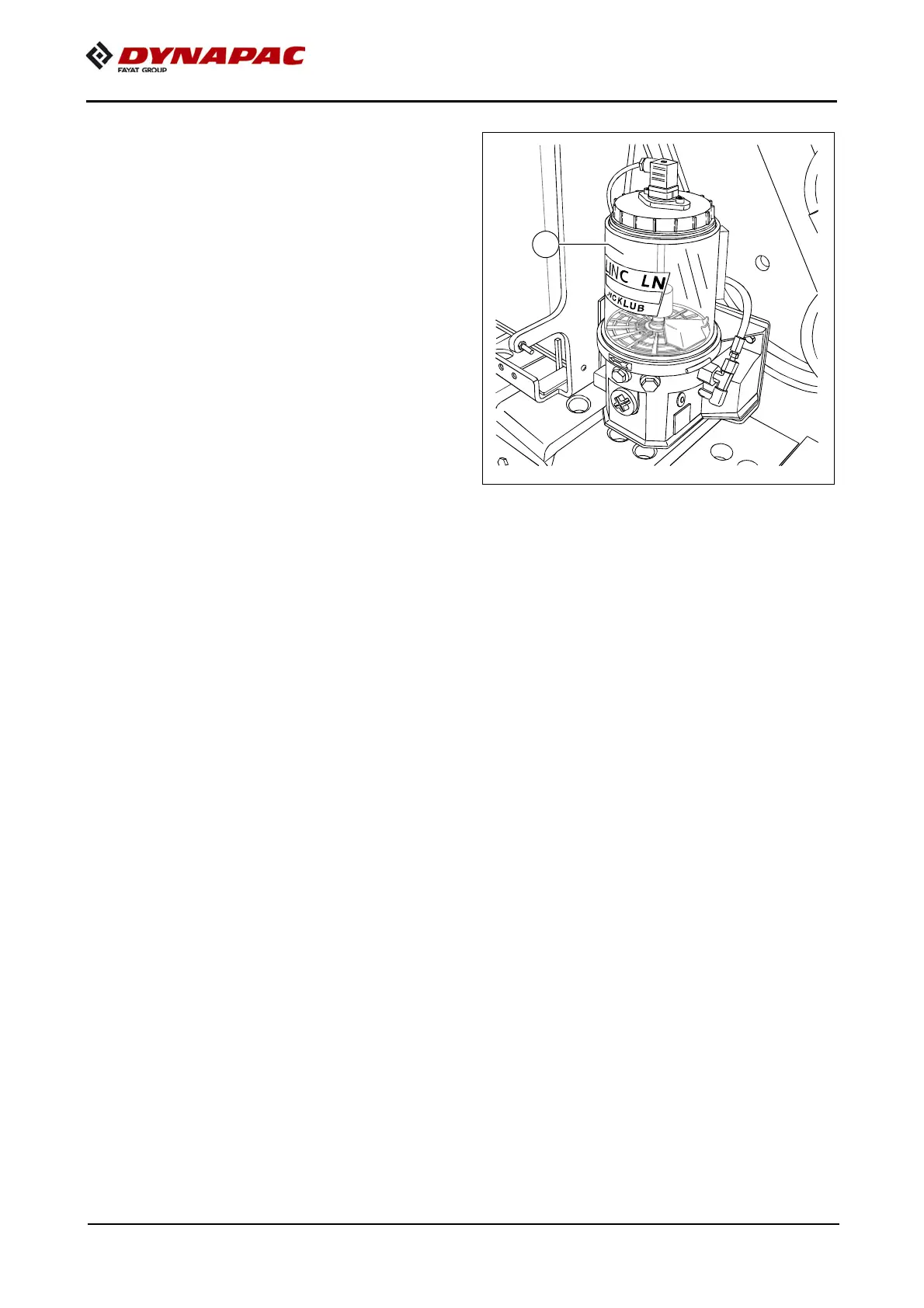

The central lubrication unit is located be-
hind the left lateral flap.
The reservoir (1) is filled with chain oil
and ensures that the conveyor belt chain
links are lubricated at set intervals
of time.
A
Factory setting of the chain lubrication
system operating intervals when the
conveyor belt is running:
4 minutes' operation / 20 minutes' break.
A
Observe the instructions in section
"Maintenance"!
