Dynapac MF2500CS - Mount slewing belt SW5500 (o)

E 6
3 Mount slewing belt SW5500 (o)

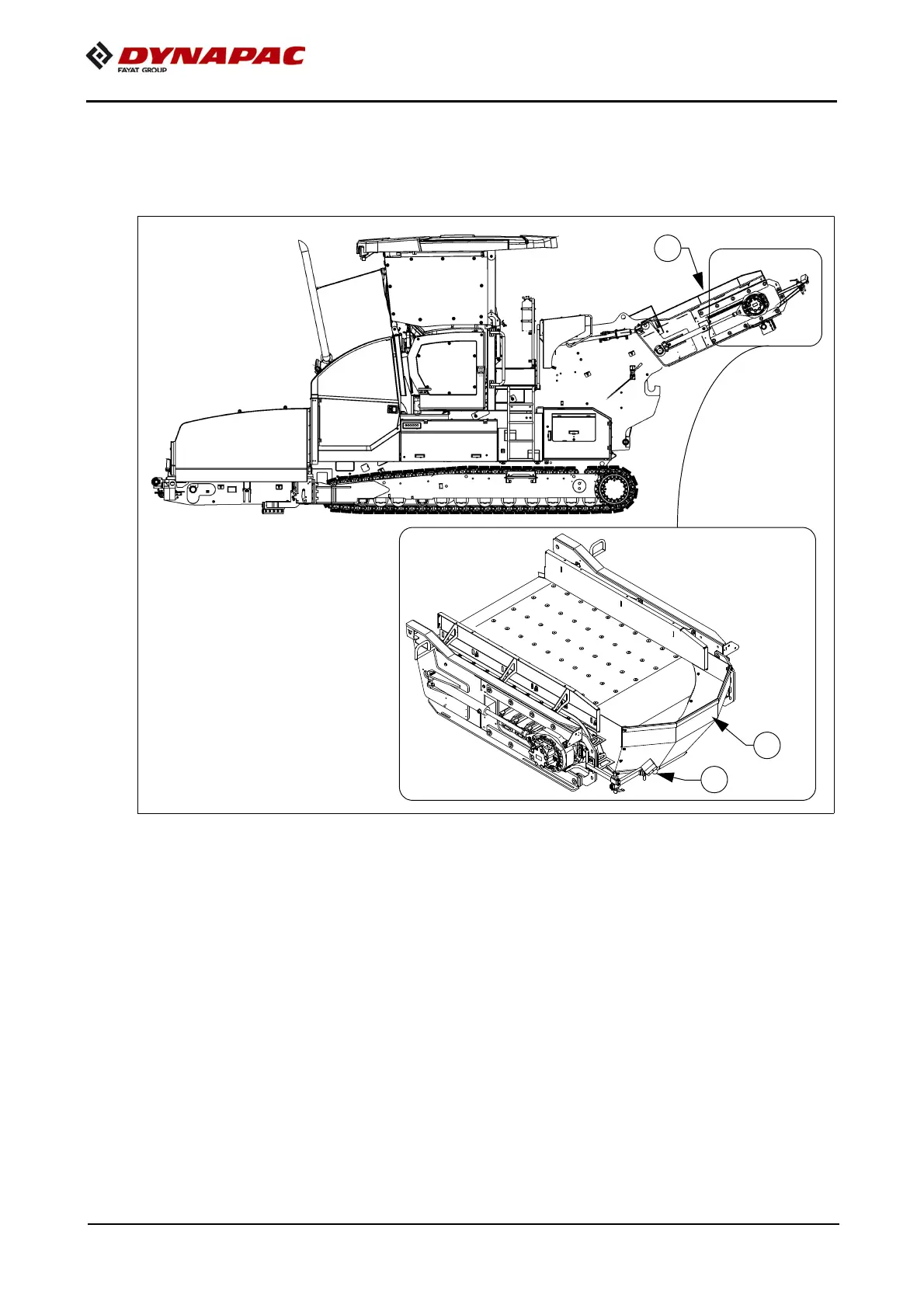

Preparing the vehicle
- Place the vehicle on a flat surface with adequate load rating.
- Dismantle the ultrasonic sensor and holder (1).
- Dismantle the stone guard, fit the material chute (2) to the conveyor belt.
A
The material chute is included in the scope of supply of the slewing belt.
- Raise the conveyor belt (3) to max. position (o).
- Switch the drive engine off and remove the main key.
3
2
1
