Suction/return flow hydraulic filter (2)
Carry out filter replacement according
to the interval or the indicator lamp in the
operating panel!

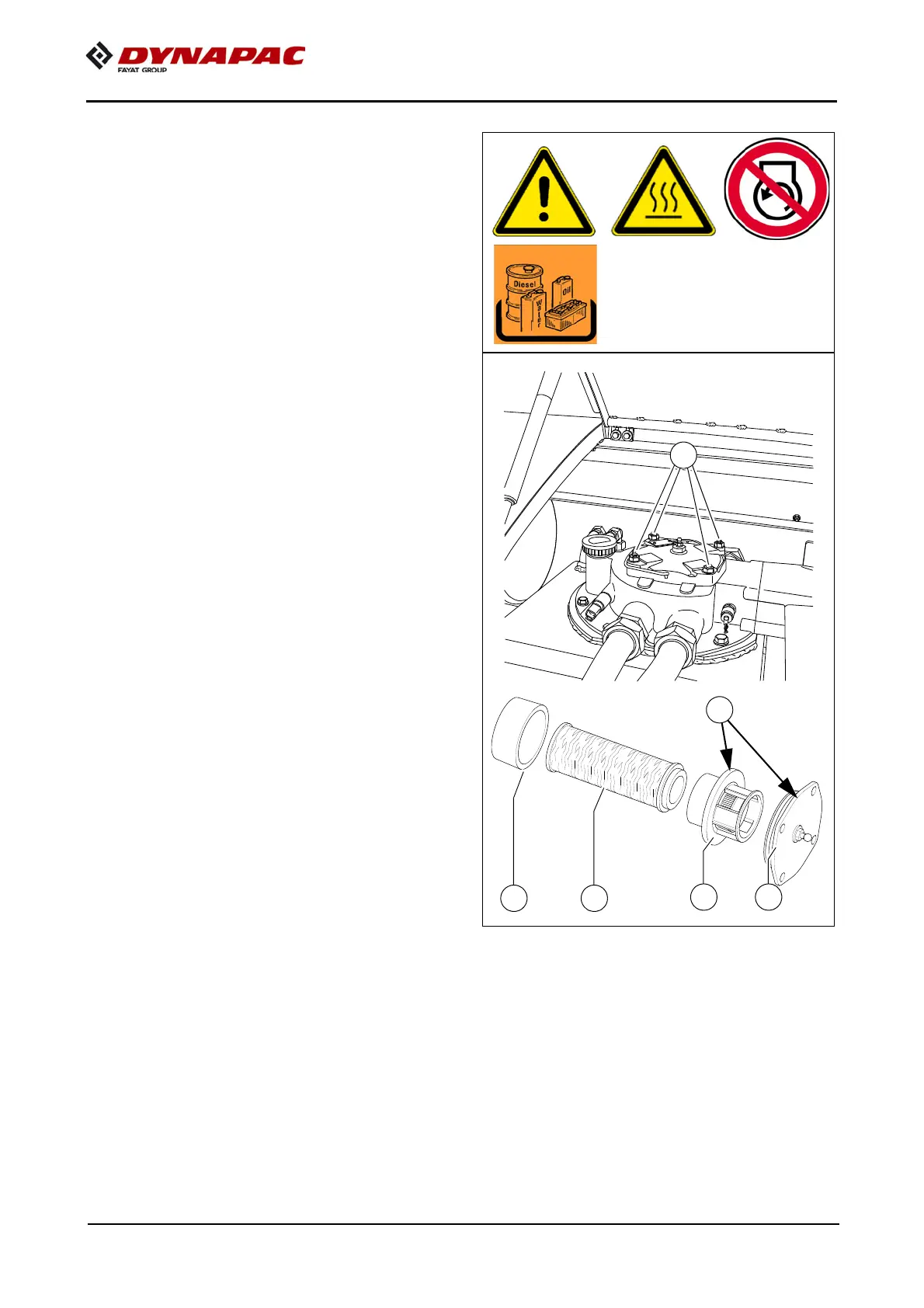

- Remove cover securing screws (A)
and lift off cover.
- Disassemble the removed unit into:
- Cover (B)
- Separating plate (C)
-Filter (D)
- Dirt trap (E)
- Clean the filter housing, cover, sepa-
rating plate and dirt trap.
- Check the O-rings (F), replace if nec-
essary.
- Coat the sealing surfaces and O-rings
with clean operating fluid.
m
The filter must be bled following
filter replacement!
F
E D
C B
A
