1.2 Maintenance points

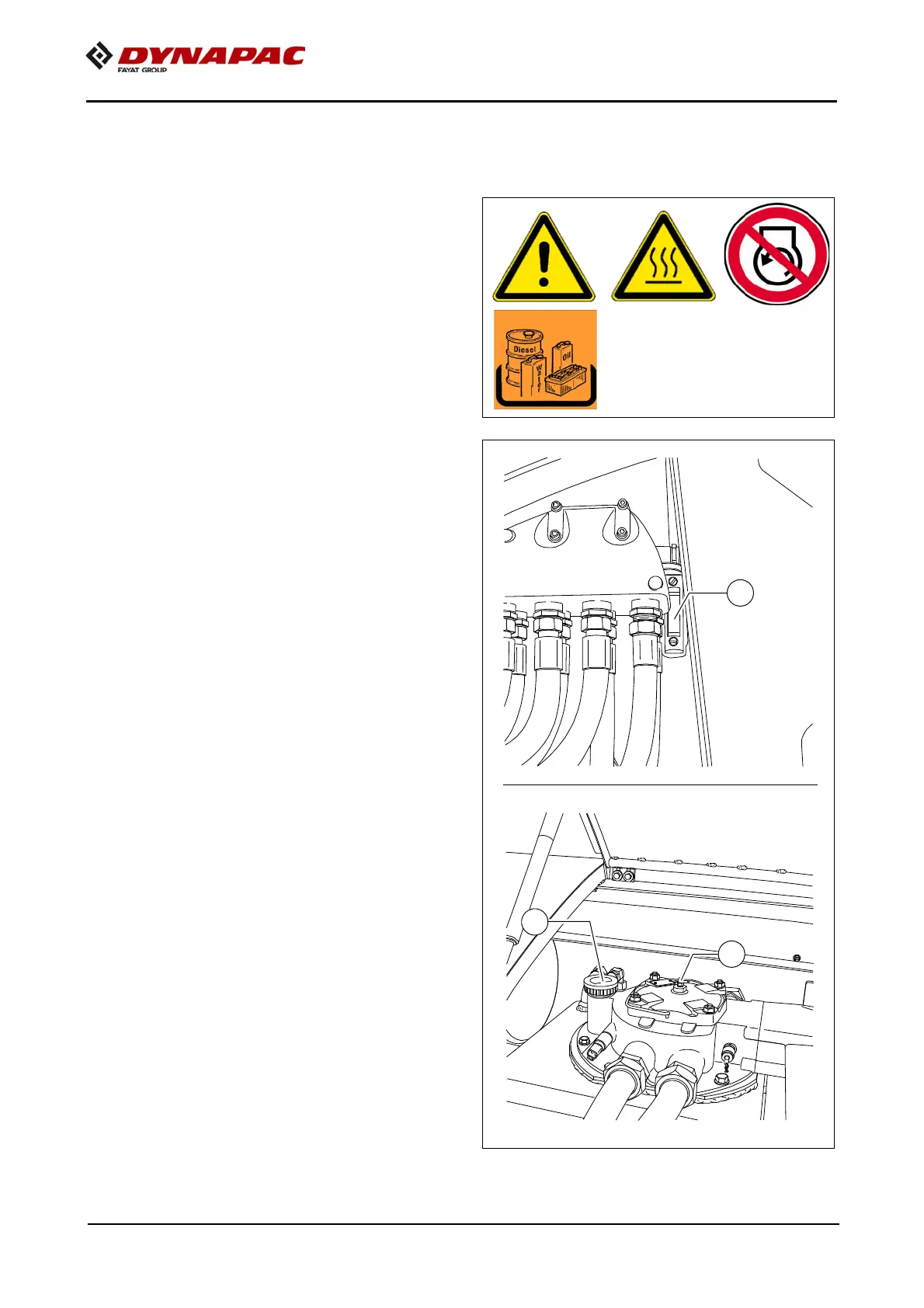

Hydraulic oil tank (1)
- Check oil level on sight glass (A).
A
The oil level must be up to the centre
of the sight glass when the cylinders are
retracted.
A
If all the cylinders are extended, the level
can fall below the sight glass.
A
The sight glass is located on the side of
the tank.
For filling in the oil:
- Remove cap (B).
- Fill in oil through the filler opening until
the oil level rises to the centre of the
sight glass (A) (+/- 5 mm).
- Screw cap (B) on again.
A
Regularly remove dust and dirt from the
oil tank vent (C). Clean the surfaces of
the oil cooler.
m
Use only the recommended hydraulic
oils - see section "Recommended hy-
draulic oils".
A
When filling for the first time, all hydraulic
cylinders should be extended/retracted
at least 2x for ventilation!
