Engine lube oil system (2)

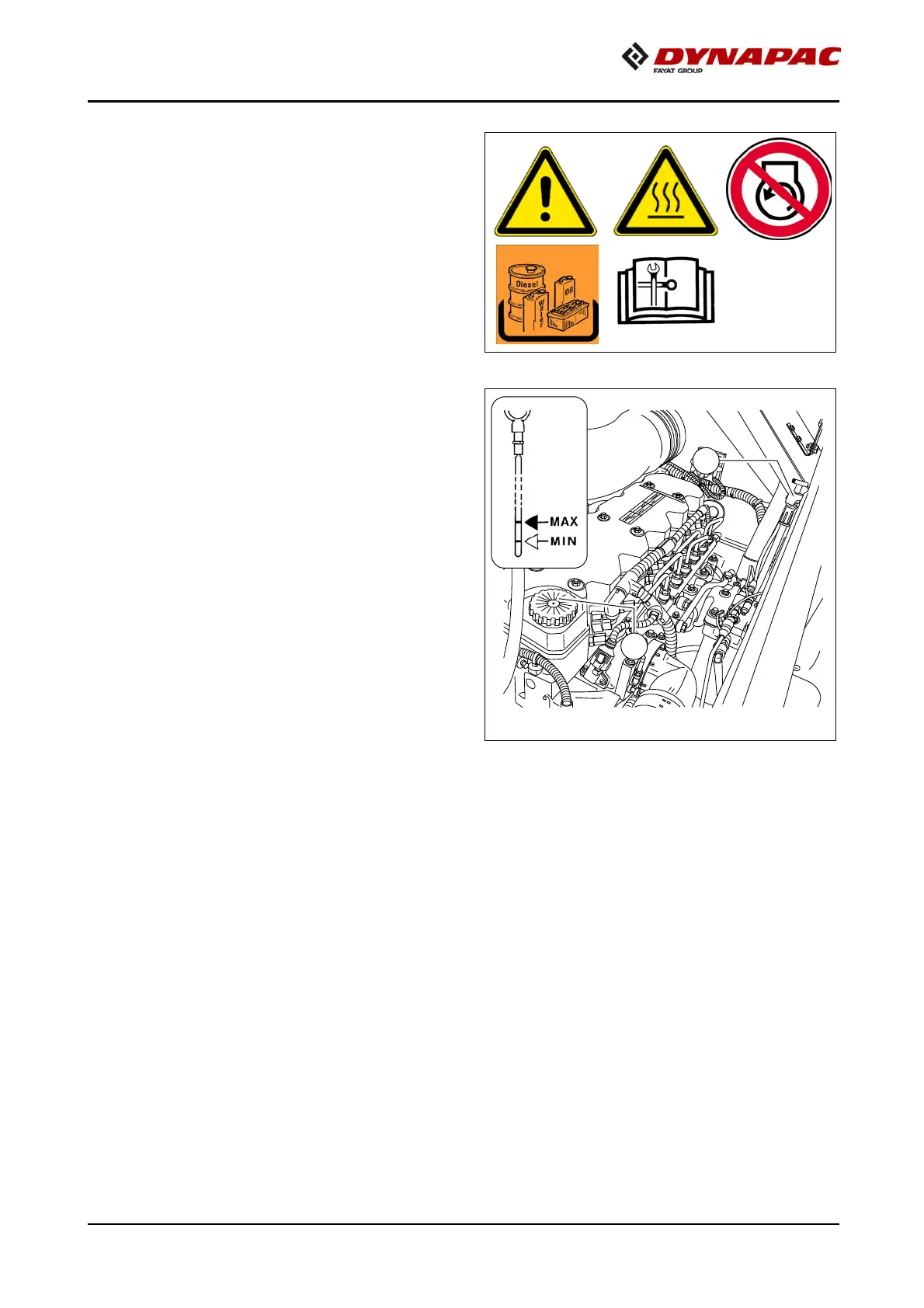

Check oil level
A
In case of correct oil level, the oil is
between the two notches of the sensor
rod (A).
A
Only check the oil level when the vehicle
is in a horizontal position!
m
Too much oil in engine damages gas-
kets; too little oil results in overheating
and engine destruction.
For filling in the oil:
- Remove cap (B).
- Fill up oil to correct level.
- Return cap (B).
- Use sensor rod to check level again.
B
A
