Dynapac MF2500CS - Slewing assistant display and setting menu (o)

D 23 21

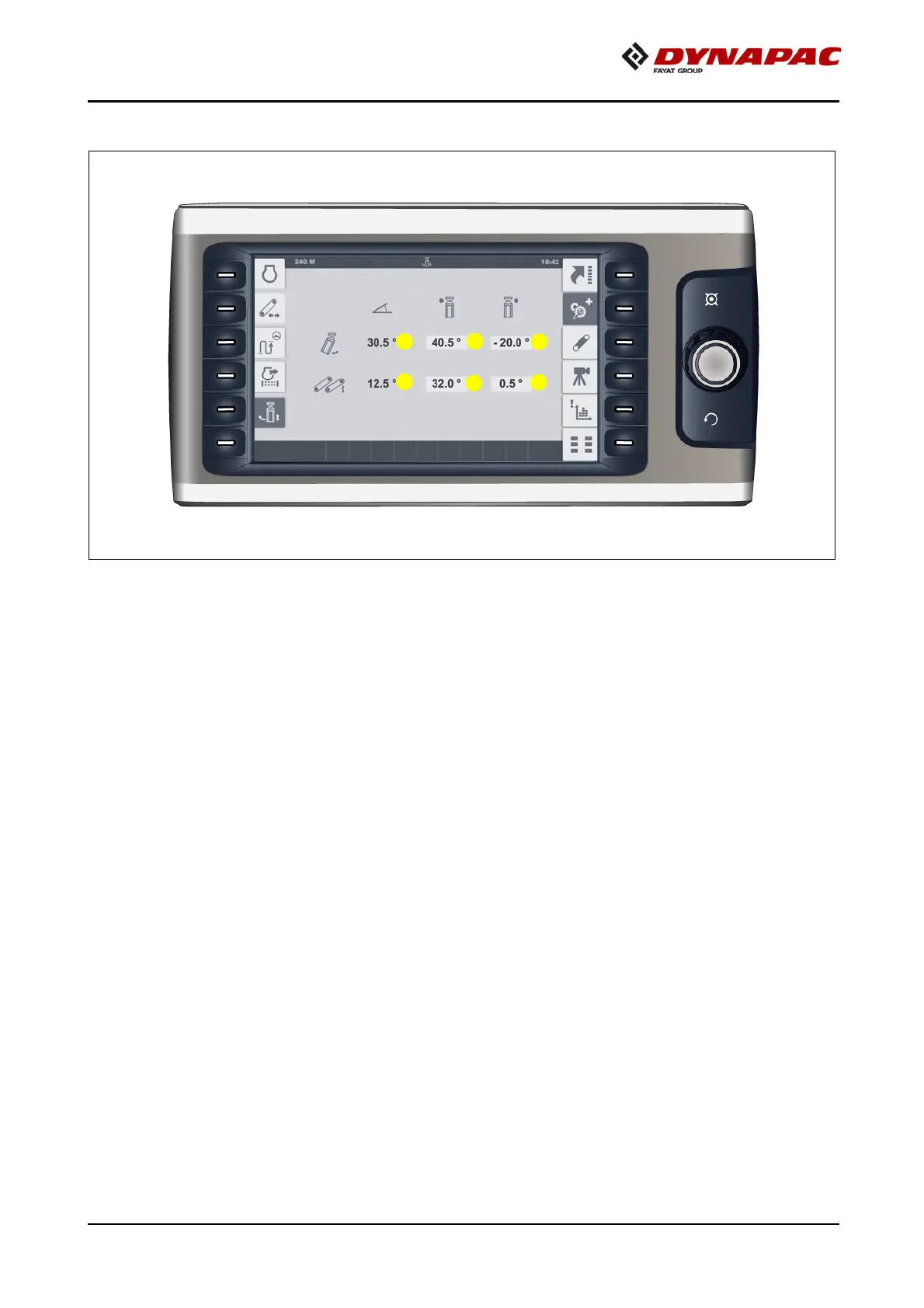

"Slewing assistant" display and setting menu (o)
Menu for checking and setting the following parameters:
- (1) Current slewing conveyor belt slope angle (x°)
- (2) Saved parameter - slewing conveyor belt slope "left" (x°)
- (3) Saved parameter - slewing conveyor belt slope "right" (x°)
A
Setting range 0°-27°
- (4) Current slewing conveyor belt slewing angle (x°)
- (5) Saved parameter - slewing conveyor belt slewing angle "left" (x°)
- (6) Saved parameter - slewing conveyor belt slewing angle"right" (x°)
A
Adjustment range +55° <--> 0° <--> -55°
5
1
3
6
4
2
