D 30 8

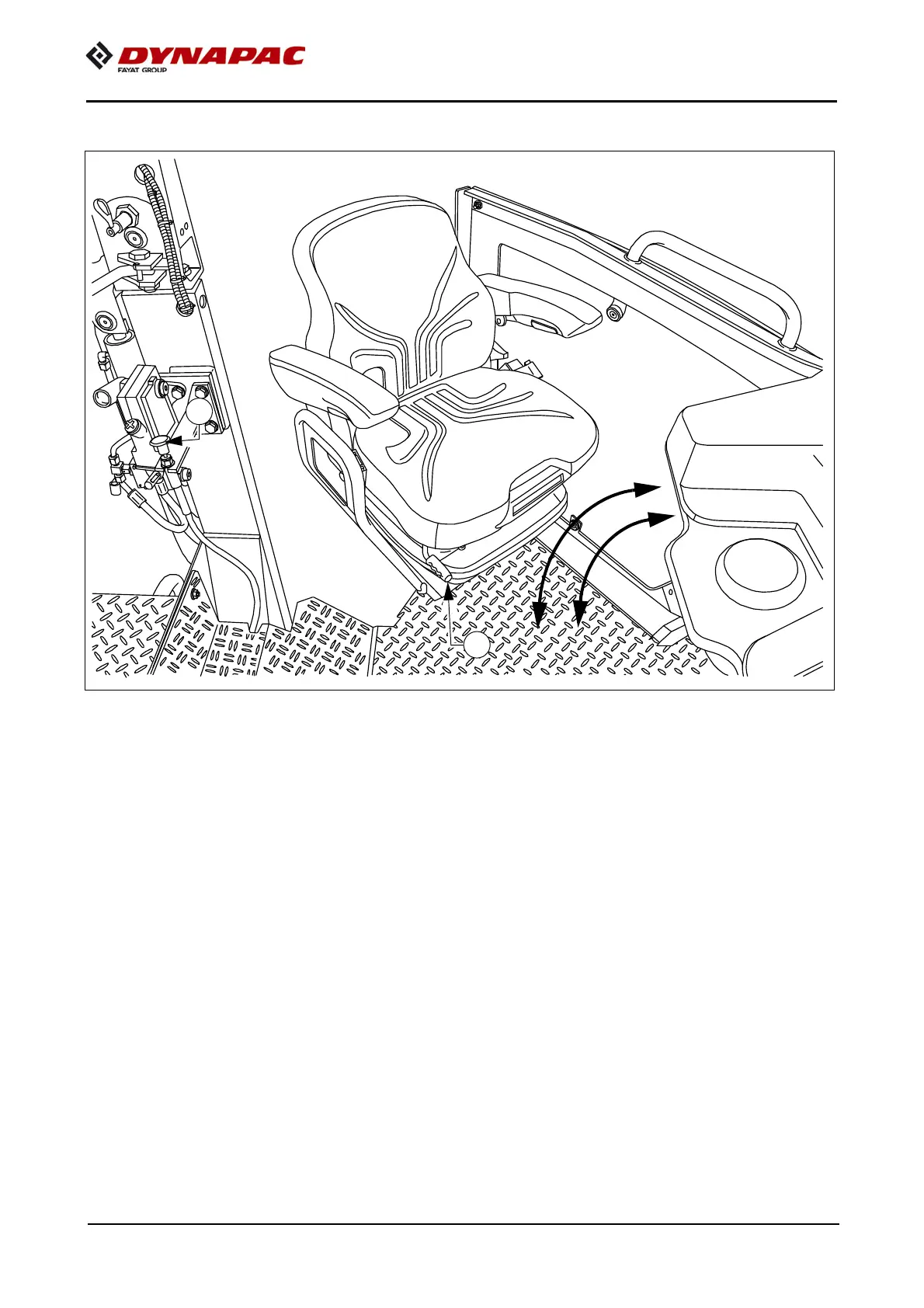

Seat bracket and seat console, swivelling
A
The left/right seat consoles can be pushed out beyond the outer edge of the vehicle.
This provides the driver with a better view of the paving area and material transfer.
Swivelling seat console:
m
Caution! Possible collision of parts"
Before swivelling the seat console out, the driver's seat must be moved to the fore-
most position and the side window (o) must be swivelled open.
- Release the latch (1) and swivel the seat console out to stop.
- To swivel the seat console in, release the latch (1) again.
A
The latch must audibly engage in both positions.
m
When swivelled out, the seat consoles increase the basic width of the vehicle.
m
Make sure it is latched properly!
f
Always choose the driver position on the side away from road traffic!
