E 5
Automatic steering unit operating
instructions
- When the automatic steering unit is
activated, the steering potentiometer
is deactivated. Steering is carried out
automatically via ski cable sensing.
- Activate the function on the operating
panel as necessary.
- The automatic steering unit can be
overridden by actuating the steering
potentiometer.

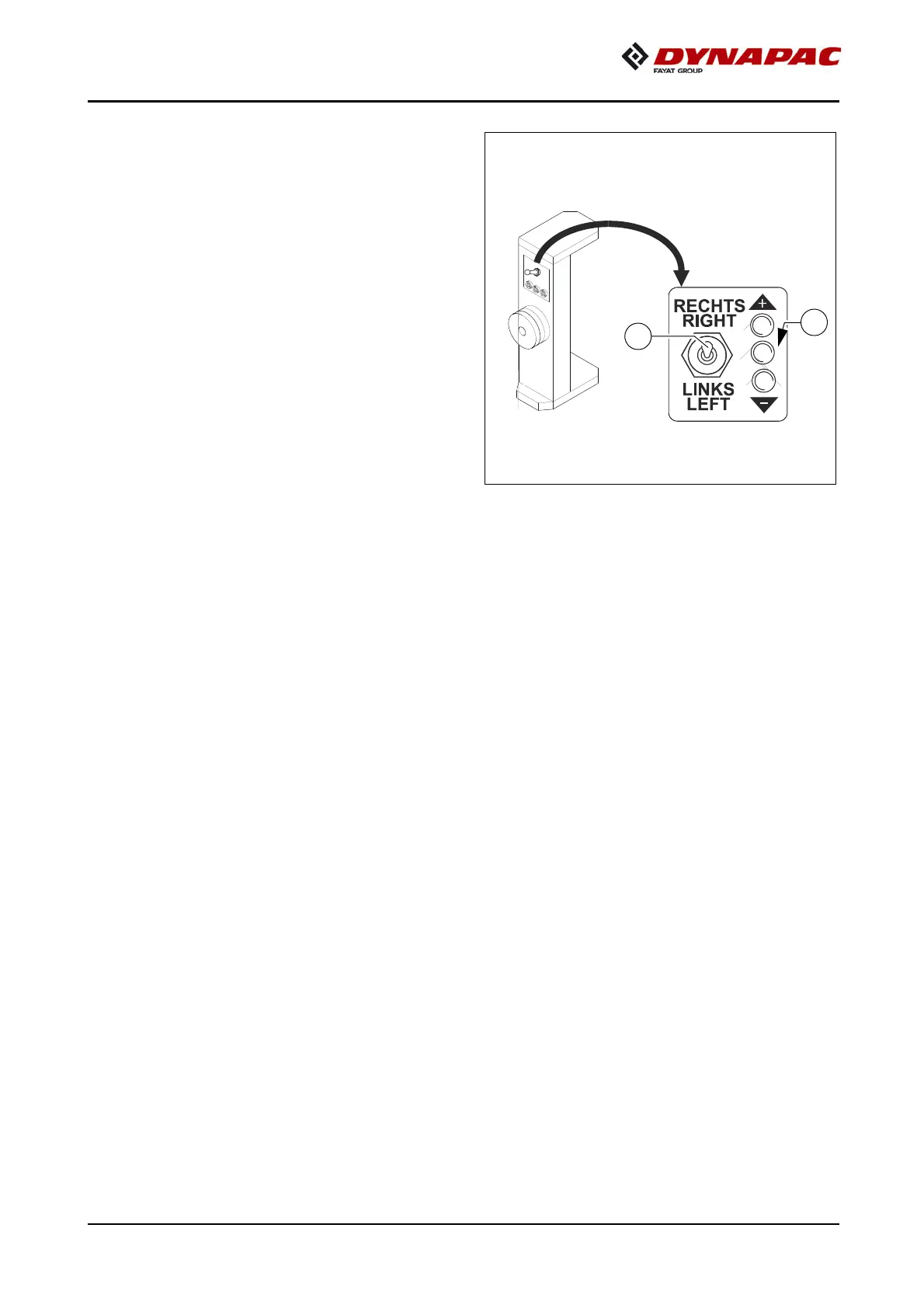

- The switch (1) is used to set the sens-
ing side:
- Right: Automatic steering unit on the
right side of the vehicle.
- Left: Automatic steering unit on the left side of the vehicle.
- The LEDs (2) indicate the distance from the reference.
- LED + / - : Distance from the reference too high / too low.
- Centre LED: Distance correct.
