Conveyor side shields (8)
A

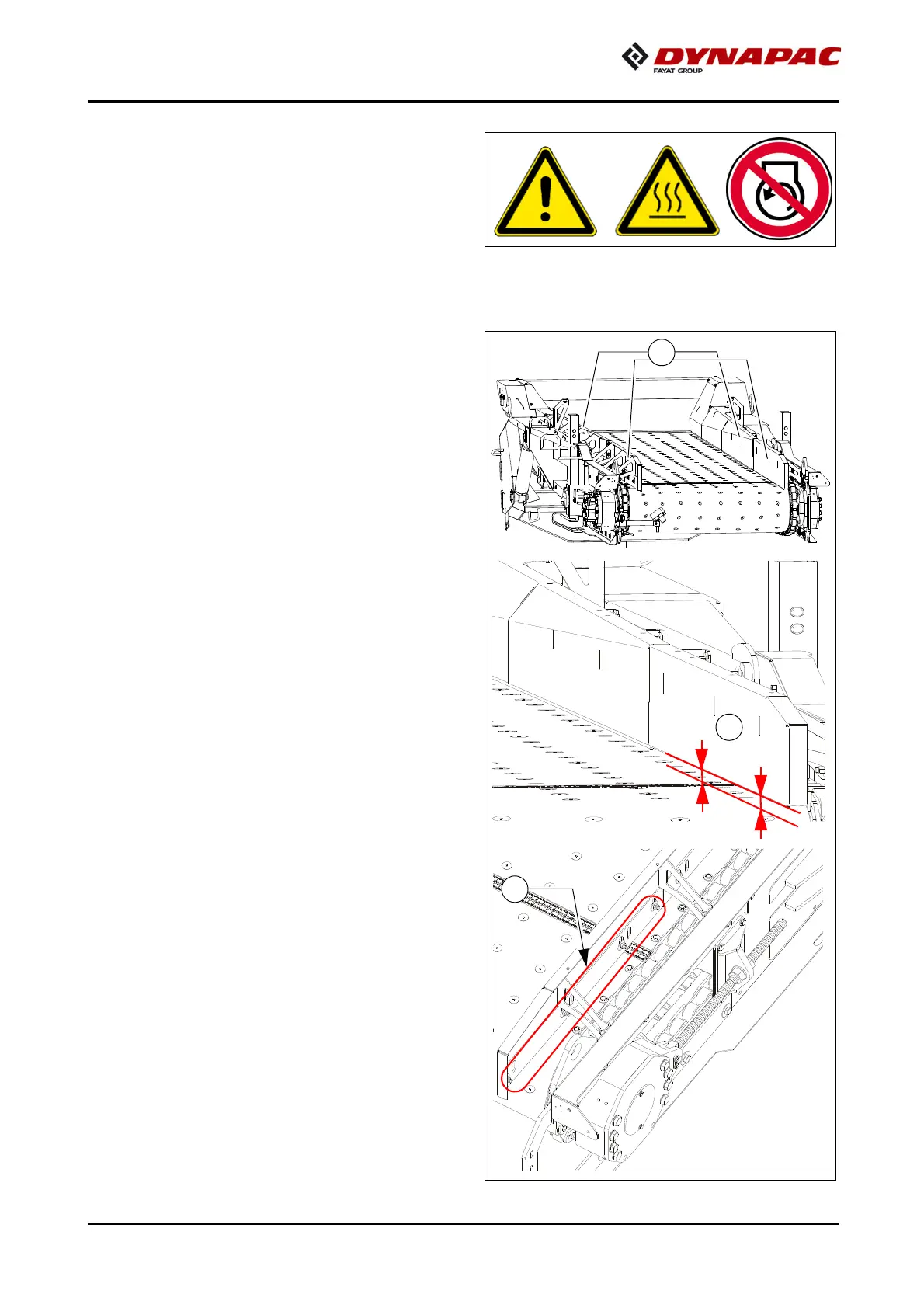

There are several side shields (A) on the
left and right along the conveyor belt. To
prevent leaks of paving material and
damage to the conveyor belt, the dis-
tance between the side shields and the conveyor belt must be checked and readjust-
ed if necessary.
m
The correct distance (B) between the
lower edge of the conveyor side shield
and the conveyor belt is 3 mm across the
entire length.
Adjust distance:
- To adjust the correct distance, first re-
move any adhered material and de-
posits.
- Loosen the mounting screws (C) of
the side shields and adjust the correct
distance.
- Lower the loosened shield on a suit-
able spacer measuring 3 mm thick.
- Retighten the mounting screws (C)
properly.
- Possibly remove the spacer.
