D 30 19
Surface course / binder course signal lamps (o)

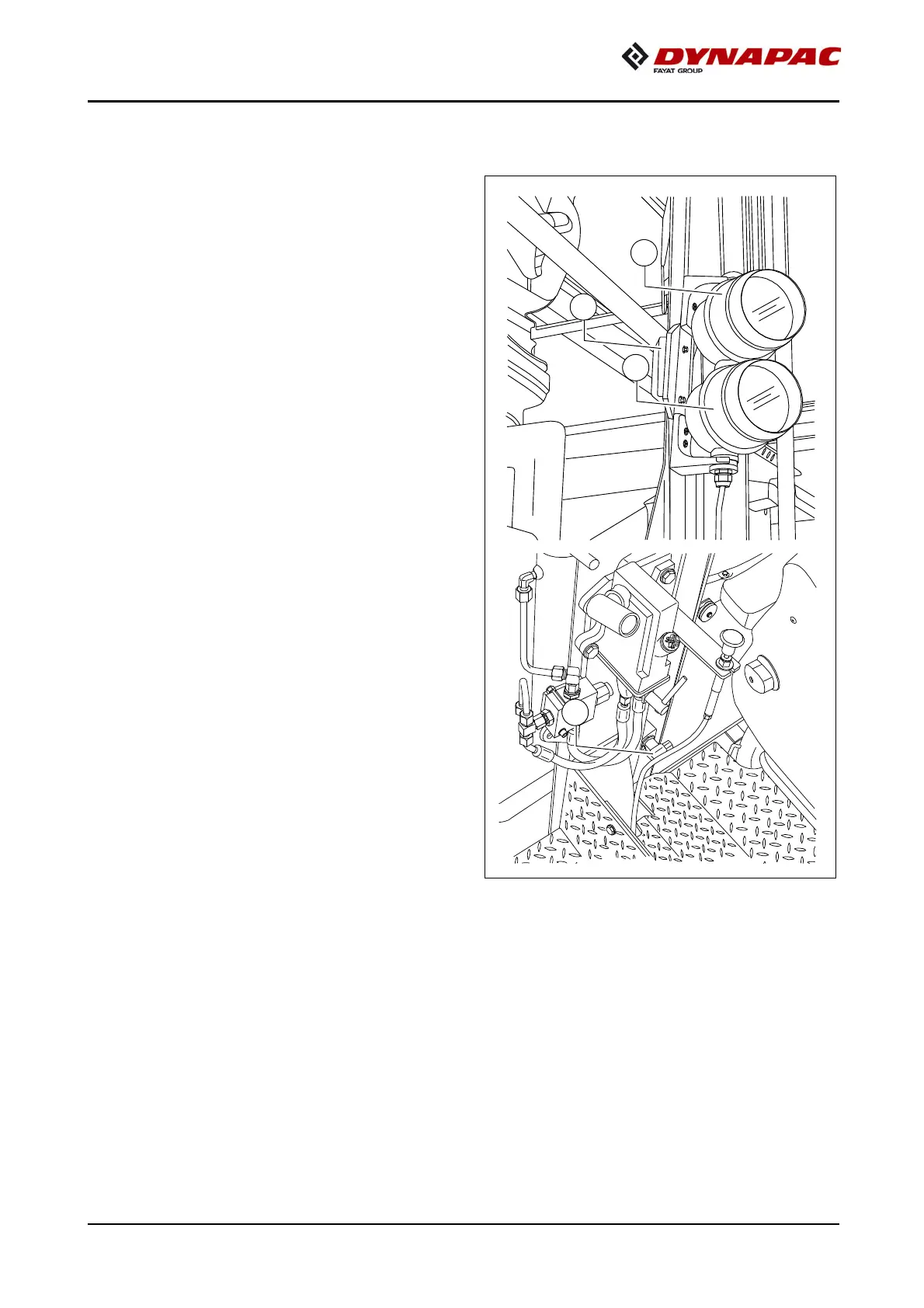

Two removable signal lamps for control-
ling the material flow are located at the
front and rear of the vehicle.
During compact asphalt paving, the sig-
nal lamps can be used to indicate to the
drivers of the material transporters and
the paver finisher whether surface
or binder course material is required
or the material with which the paver
finisher is fed.
- Red signal lamp (1) - surface course
- Green signal lamp (2) - binder course
- Insert the lamp unit in the intended
bracket (3); connect the connection
cable to the relevant socket (4).
A
The signal lamps are switched using the
operating panel.
