Dynapac MF2500CS - 7.2 Securing at the rear

C 11 25
7.2 Securing at the rear
m

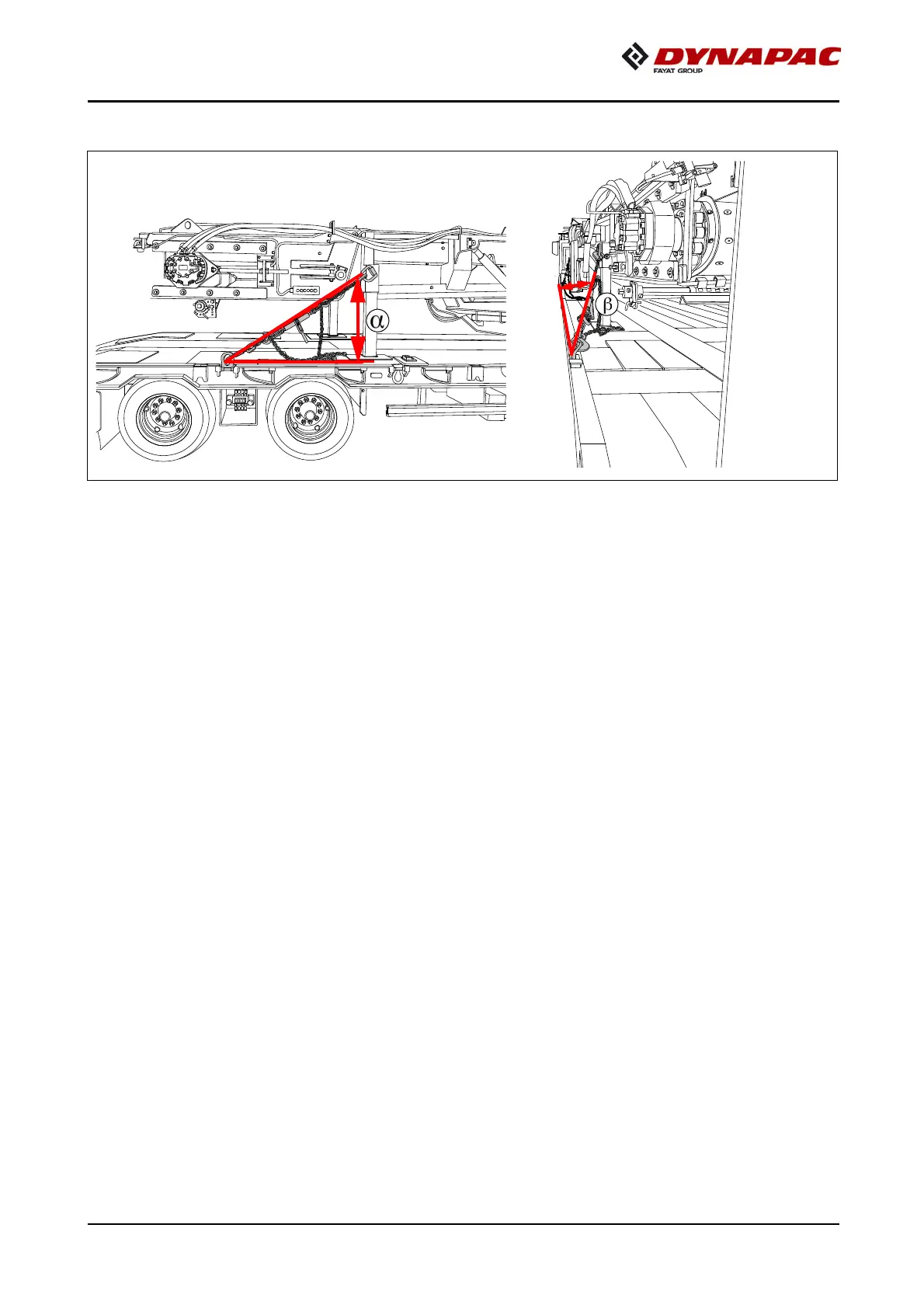

Diagonal lashing must be performed to secure the load counter to the direction of
travel. The lashing points on the vehicle and on the low-bed trailer must be used.
Fasten the lashing straps as shown.
m
The lashing angles should be: "ß" between 6°-55° and "a" between 20°-65°!
