Dynapac MF2500CS - Bottom plates (2)

F 71 9
Bottom plates (2)
m
Always use new bolts and nuts when in-
stalling new bottom plates!
- After removing the worn bottom
plates, the adhesions must be cleaned
from the contact surfaces of the chain
links and the nut seats.

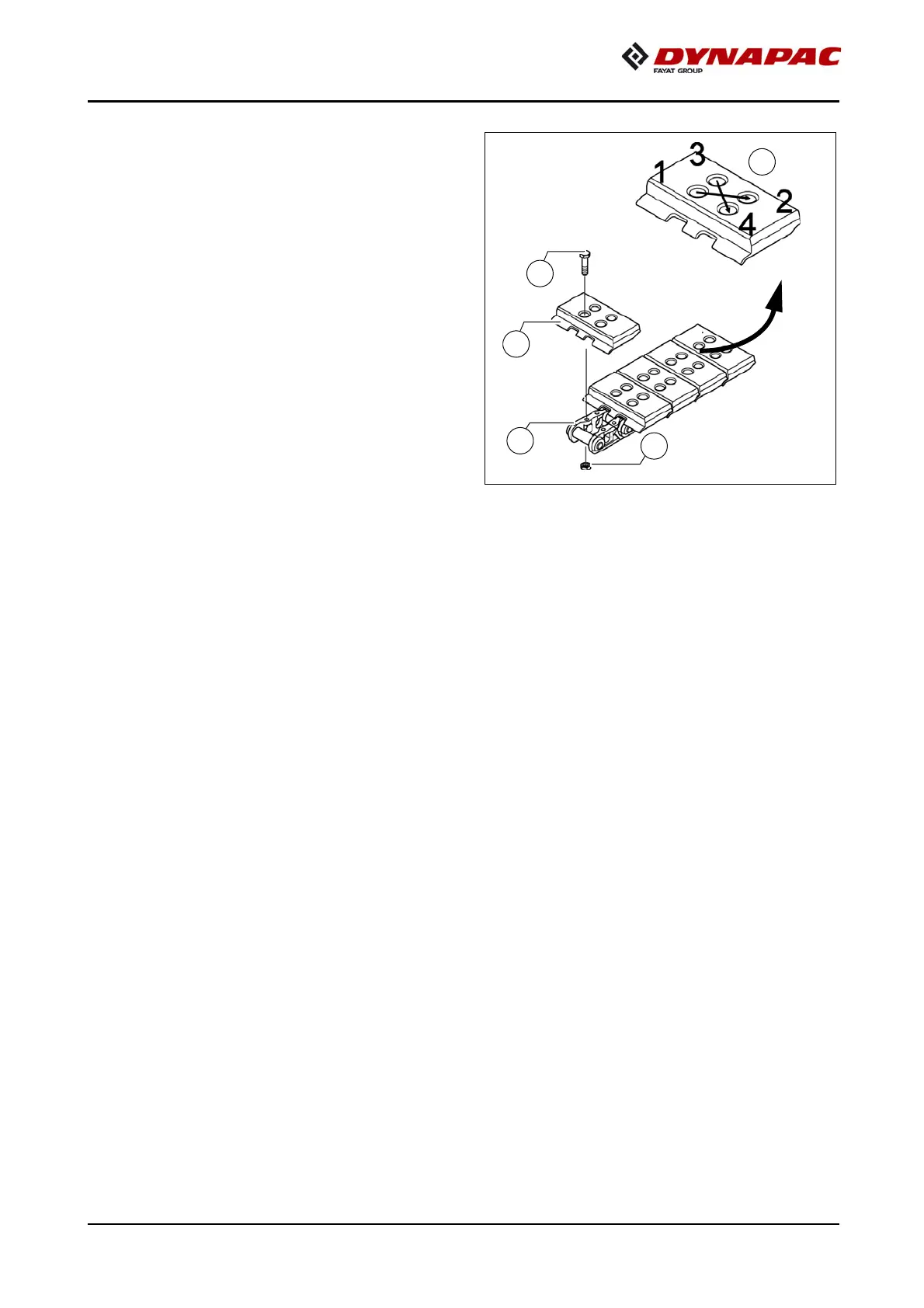

- Place the bottom plate with the front
edge (A) over the chain links' bolt
eye (B).
- Lubricate the threads and the contact
surfaces beneath the bolt heads with a
thin film of oil or grease.
- Insert the bolts (C) into the holes and
screw them into the nuts (D)
a few turns.
- Tighten the bolts without applying significant torque.
- Tighten the bolts diagonally (E) to the required torque 155 ± 8 Nm.
m
Check that each bolt has attained the full tightening torque!
A
E
B
C
D
