F 95 7

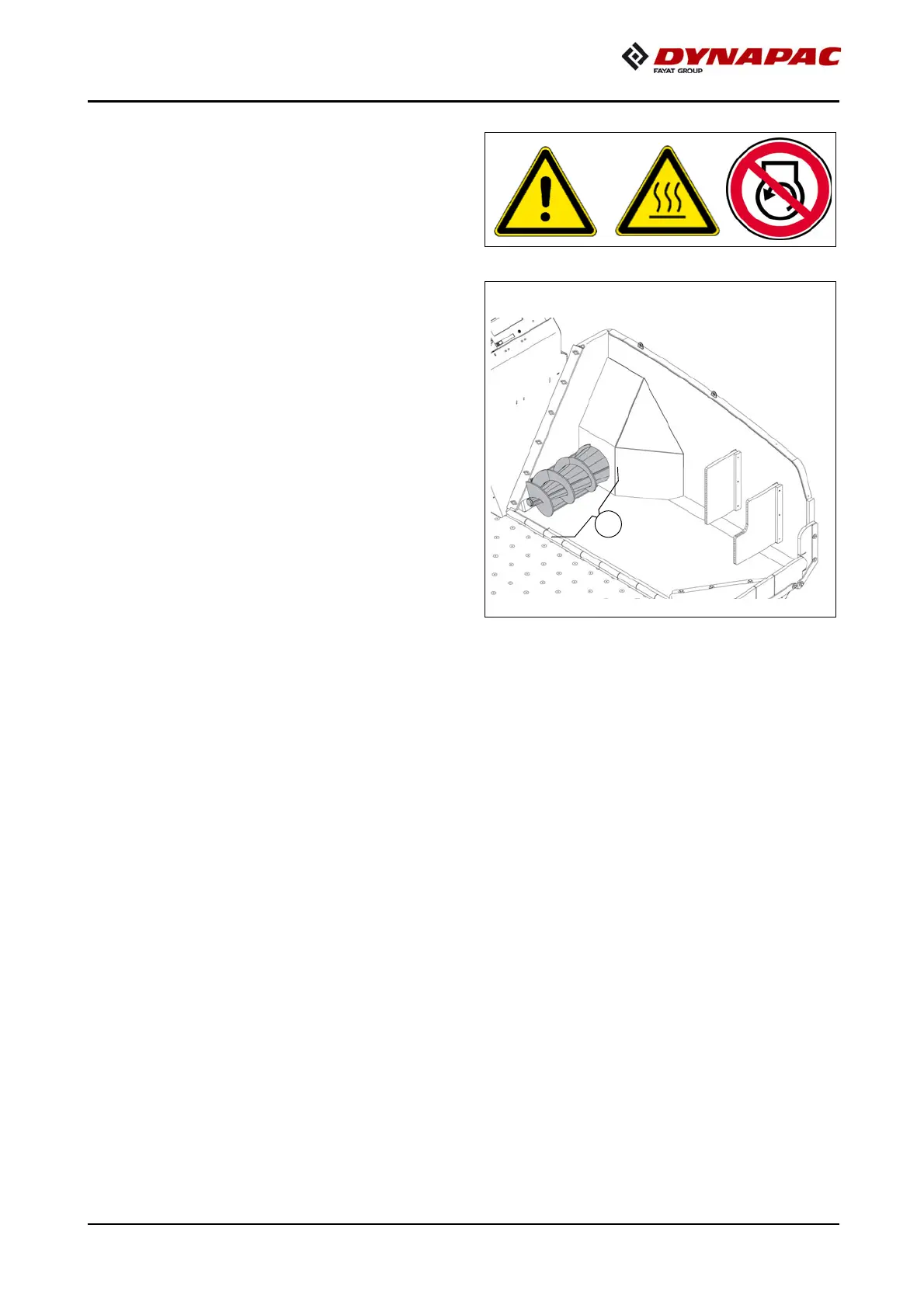

Hopper augers - check wear (3)
A
The auger must be
replaced if the sur
-
face of the auger
flight (A) becomes
sharp-edged, the di
ameter of the auger
is reduced or the plating is worn.
f
Risk of injury due
to sharp-edged parts!
A
594
