Operating panel console, swivelling and telescopic

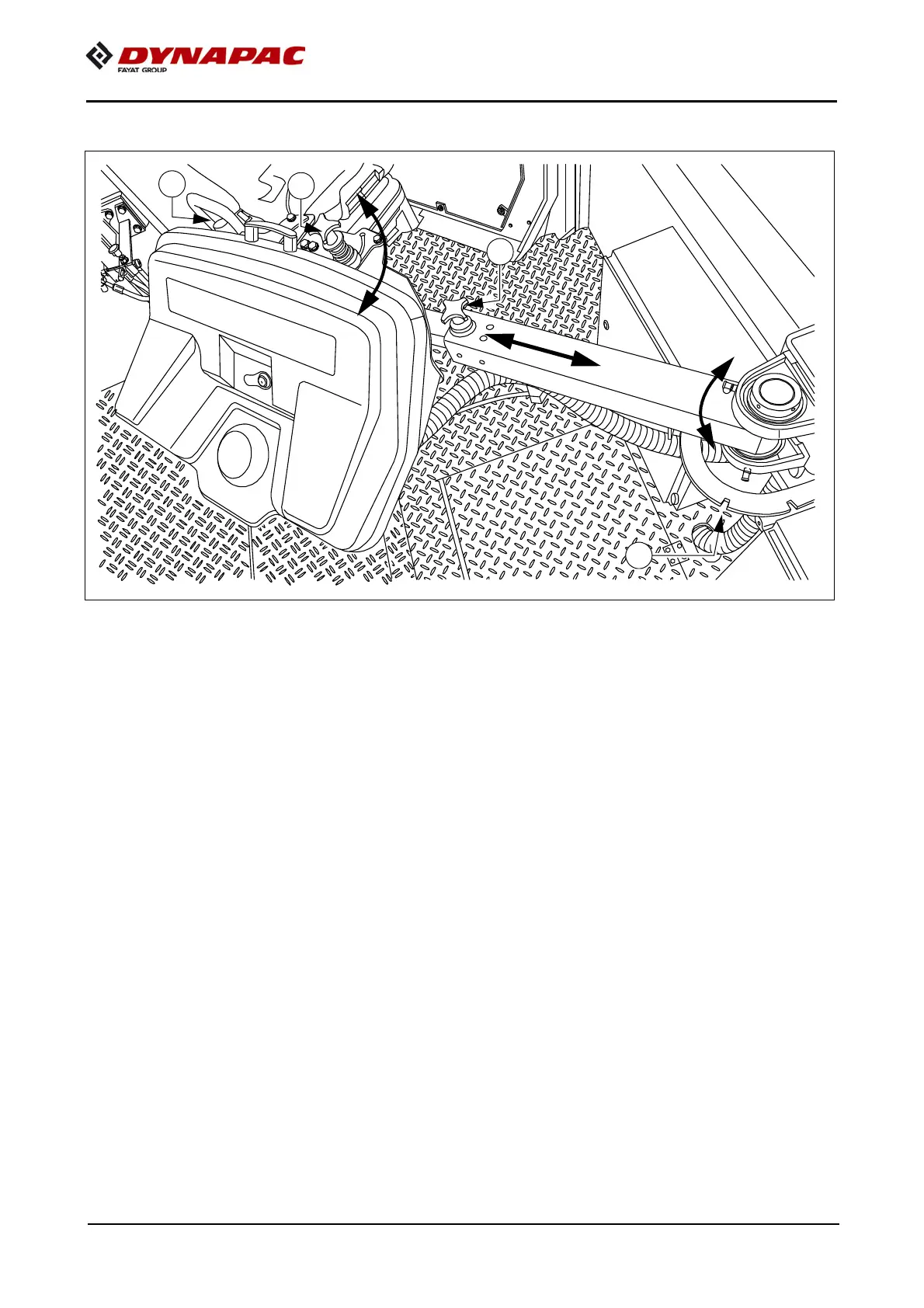

The operating panel console can be set-up for the various working positions.
Swivelling the operating panel:
- Release the latch (1), swivel the panel bracket to the desired position and allow to
engage in one of the detent positions (2).
Extending / shortening the operating panel bracket:
- Release the latch (3), set the panel bracket to the desired length and lock the latch.
Swivelling the operating panel console:
- Release the latch (4), swivel the panel console to the desired position and lock the
latch.
f
Only adjust the operating position whilst the vehicle is stationary!
m
Make sure it is latched properly!
